93
L
60
93
L
60
72

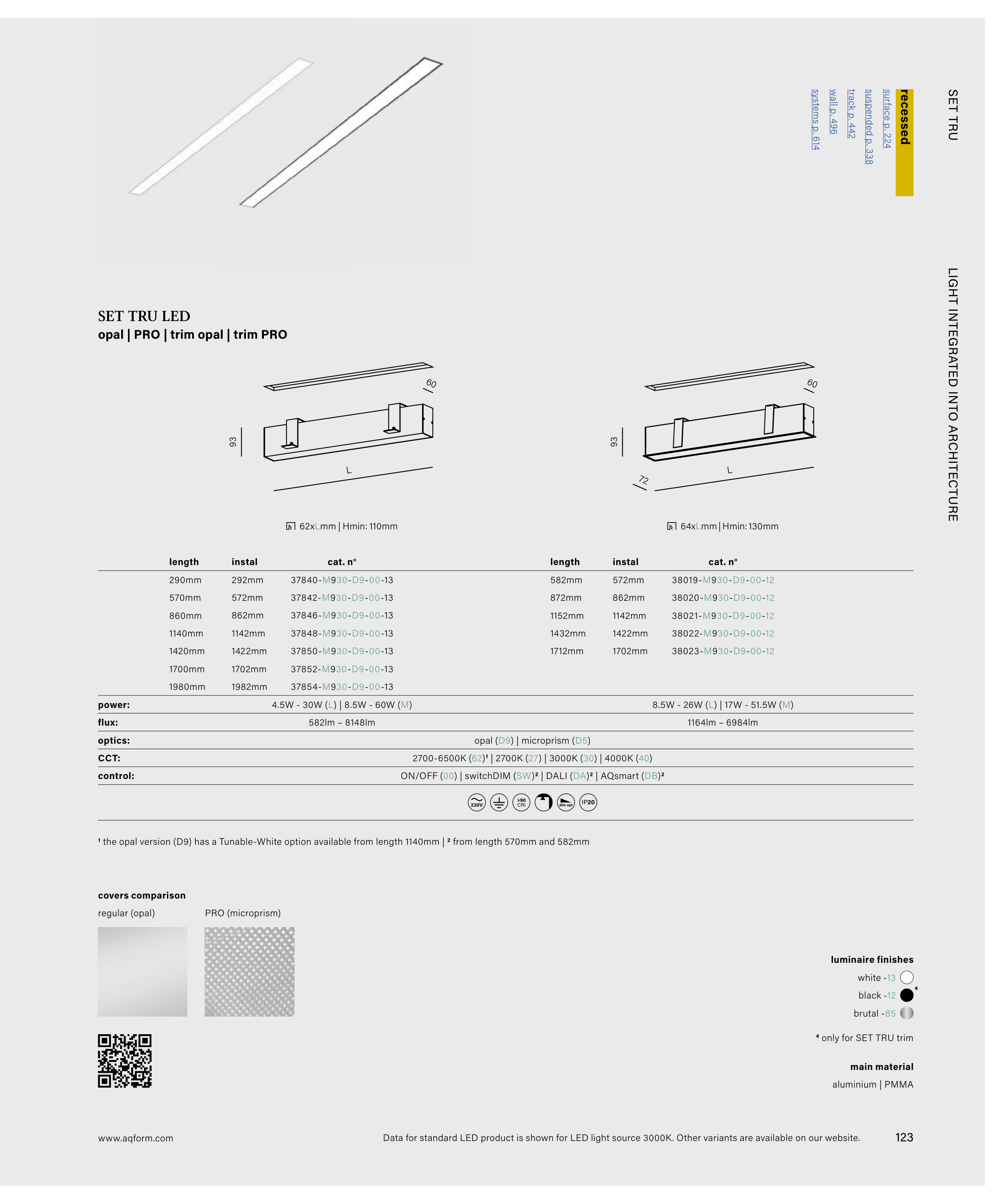

SET TRU LED
opal | PRO | trim opal | trim PRO
length
length
4.5W - 30W (L) | 8.5W - 60W (M)
582lm – 8148lm
8.5W - 26W (L) | 17W - 51.5W (M)
1164lm – 6984lm
2700-6500K (62)1 | 2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | switchDIM (SW)2 | DALI (DA)2 | AQsmart (DB)2
power:
flux:
optics:
CCT:
control:
opal (D9) | microprism (D5)
covers comparison
regular (opal)
PRO (microprism)
1 the opal version (D9) has a Tunable-White option available from length 1140mm | 2 from length 570mm and 582mm
4 only for SET TRU trim
37840-M930-D9-00-13
37842-M930-D9-00-13
37846-M930-D9-00-13
37848-M930-D9-00-13
37850-M930-D9-00-13
37852-M930-D9-00-13
37854-M930-D9-00-13
38019-M930-D9-00-12
38020-M930-D9-00-12
38021-M930-D9-00-12
38022-M930-D9-00-12
38023-M930-D9-00-12
290mm
570mm
860mm
1140mm
1420mm
1700mm
1980mm
582mm
872mm
1152mm
1432mm
1712mm
cat. n°
cat. n°
4
230V
CRI
>90
dim opt
IP20
recessed
surface p. 224
suspended p. 338
track p. 442
wall p. 496
systems p. 614
SET TRU
62xLmm | Hmin: 110mm
64xLmm | Hmin: 130mm
instal
instal
292mm
572mm
862mm
1142mm
1422mm
1702mm
1982mm
572mm
862mm
1142mm
1422mm
1702mm
white -13
black -12
luminaire finishes
aluminium | PMMA
main material
brutal -85
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
123
LIGHT INTEGRATED INTO ARCHITECTURE
