L
90
51
cat. n°

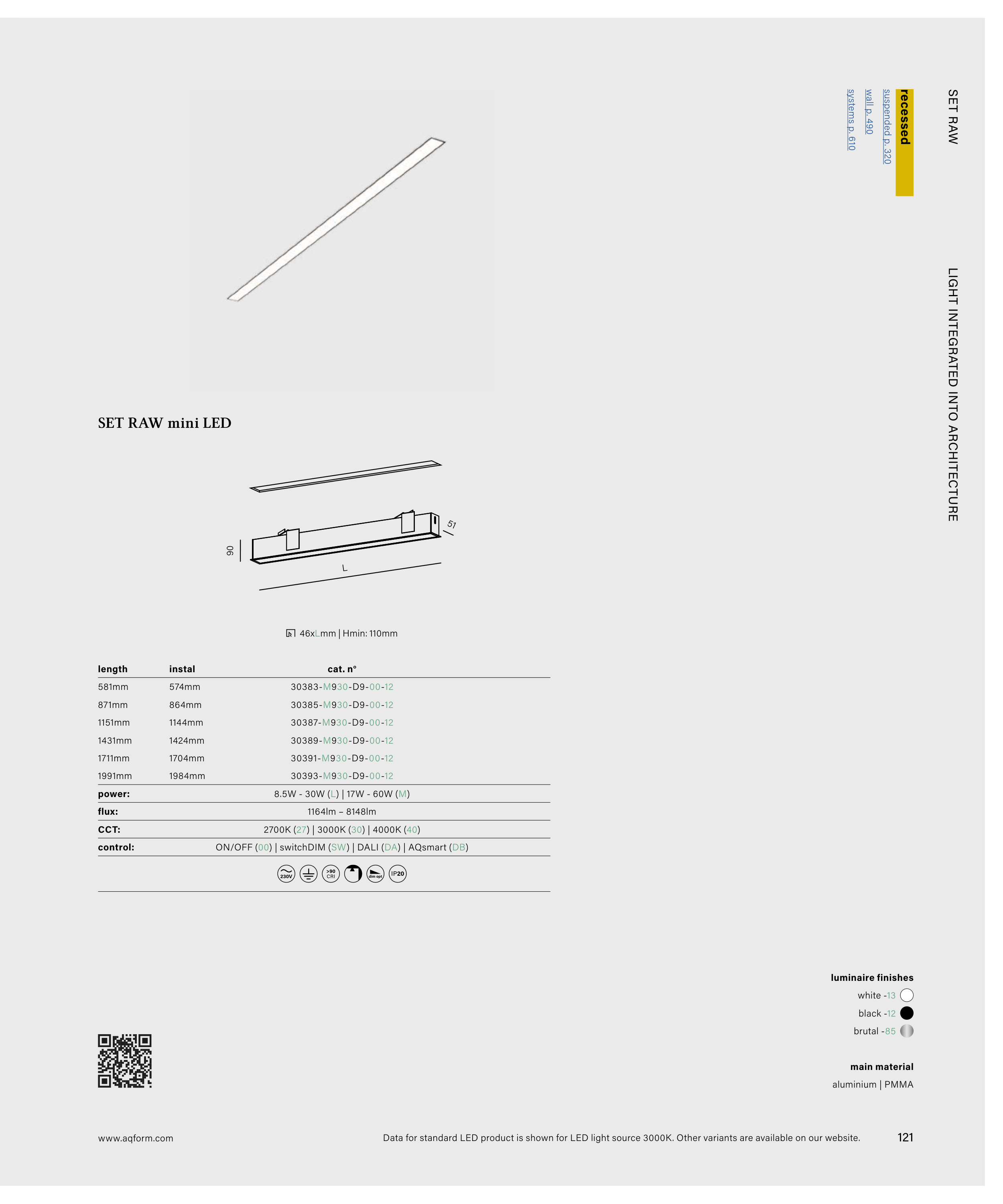

SET RAW mini LED
length
8.5W - 30W (L) | 17W - 60W (M)
1164lm – 8148lm
2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | switchDIM (SW) | DALI (DA) | AQsmart (DB)
power:
flux:
CCT:
control:
230V
CRI
>90
dim opt
IP20
30383-M930-D9-00-12
30385-M930-D9-00-12
30387-M930-D9-00-12
30389-M930-D9-00-12
30391-M930-D9-00-12
30393-M930-D9-00-12
581mm
871mm
1151mm
1431mm
1711mm
1991mm
recessed
suspended p. 320
wall p. 490
systems p. 610
SET RAW
46xLmm | Hmin: 110mm
instal
574mm
864mm
1144mm
1424mm
1704mm
1984mm
white -13
black -12
luminaire finishes
aluminium | PMMA
main material
brutal -85
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
121
