430
90
51
90
51
890
1800
L
90
51

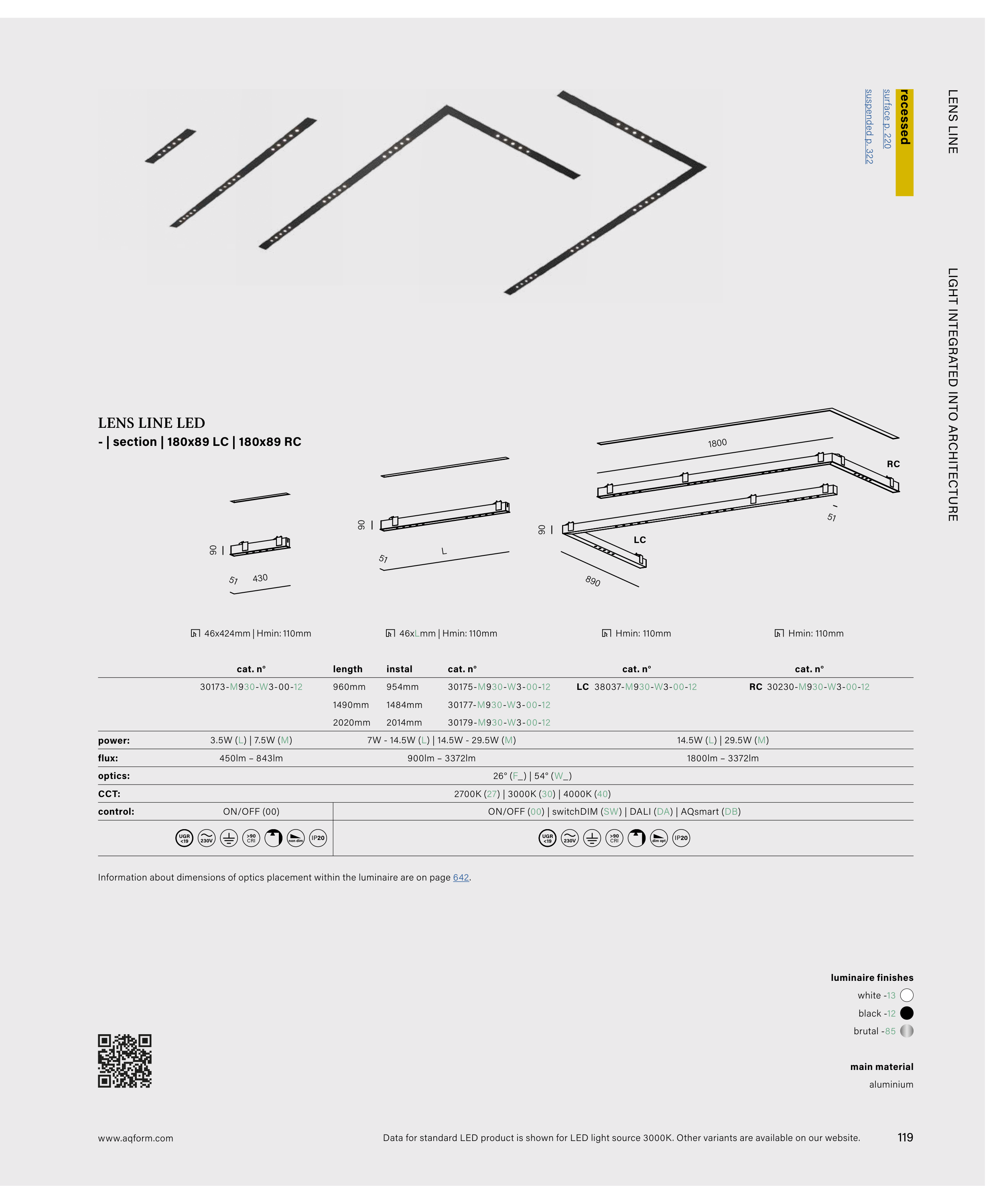

LENS LINE LED
- | section | 180x89 LC | 180x89 RC
aluminium
3.5W (L) | 7.5W (M)
450lm – 843lm
14.5W (L) | 29.5W (M)
1800lm – 3372lm
7W - 14.5W (L) | 14.5W - 29.5W (M)
900lm – 3372lm
2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | switchDIM (SW) | DALI (DA) | AQsmart (DB)
ON/OFF (00)
power:
flux:
optics:
CCT:
control:
cat. n°
cat. n°
cat. n°
cat. n°
230V
230V
CRI
>90
CRI
>90
dim opt
non dim
IP20
IP20
length
26° (F_) | 54° (W_)
LC
RC
main material
30173-M930-W3-00-12
30230-M930-W3-00-12
38037-M930-W3-00-12
30175-M930-W3-00-12
30177-M930-W3-00-12
30179-M930-W3-00-12
960mm
1490mm
2020mm
LC
RC
recessed
surface p. 220
suspended p. 322
LENS LINE
46x424mm | Hmin: 110mm
Hmin: 110mm
Hmin: 110mm
instal
954mm
1484mm
2014mm
46xLmm | Hmin: 110mm
white -13
black -12
luminaire finishes
brutal -85
Information about dimensions of optics placement within the luminaire are on page 642.
UGR
<19
UGR
<19
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
LIGHT INTEGRATED INTO ARCHITECTURE
www.aqform.com
