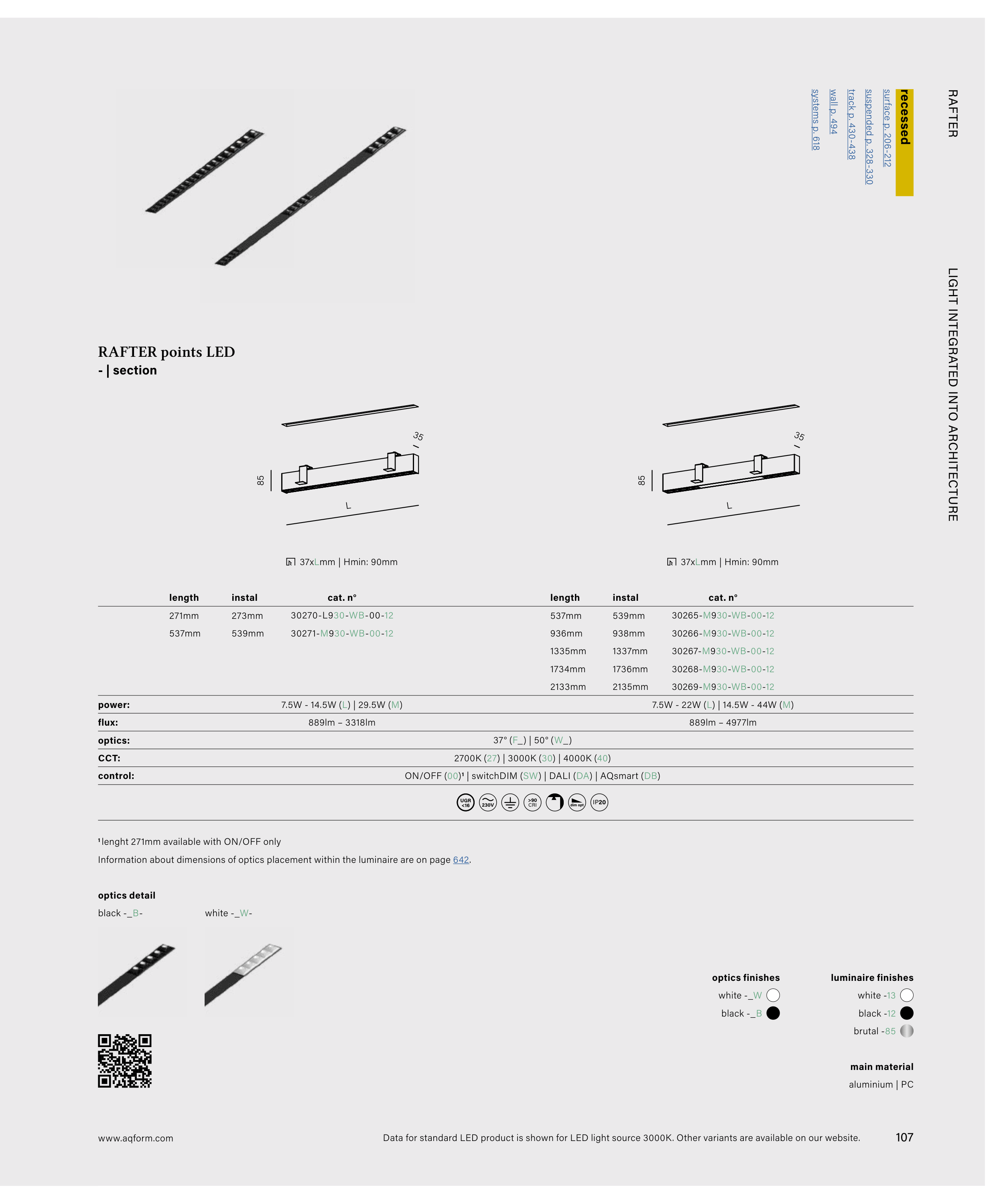

RAFTER
37xLmm | Hmin: 90mm
37xLmm | Hmin: 90mm
L
85
35
L
85
35
cat. n°
cat. n°
white -13
black -12
luminaire finishes
aluminium | PC
RAFTER points LED
- | section
length
instal
length
instal
7.5W - 14.5W (L) | 29.5W (M)
889lm – 3318lm
7.5W - 22W (L) | 14.5W - 44W (M)
889lm – 4977lm
2700K (27) | 3000K (30) | 4000K (40)
power:
flux:
optics:
CCT:
control:
230V
UGR
<16
CRI
>90
dim opt
IP20
white -_W
black -_B
optics finishes
main material
37° (F_) | 50° (W_)
ON/OFF (00)1 | switchDIM (SW) | DALI (DA) | AQsmart (DB)
30270-L930-WB-00-12
30271-M930-WB-00-12
30265-M930-WB-00-12
30266-M930-WB-00-12
30267-M930-WB-00-12
30268-M930-WB-00-12
30269-M930-WB-00-12
271mm
537mm
273mm
539mm
537mm
936mm
1335mm
1734mm
2133mm
539mm
938mm
1337mm
1736mm
2135mm
1 lenght 271mm available with ON/OFF only
optics detail
black -_B-
white -_W-
brutal -85
Information about dimensions of optics placement within the luminaire are on page 642.
recessed
surface p. 206-212
suspended p. 328-330
track p. 430-438
wall p. 494
systems p. 618
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
