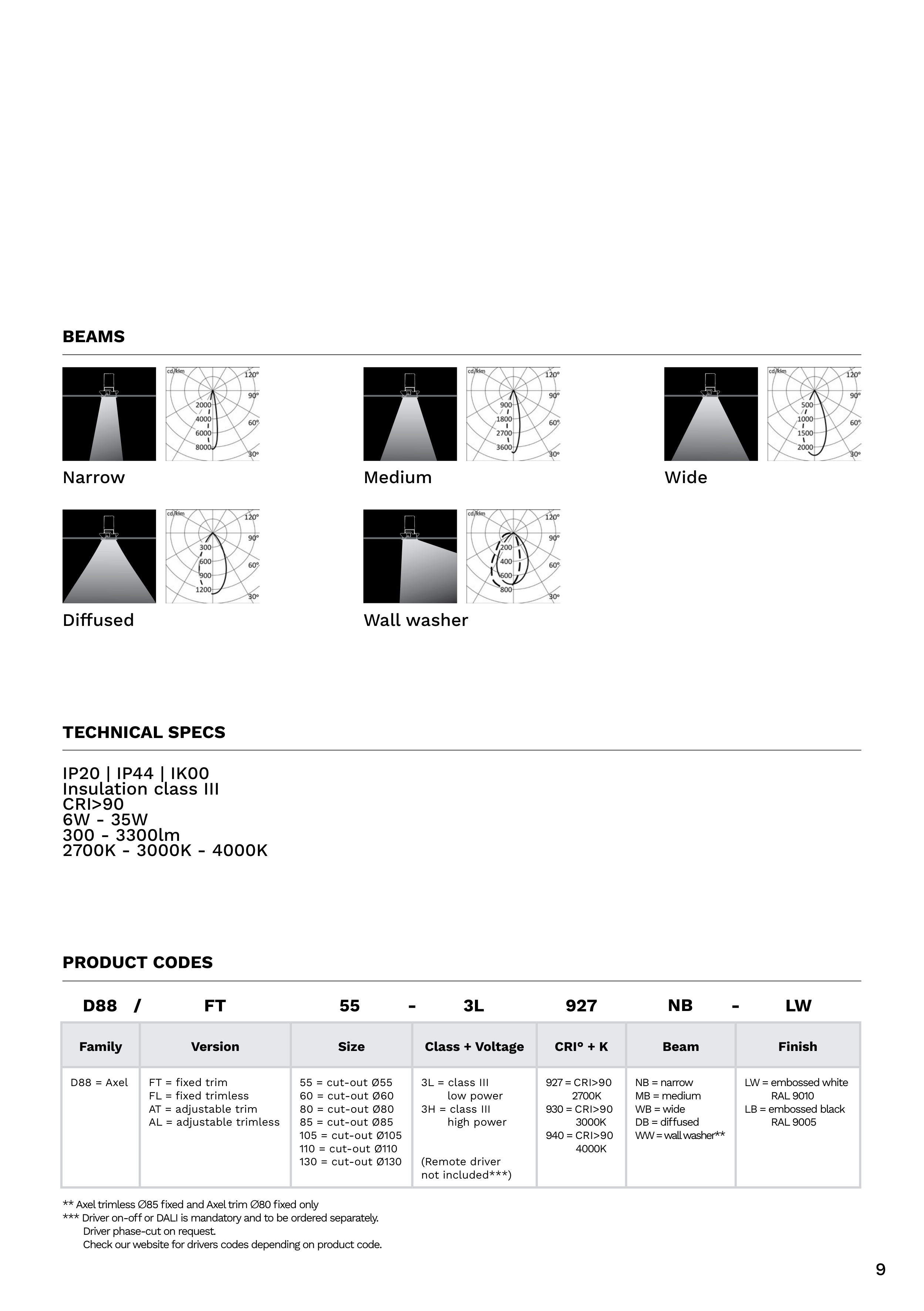

BEAMS
Narrow
Diffused
Medium
Wall washer
Wide
IP20 | IP44 | IK00
Insulation class III
CRI>90
6W - 35W
300 - 3300lm
2700K - 3000K - 4000K
TECHNICAL SPECS
PRODUCT CODES
Family
Version
Size
Class + Voltage
CRI° + K
Beam
Finish
D88 = Axel
FT = fixed trim
FL = fixed trimless
AT = adjustable trim
AL = adjustable trimless
55 = cut-out Ø55
60 = cut-out Ø60
80 = cut-out Ø80
85 = cut-out Ø85
105 = cut-out Ø105
110 = cut-out Ø110
130 = cut-out Ø130
3L = class III
low power
3H = class III
high power
(Remote driver
not included***)
927 = CRI>90
2700K
930 = CRI>90
3000K
940 = CRI>90
4000K
NB = narrow
MB = medium
WB = wide
DB = diffused
WW = wall washer**
LW = embossed white
RAL 9010
LB = embossed black
RAL 9005
FT
D88
55
3L
927
NB
LW
/
-
-
** Axel trimless Ø85 fixed and Axel trim Ø80 fixed only
*** Driver on-off or DALI is mandatory and to be ordered separately.
Driver phase-cut on request.
Check our website for drivers codes depending on product code.
