ULTERIORI COMPOSIZIONI A RICHIESTA (VEDI DA PAGINA 300 A PAGINA 309)
ADDITIONAL COMPOSITIONS ON DEMAND (SEE PAGES 300 TO 309)
Weitere Compositionen auf Anfrage (Seiten 300 bis 309)

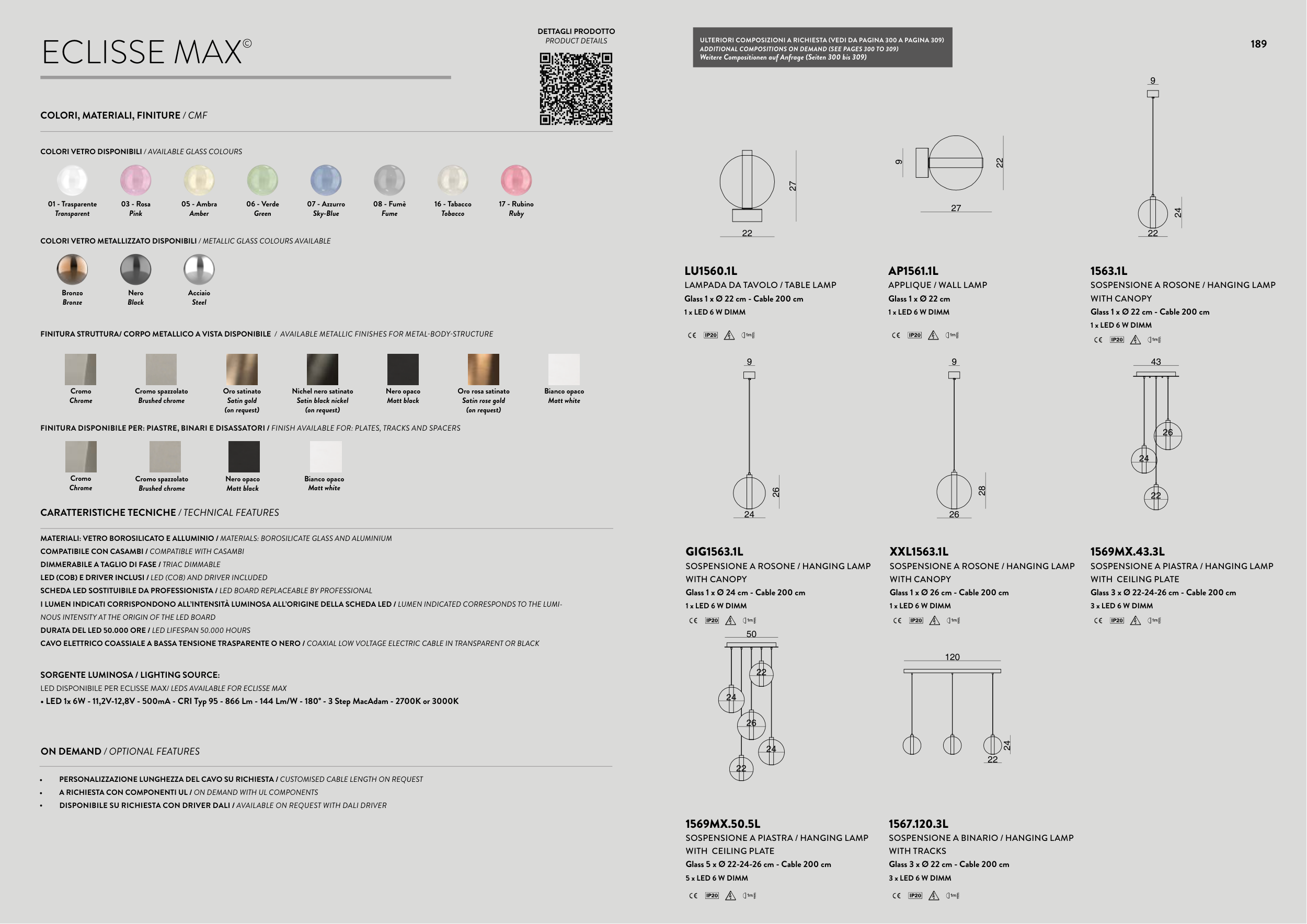

ECLISSE MAX
©
COLORI, MATERIALI, FINITURE / CMF
COLORI VETRO DISPONIBILI / AVAILABLE GLASS COLOURS
01 - Trasparente
Transparent
03 - Rosa
Pink
05 - Ambra
Amber
06 - Verde
Green
07 - Azzurro
Sky-Blue
08 - Fumè
Fume
16 - Tabacco
Tobacco
17 - Rubino
Ruby
COLORI VETRO METALLIZZATO DISPONIBILI / METALLIC GLASS COLOURS AVAILABLE
Bronzo
Bronze
Nero
Black
Acciaio
Steel
FINITURA STRUTTURA/ CORPO METALLICO A VISTA DISPONIBILE / AVAILABLE METALLIC FINISHES FOR METAL-BODY-STRUCTURE
Cromo
Chrome
Cromo spazzolato
Brushed chrome
Oro satinato
Satin gold
(on request)
Nichel nero satinato
Satin black nickel
(on request)
Nero opaco
Matt black
Oro rosa satinato
Satin rose gold
(on request)
Bianco opaco
Matt white
CARATTERISTICHE TECNICHE / TECHNICAL FEATURES
MATERIALI: VETRO BOROSILICATO E ALLUMINIO / MATERIALS: BOROSILICATE GLASS AND ALUMINIUM
COMPATIBILE CON CASAMBI / COMPATIBLE WITH CASAMBI
DIMMERABILE A TAGLIO DI FASE / TRIAC DIMMABLE
LED (COB) E DRIVER INCLUSI / LED (COB) AND DRIVER INCLUDED
SCHEDA LED SOSTITUIBILE DA PROFESSIONISTA / LED BOARD REPLACEABLE BY PROFESSIONAL
I LUMEN INDICATI CORRISPONDONO ALL’INTENSITÀ LUMINOSA ALL’ORIGINE DELLA SCHEDA LED / LUMEN INDICATED CORRESPONDS TO THE LUMI-
NOUS INTENSITY AT THE ORIGIN OF THE LED BOARD
DURATA DEL LED 50.000 ORE / LED LIFESPAN 50.000 HOURS
CAVO ELETTRICO COASSIALE A BASSA TENSIONE TRASPARENTE O NERO / COAXIAL LOW VOLTAGE ELECTRIC CABLE IN TRANSPARENT OR BLACK
SORGENTE LUMINOSA / LIGHTING SOURCE:
LED DISPONIBILE PER ECLISSE MAX/ LEDS AVAILABLE FOR ECLISSE MAX
• LED 1x 6W - 11,2V-12,8V - 500mA - CRI Typ 95 - 866 Lm - 144 Lm/W - 180° - 3 Step MacAdam - 2700K or 3000K
LU1560.1L
LAMPADA DA TAVOLO / TABLE LAMP
Glass 1 x Ø 22 cm - Cable 200 cm
1 x LED 6 W DIMM
22
27
AP1561.1L
APPLIQUE / WALL LAMP
Glass 1 x Ø 22 cm
1 x LED 6 W DIMM
22
27
9
1563.1L
SOSPENSIONE A ROSONE / HANGING LAMP
WITH CANOPY
Glass 1 x Ø 22 cm - Cable 200 cm
1 x LED 6 W DIMM
24
22
9
GIG1563.1L
SOSPENSIONE A ROSONE / HANGING LAMP
WITH CANOPY
Glass 1 x Ø 24 cm - Cable 200 cm
1 x LED 6 W DIMM
26
24
9
XXL1563.1L
SOSPENSIONE A ROSONE / HANGING LAMP
WITH CANOPY
Glass 1 x Ø 26 cm - Cable 200 cm
1 x LED 6 W DIMM
28
26
9
1569MX.43.3L
SOSPENSIONE A PIASTRA / HANGING LAMP
WITH CEILING PLATE
Glass 3 x Ø 22-24-26 cm - Cable 200 cm
3 x LED 6 W DIMM
43
22
24
26
1569MX.50.5L
SOSPENSIONE A PIASTRA / HANGING LAMP
WITH CEILING PLATE
Glass 5 x Ø 22-24-26 cm - Cable 200 cm
5 x LED 6 W DIMM
50
22
24
26
24
22
1567.120.3L
SOSPENSIONE A BINARIO / HANGING LAMP
WITH TRACKS
Glass 3 x Ø 22 cm - Cable 200 cm
3 x LED 6 W DIMM
24
22
120
Cromo
Chrome
Cromo spazzolato
Brushed chrome
Nero opaco
Matt black
Bianco opaco
Matt white
FINITURA DISPONIBILE PER: PIASTRE, BINARI E DISASSATORI / FINISH AVAILABLE FOR: PLATES, TRACKS AND SPACERS
•
PERSONALIZZAZIONE LUNGHEZZA DEL CAVO SU RICHIESTA / CUSTOMISED CABLE LENGTH ON REQUEST
•
A RICHIESTA CON COMPONENTI UL / ON DEMAND WITH UL COMPONENTS
•
DISPONIBILE SU RICHIESTA CON DRIVER DALI / AVAILABLE ON REQUEST WITH DALI DRIVER
ON DEMAND / OPTIONAL FEATURES
DETTAGLI PRODOTTO
PRODUCT DETAILS
189
