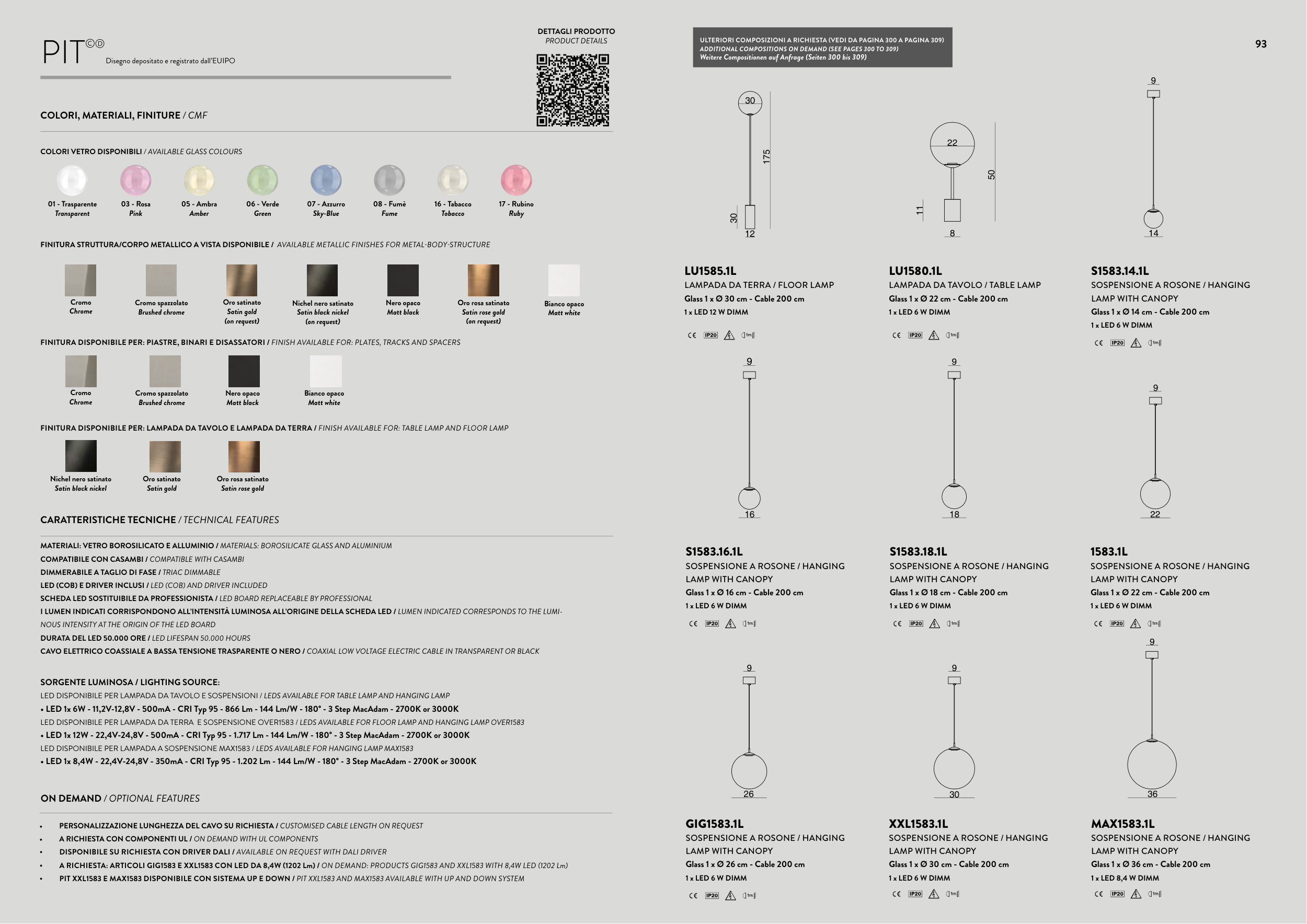

PIT
©
Disegno depositato e registrato dall’EUIPO
COLORI, MATERIALI, FINITURE / CMF
COLORI VETRO DISPONIBILI / AVAILABLE GLASS COLOURS
01 - Trasparente
Transparent
03 - Rosa
Pink
05 - Ambra
Amber
06 - Verde
Green
07 - Azzurro
Sky-Blue
08 - Fumè
Fume
16 - Tabacco
Tobacco
17 - Rubino
Ruby
FINITURA STRUTTURA/CORPO METALLICO A VISTA DISPONIBILE / AVAILABLE METALLIC FINISHES FOR METAL-BODY-STRUCTURE
Cromo
Chrome
Cromo spazzolato
Brushed chrome
Oro satinato
Satin gold
(on request)
Nichel nero satinato
Satin black nickel
(on request)
Nero opaco
Matt black
Oro rosa satinato
Satin rose gold
(on request)
Bianco opaco
Matt white
CARATTERISTICHE TECNICHE / TECHNICAL FEATURES
MATERIALI: VETRO BOROSILICATO E ALLUMINIO / MATERIALS: BOROSILICATE GLASS AND ALUMINIUM
COMPATIBILE CON CASAMBI / COMPATIBLE WITH CASAMBI
DIMMERABILE A TAGLIO DI FASE / TRIAC DIMMABLE
LED (COB) E DRIVER INCLUSI / LED (COB) AND DRIVER INCLUDED
SCHEDA LED SOSTITUIBILE DA PROFESSIONISTA / LED BOARD REPLACEABLE BY PROFESSIONAL
I LUMEN INDICATI CORRISPONDONO ALL’INTENSITÀ LUMINOSA ALL’ORIGINE DELLA SCHEDA LED / LUMEN INDICATED CORRESPONDS TO THE LUMI-
NOUS INTENSITY AT THE ORIGIN OF THE LED BOARD
DURATA DEL LED 50.000 ORE / LED LIFESPAN 50.000 HOURS
CAVO ELETTRICO COASSIALE A BASSA TENSIONE TRASPARENTE O NERO / COAXIAL LOW VOLTAGE ELECTRIC CABLE IN TRANSPARENT OR BLACK
SORGENTE LUMINOSA / LIGHTING SOURCE:
LED DISPONIBILE PER LAMPADA DA TAVOLO E SOSPENSIONI / LEDS AVAILABLE FOR TABLE LAMP AND HANGING LAMP
• LED 1x 6W - 11,2V-12,8V - 500mA - CRI Typ 95 - 866 Lm - 144 Lm/W - 180° - 3 Step MacAdam - 2700K or 3000K
LED DISPONIBILE PER LAMPADA DA TERRA E SOSPENSIONE OVER1583 / LEDS AVAILABLE FOR FLOOR LAMP AND HANGING LAMP OVER1583
• LED 1x 12W - 22,4V-24,8V - 500mA - CRI Typ 95 - 1.717 Lm - 144 Lm/W - 180° - 3 Step MacAdam - 2700K or 3000K
LED DISPONIBILE PER LAMPADA A SOSPENSIONE MAX1583 / LEDS AVAILABLE FOR HANGING LAMP MAX1583
• LED 1x 8,4W - 22,4V-24,8V - 350mA - CRI Typ 95 - 1.202 Lm - 144 Lm/W - 180° - 3 Step MacAdam - 2700K or 3000K
LU1585.1L
LAMPADA DA TERRA / FLOOR LAMP
Glass 1 x Ø 30 cm - Cable 200 cm
1 x LED 12 W DIMM
30
12
30
175
LU1580.1L
LAMPADA DA TAVOLO / TABLE LAMP
Glass 1 x Ø 22 cm - Cable 200 cm
1 x LED 6 W DIMM
50
11
8
22
S1583.14.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 14 cm - Cable 200 cm
1 x LED 6 W DIMM
9
14
S1583.16.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 16 cm - Cable 200 cm
1 x LED 6 W DIMM
9
16
S1583.18.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 18 cm - Cable 200 cm
1 x LED 6 W DIMM
9
18
1583.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 22 cm - Cable 200 cm
1 x LED 6 W DIMM
22
9
GIG1583.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 26 cm - Cable 200 cm
1 x LED 6 W DIMM
26
9
XXL1583.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 30 cm - Cable 200 cm
1 x LED 6 W DIMM
9
30
MAX1583.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 36 cm - Cable 200 cm
1 x LED 8,4 W DIMM
9
36
Cromo
Chrome
Cromo spazzolato
Brushed chrome
Nero opaco
Matt black
Bianco opaco
Matt white
FINITURA DISPONIBILE PER: PIASTRE, BINARI E DISASSATORI / FINISH AVAILABLE FOR: PLATES, TRACKS AND SPACERS
Nichel nero satinato
Satin black nickel
Oro satinato
Satin gold
FINITURA DISPONIBILE PER: LAMPADA DA TAVOLO E LAMPADA DA TERRA / FINISH AVAILABLE FOR: TABLE LAMP AND FLOOR LAMP
Oro rosa satinato
Satin rose gold
•
PERSONALIZZAZIONE LUNGHEZZA DEL CAVO SU RICHIESTA / CUSTOMISED CABLE LENGTH ON REQUEST
•
A RICHIESTA CON COMPONENTI UL / ON DEMAND WITH UL COMPONENTS
•
DISPONIBILE SU RICHIESTA CON DRIVER DALI / AVAILABLE ON REQUEST WITH DALI DRIVER
•
A RICHIESTA: ARTICOLI GIG1583 E XXL1583 CON LED DA 8,4W (1202 Lm) / ON DEMAND: PRODUCTS GIG1583 AND XXL1583 WITH 8,4W LED (1202 Lm)
•
PIT XXL1583 E MAX1583 DISPONIBILE CON SISTEMA UP E DOWN / PIT XXL1583 AND MAX1583 AVAILABLE WITH UP AND DOWN SYSTEM
ON DEMAND / OPTIONAL FEATURES
DETTAGLI PRODOTTO
PRODUCT DETAILS
ULTERIORI COMPOSIZIONI A RICHIESTA (VEDI DA PAGINA 300 A PAGINA 309)
ADDITIONAL COMPOSITIONS ON DEMAND (SEE PAGES 300 TO 309)
Weitere Compositionen auf Anfrage (Seiten 300 bis 309)
