ULTERIORI COMPOSIZIONI A RICHIESTA (VEDI DA PAGINA 300 A PAGINA 309)
ADDITIONAL COMPOSITIONS ON DEMAND (SEE PAGES 300 TO 309)
Weitere Compositionen auf Anfrage (Seiten 300 bis 309)

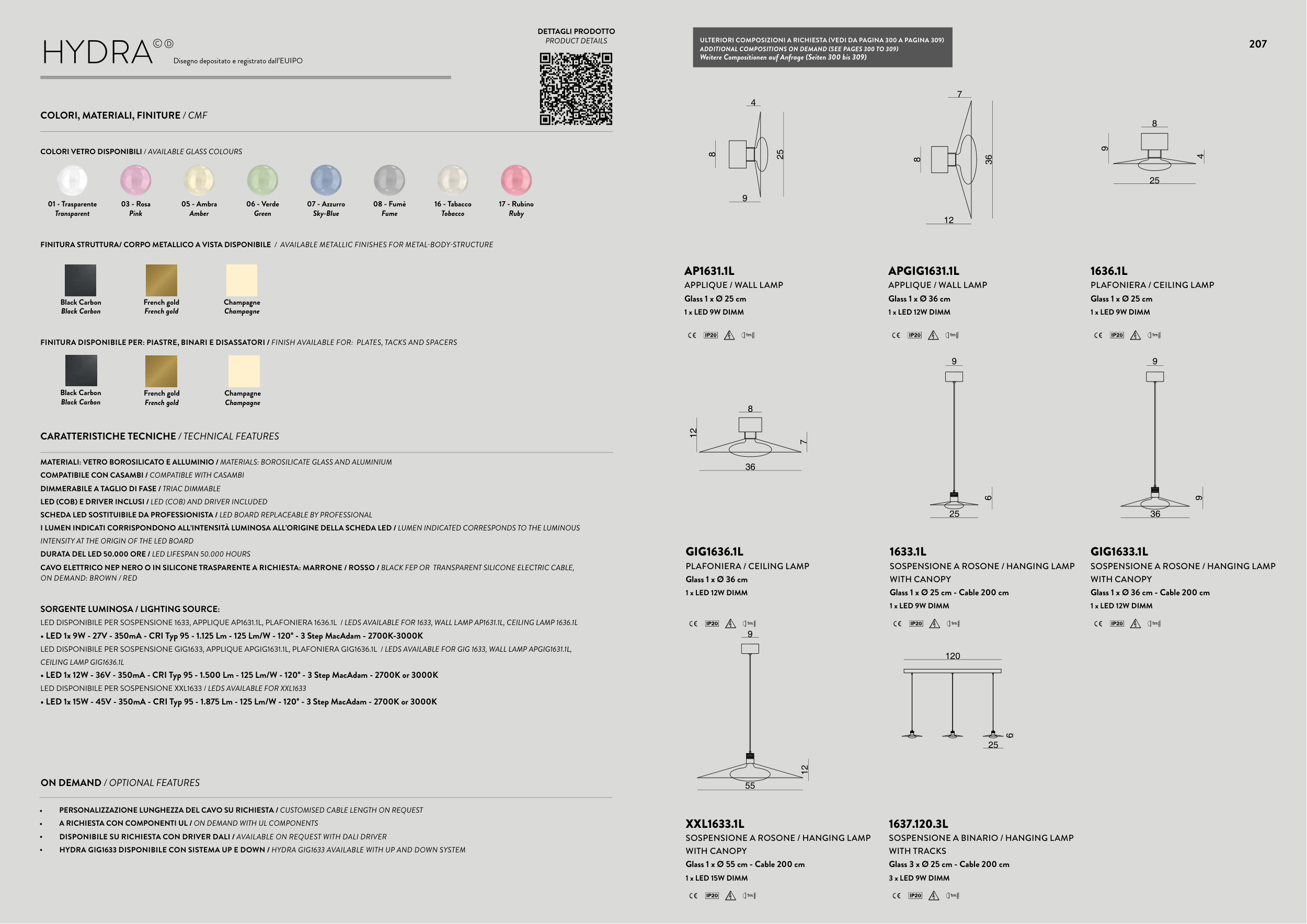

HYDRA
©
Disegno depositato e registrato dall’EUIPO
COLORI, MATERIALI, FINITURE / CMF
COLORI VETRO DISPONIBILI / AVAILABLE GLASS COLOURS
01 - Trasparente
Transparent
03 - Rosa
Pink
05 - Ambra
Amber
06 - Verde
Green
07 - Azzurro
Sky-Blue
08 - Fumè
Fume
16 - Tabacco
Tobacco
17 - Rubino
Ruby
FINITURA STRUTTURA/ CORPO METALLICO A VISTA DISPONIBILE / AVAILABLE METALLIC FINISHES FOR METAL-BODY-STRUCTURE
Black Carbon
Black Carbon
French gold
French gold
Champagne
Champagne
CARATTERISTICHE TECNICHE / TECHNICAL FEATURES
MATERIALI: VETRO BOROSILICATO E ALLUMINIO / MATERIALS: BOROSILICATE GLASS AND ALUMINIUM
COMPATIBILE CON CASAMBI / COMPATIBLE WITH CASAMBI
DIMMERABILE A TAGLIO DI FASE / TRIAC DIMMABLE
LED (COB) E DRIVER INCLUSI / LED (COB) AND DRIVER INCLUDED
SCHEDA LED SOSTITUIBILE DA PROFESSIONISTA / LED BOARD REPLACEABLE BY PROFESSIONAL
I LUMEN INDICATI CORRISPONDONO ALL’INTENSITÀ LUMINOSA ALL’ORIGINE DELLA SCHEDA LED / LUMEN INDICATED CORRESPONDS TO THE LUMINOUS
INTENSITY AT THE ORIGIN OF THE LED BOARD
DURATA DEL LED 50.000 ORE / LED LIFESPAN 50.000 HOURS
CAVO ELETTRICO NEP NERO O IN SILICONE TRASPARENTE A RICHIESTA: MARRONE / ROSSO / BLACK FEP OR TRANSPARENT SILICONE ELECTRIC CABLE,
ON DEMAND: BROWN / RED
SORGENTE LUMINOSA / LIGHTING SOURCE:
LED DISPONIBILE PER SOSPENSIONE 1633, APPLIQUE AP1631.1L, PLAFONIERA 1636.1L / LEDS AVAILABLE FOR 1633, WALL LAMP AP1631.1L, CEILING LAMP 1636.1L
• LED 1x 9W - 27V - 350mA - CRI Typ 95 - 1.125 Lm - 125 Lm/W - 120° - 3 Step MacAdam - 2700K-3000K
LED DISPONIBILE PER SOSPENSIONE GIG1633, APPLIQUE APGIG1631.1L, PLAFONIERA GIG1636.1L / LEDS AVAILABLE FOR GIG 1633, WALL LAMP APGIG1631.1L,
CEILING LAMP GIG1636.1L
• LED 1x 12W - 36V - 350mA - CRI Typ 95 - 1.500 Lm - 125 Lm/W - 120° - 3 Step MacAdam - 2700K or 3000K
LED DISPONIBILE PER SOSPENSIONE XXL1633 / LEDS AVAILABLE FOR XXL1633
• LED 1x 15W - 45V - 350mA - CRI Typ 95 - 1.875 Lm - 125 Lm/W - 120° - 3 Step MacAdam - 2700K or 3000K
AP1631.1L
APPLIQUE / WALL LAMP
Glass 1 x Ø 25 cm
1 x LED 9W DIMM
8
9
25
4
APGIG1631.1L
APPLIQUE / WALL LAMP
Glass 1 x Ø 36 cm
1 x LED 12W DIMM
8
36
7
12
1636.1L
PLAFONIERA / CEILING LAMP
Glass 1 x Ø 25 cm
1 x LED 9W DIMM
8
9
25
4
GIG1636.1L
PLAFONIERA / CEILING LAMP
Glass 1 x Ø 36 cm
1 x LED 12W DIMM
8
36
7
12
1633.1L
SOSPENSIONE A ROSONE / HANGING LAMP
WITH CANOPY
Glass 1 x Ø 25 cm - Cable 200 cm
1 x LED 9W DIMM
9
25
6
GIG1633.1L
SOSPENSIONE A ROSONE / HANGING LAMP
WITH CANOPY
Glass 1 x Ø 36 cm - Cable 200 cm
1 x LED 12W DIMM
9
36
9
XXL1633.1L
SOSPENSIONE A ROSONE / HANGING LAMP
WITH CANOPY
Glass 1 x Ø 55 cm - Cable 200 cm
1 x LED 15W DIMM
9
55
12
1637.120.3L
SOSPENSIONE A BINARIO / HANGING LAMP
WITH TRACKS
Glass 3 x Ø 25 cm - Cable 200 cm
3 x LED 9W DIMM
120
6
25
•
PERSONALIZZAZIONE LUNGHEZZA DEL CAVO SU RICHIESTA / CUSTOMISED CABLE LENGTH ON REQUEST
•
A RICHIESTA CON COMPONENTI UL / ON DEMAND WITH UL COMPONENTS
•
DISPONIBILE SU RICHIESTA CON DRIVER DALI / AVAILABLE ON REQUEST WITH DALI DRIVER
•
HYDRA GIG1633 DISPONIBILE CON SISTEMA UP E DOWN / HYDRA GIG1633 AVAILABLE WITH UP AND DOWN SYSTEM
ON DEMAND / OPTIONAL FEATURES
Black Carbon
Black Carbon
French gold
French gold
Champagne
Champagne
FINITURA DISPONIBILE PER: PIASTRE, BINARI E DISASSATORI / FINISH AVAILABLE FOR: PLATES, TACKS AND SPACERS
DETTAGLI PRODOTTO
PRODUCT DETAILS
