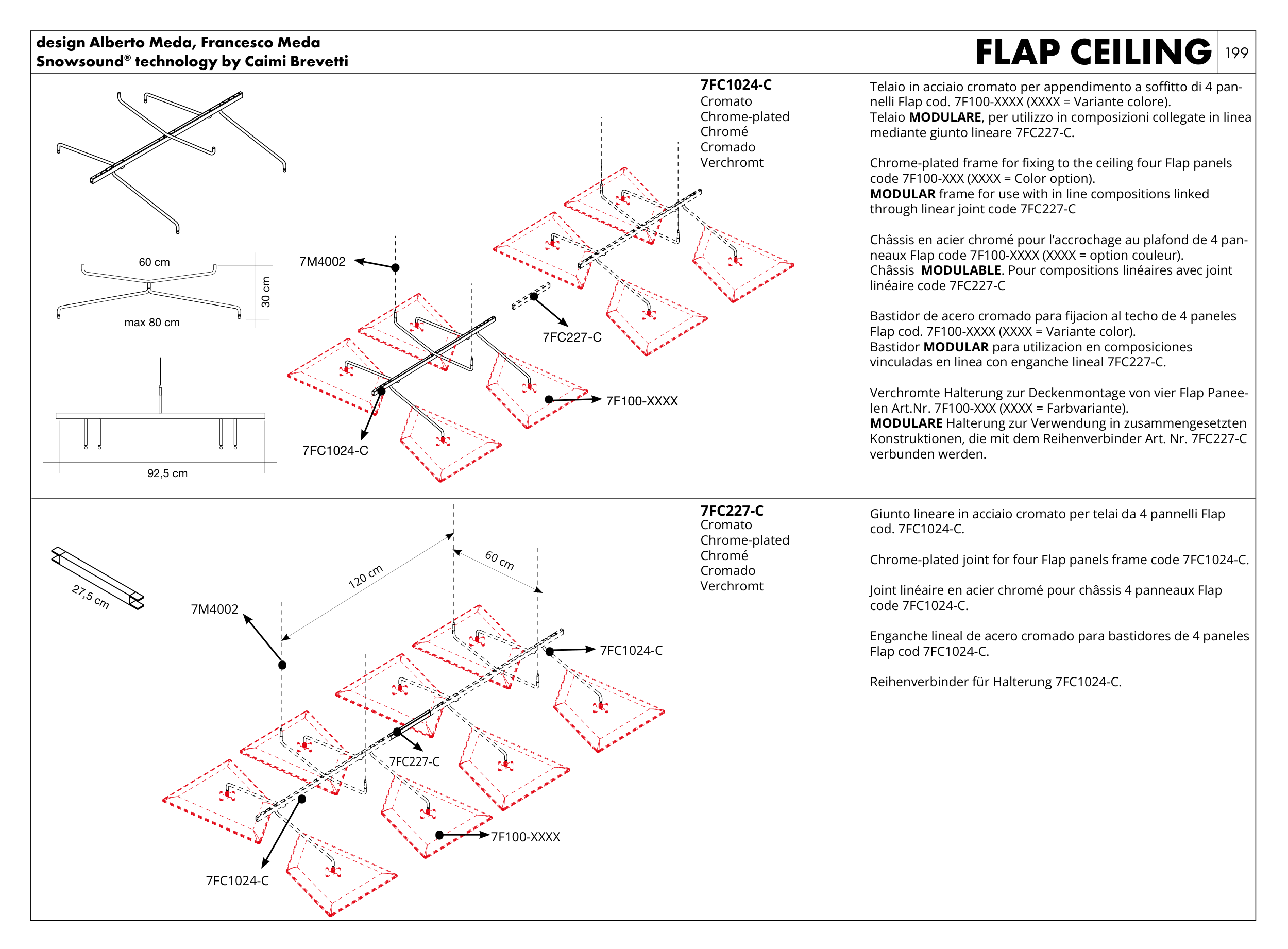

199
FLAP CEILING
design Alberto Meda, Francesco Meda
Snowsound® technology by Caimi Brevetti
60 cm
30 cm
max 80 cm
Cromato
Chrome-plated
Chromé
Cromado
Verchromt
Cromato
Chrome-plated
Chromé
Cromado
Verchromt
Telaio in acciaio cromato per appendimento a soffitto di 4 pan-
nelli Flap cod. 7F100-XXXX (XXXX = Variante colore).
Telaio MODULARE, per utilizzo in composizioni collegate in linea
mediante giunto lineare 7FC227-C.
Chrome-plated frame for fixing to the ceiling four Flap panels
code 7F100-XXX (XXXX = Color option).
MODULAR frame for use with in line compositions linked
through linear joint code 7FC227-C
Châssis en acier chromé pour l’accrochage au plafond de 4 pan-
neaux Flap code 7F100-XXXX (XXXX = option couleur).
Châssis MODULABLE. Pour compositions linéaires avec joint
linéaire code 7FC227-C
Bastidor de acero cromado para fijacion al techo de 4 paneles
Flap cod. 7F100-XXXX (XXXX = Variante color).
Bastidor MODULAR para utilizacion en composiciones
vinculadas en linea con enganche lineal 7FC227-C.
Verchromte Halterung zur Deckenmontage von vier Flap Panee-
len Art.Nr. 7F100-XXX (XXXX = Farbvariante).
MODULARE Halterung zur Verwendung in zusammengesetzten
Konstruktionen, die mit dem Reihenverbinder Art. Nr. 7FC227-C
verbunden werden.
Giunto lineare in acciaio cromato per telai da 4 pannelli Flap
cod. 7FC1024-C.
Chrome-plated joint for four Flap panels frame code 7FC1024-C.
Joint linéaire en acier chromé pour châssis 4 panneaux Flap
code 7FC1024-C.
Enganche lineal de acero cromado para bastidores de 4 paneles
Flap cod 7FC1024-C.
Reihenverbinder für Halterung 7FC1024-C.
7FC1024-C
7FC227-C
•
7F100-XXXX
•
7FC227-C
•
7M4002
•
7FC1024-C
92,5 cm
27,5 cm
7FC1024-C
•
7FC1024-C
•
7FC227-C
•
7M4002
•
7F100-XXXX
•
60 cm
120 cm
