144
design Michele De Lucchi
Snowsound® technology by Caimi Brevetti

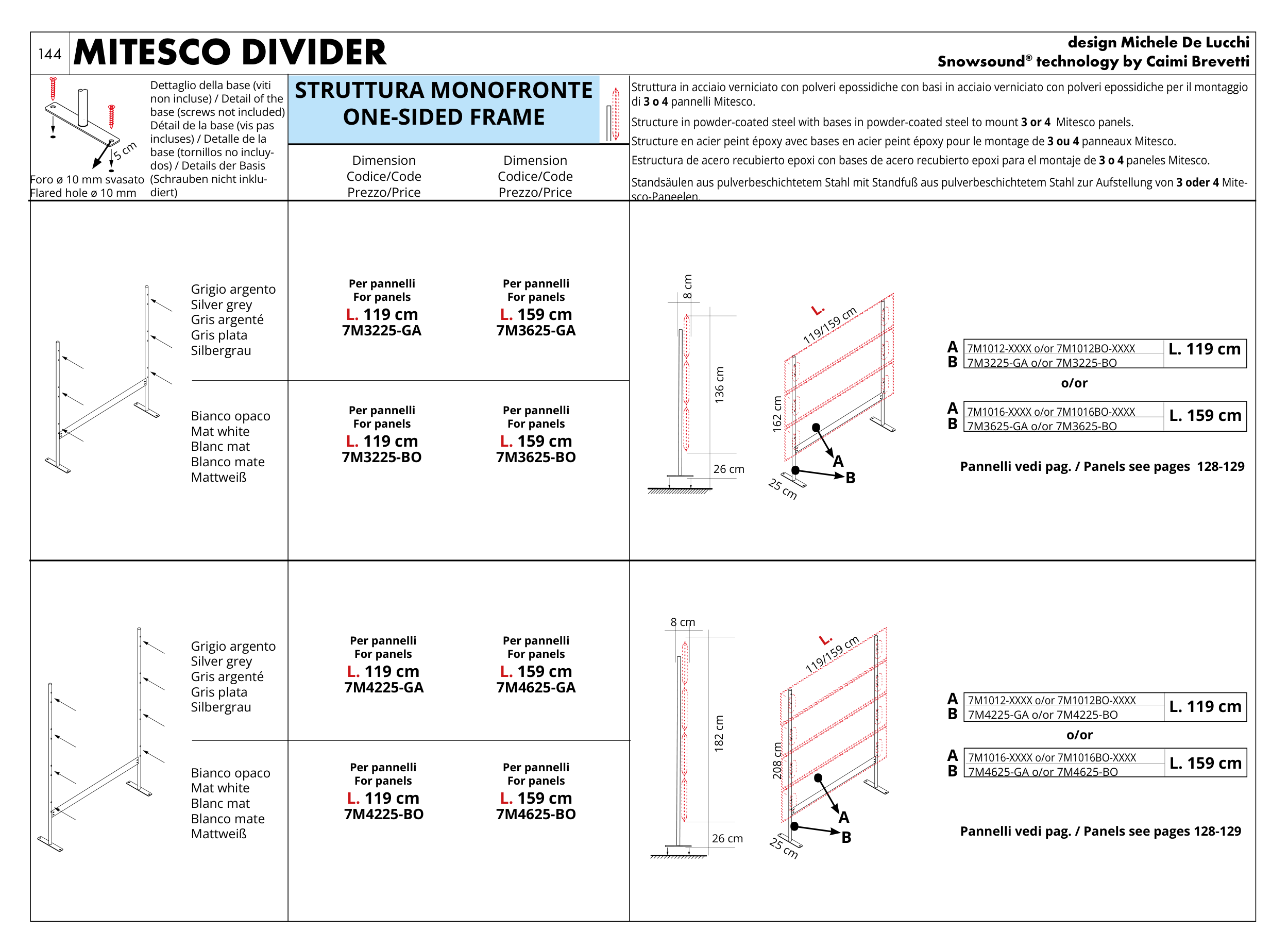

MITESCO DIVIDER
5 cm
Dettaglio della base (viti
non incluse) / Detail of the
base (screws not included)
Détail de la base (vis pas
incluses) / Detalle de la
base (tornillos no incluy-
dos) / Details der Basis
(Schrauben nicht inklu-
diert)
Dimension
Codice/Code
Prezzo/Price
Dimension
Codice/Code
Prezzo/Price
7M4225-GA
7M3225-GA
7M4225-BO
7M3225-BO
7M4625-GA
7M3625-GA
7M4625-BO
7M3625-BO
Per pannelli
For panels
L. 119 cm
Per pannelli
For panels
L. 119 cm
Per pannelli
For panels
L. 119 cm
Per pannelli
For panels
L. 119 cm
Per pannelli
For panels
L. 159 cm
Per pannelli
For panels
L. 159 cm
Per pannelli
For panels
L. 159 cm
Per pannelli
For panels
L. 159 cm
STRUTTURA MONOFRONTE
ONE-SIDED FRAME
Grigio argento
Silver grey
Gris argenté
Gris plata
Silbergrau
Grigio argento
Silver grey
Gris argenté
Gris plata
Silbergrau
Bianco opaco
Mat white
Blanc mat
Blanco mate
Mattweiß
Bianco opaco
Mat white
Blanc mat
Blanco mate
Mattweiß
208 cm
25 cm
•
119/159 cm
L.
A
B
o/or
A
B
7M1016-XXXX o/or 7M1016BO-XXXX
7M4625-GA o/or 7M4625-BO
L. 159 cm
A
B
7M1012-XXXX o/or 7M1012BO-XXXX
7M4225-GA o/or 7M4225-BO
L. 119 cm
•
Struttura in acciaio verniciato con polveri epossidiche con basi in acciaio verniciato con polveri epossidiche per il montaggio
di 3 o 4 pannelli Mitesco.
Structure in powder-coated steel with bases in powder-coated steel to mount 3 or 4 Mitesco panels.
Structure en acier peint époxy avec bases en acier peint époxy pour le montage de 3 ou 4 panneaux Mitesco.
Estructura de acero recubierto epoxi con bases de acero recubierto epoxi para el montaje de 3 o 4 paneles Mitesco.
Standsäulen aus pulverbeschichtetem Stahl mit Standfuß aus pulverbeschichtetem Stahl zur Aufstellung von 3 oder 4 Mite-
sco-Paneelen.
162 cm
25 cm
•
•
119/159 cm
L.
A
B
A
A
B
B
o/or
7M1016-XXXX o/or 7M1016BO-XXXX
7M3625-GA o/or 7M3625-BO
L. 159 cm
7M1012-XXXX o/or 7M1012BO-XXXX
7M3225-GA o/or 7M3225-BO
L. 119 cm
Foro ø 10 mm svasato
Flared hole ø 10 mm
26 cm
182 cm
8 cm
26 cm
136 cm
8 cm
Pannelli vedi pag. / Panels see pages 128-129
Pannelli vedi pag. / Panels see pages 128-129
