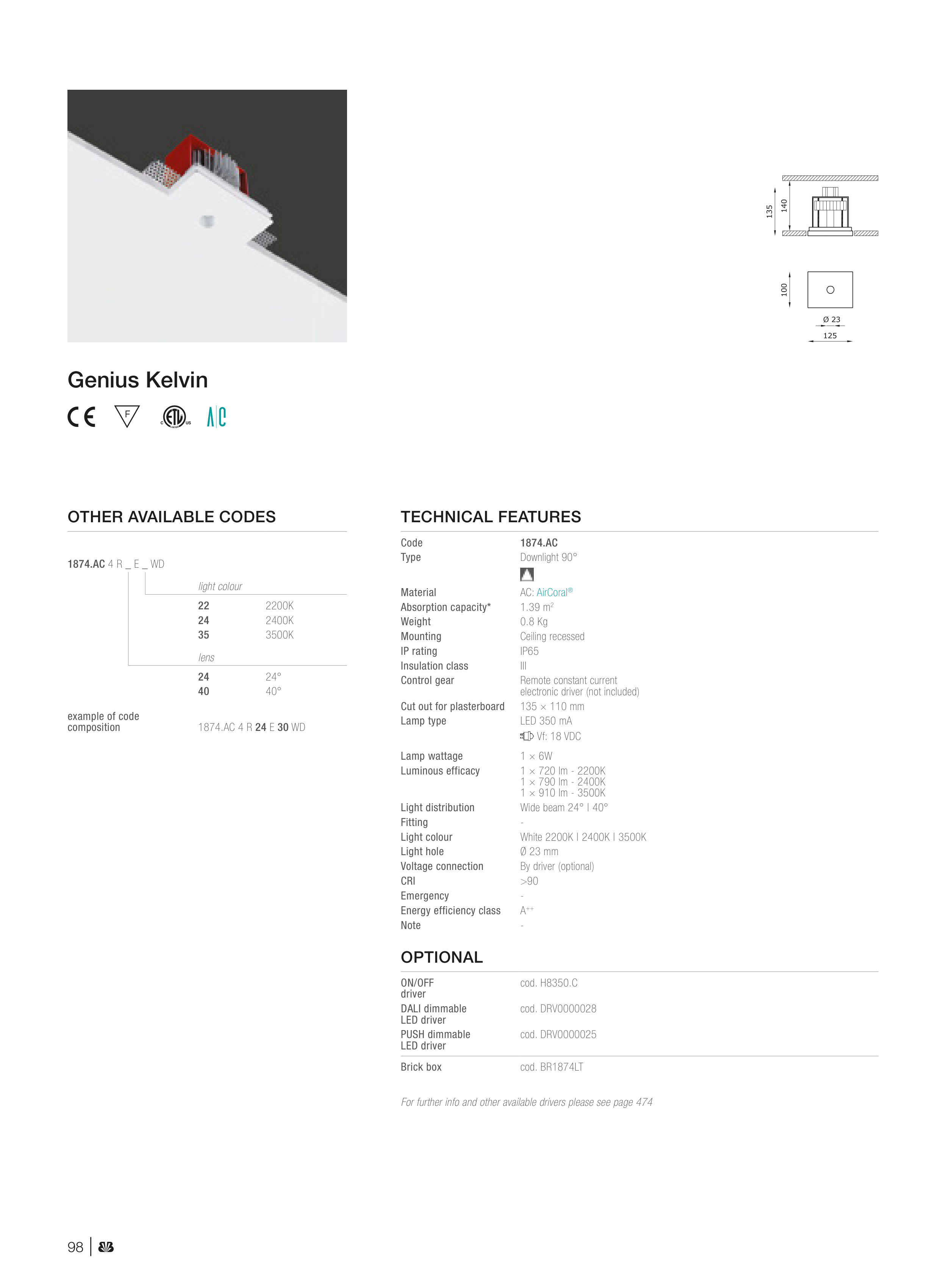

Genius Kelvin
TECHNICAL FEATURES
Code
1874.AC
Type
Downlight 90°
Material
AC: AirCoral®
Absorption capacity*
1.39 m2
Weight
0.8 Kg
Mounting
Ceiling recessed
IP rating
IP65
Insulation class
III
Control gear
Remote constant current
electronic driver (not included)
Cut out for plasterboard
135 × 110 mm
Lamp type
LED 350 mA
Vf: 18 VDC
Lamp wattage
1 × 6W
Luminous efficacy
1 × 720 lm - 2200K
1 × 790 lm - 2400K
1 × 910 lm - 3500K
Light distribution
Wide beam 24° | 40°
Fitting
-
Light colour
White 2200K | 2400K | 3500K
Light hole
Ø 23 mm
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Energy efficiency class
A++
Note
-
OPTIONAL
ON/OFF
driver
cod. H8350.C
DALI dimmable
LED driver
cod. DRV0000028
PUSH dimmable
LED driver
cod. DRV0000025
Brick box
cod. BR1874LT
For further info and other available drivers please see page 474
OTHER AVAILABLE CODES
1874.AC 4 R _ E _ WD
light colour
22
2200K
24
2400K
35
3500K
lens
24
24°
40
40°
example of code
composition
1874.AC 4 R 24 E 30 WD
98 |
