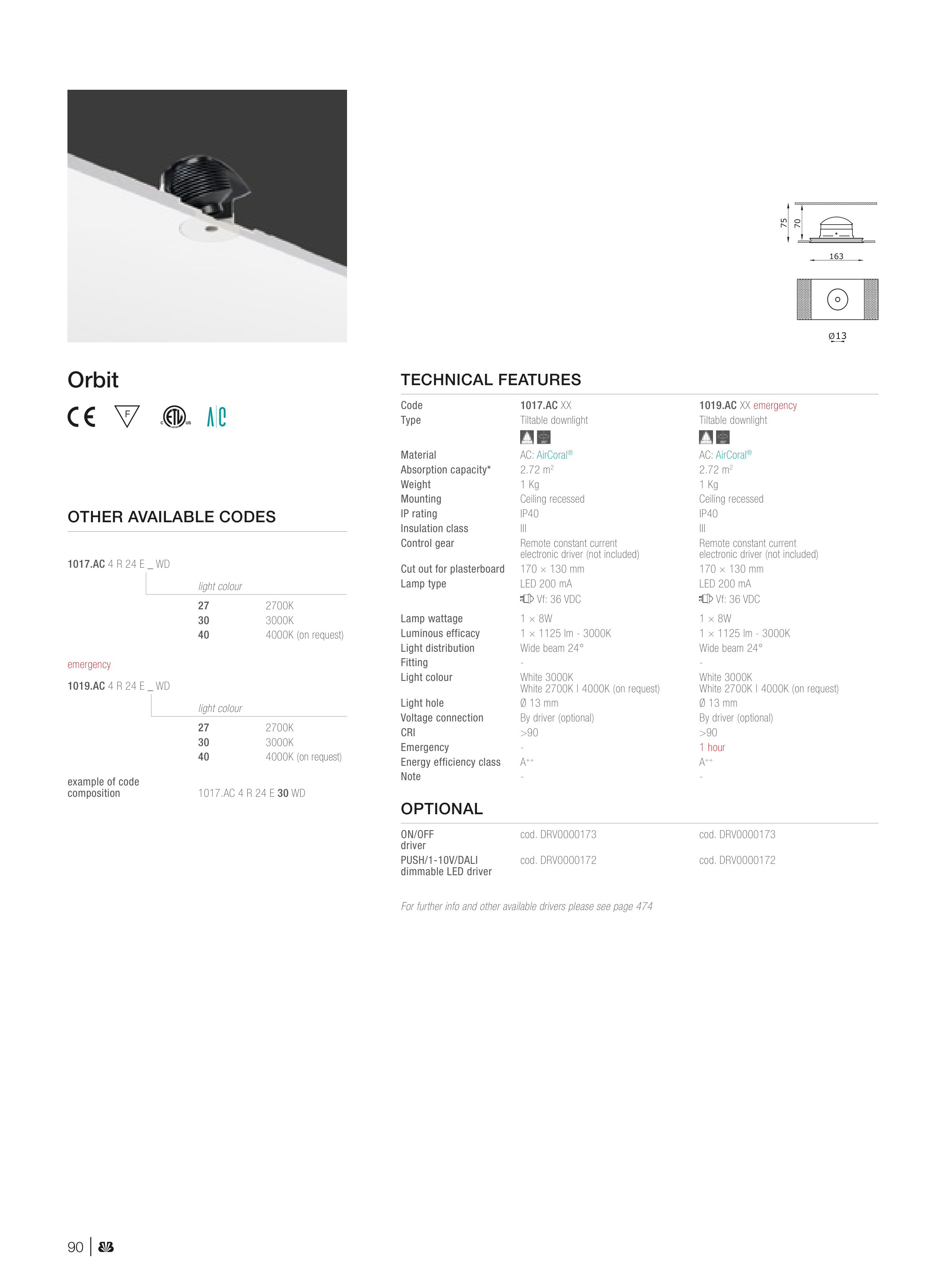

Orbit
TECHNICAL FEATURES
Code
1017.AC XX
1019.AC XX emergency
Type
Tiltable downlight
Tiltable downlight
Material
AC: AirCoral®
AC: AirCoral®
Absorption capacity*
2.72 m2
2.72 m2
Weight
1 Kg
1 Kg
Mounting
Ceiling recessed
Ceiling recessed
IP rating
IP40
IP40
Insulation class
III
III
Control gear
Remote constant current
electronic driver (not included)
Remote constant current
electronic driver (not included)
Cut out for plasterboard
170 × 130 mm
170 × 130 mm
Lamp type
LED 200 mA
LED 200 mA
Vf: 36 VDC
Vf: 36 VDC
Lamp wattage
1 × 8W
1 × 8W
Luminous efficacy
1 × 1125 lm - 3000K
1 × 1125 lm - 3000K
Light distribution
Wide beam 24°
Wide beam 24°
Fitting
-
-
Light colour
White 3000K
White 2700K | 4000K (on request)
White 3000K
White 2700K | 4000K (on request)
Light hole
Ø 13 mm
Ø 13 mm
Voltage connection
By driver (optional)
By driver (optional)
CRI
>90
>90
Emergency
-
1 hour
Energy efficiency class
A++
A++
Note
-
-
OPTIONAL
ON/OFF
driver
cod. DRV0000173
cod. DRV0000173
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000172
cod. DRV0000172
For further info and other available drivers please see page 474
OTHER AVAILABLE CODES
1017.AC 4 R 24 E _ WD
light colour
27
2700K
30
3000K
40
4000K (on request)
emergency
1019.AC 4 R 24 E _ WD
light colour
27
2700K
30
3000K
40
4000K (on request)
example of code
composition
1017.AC 4 R 24 E 30 WD
13
163
75
70
