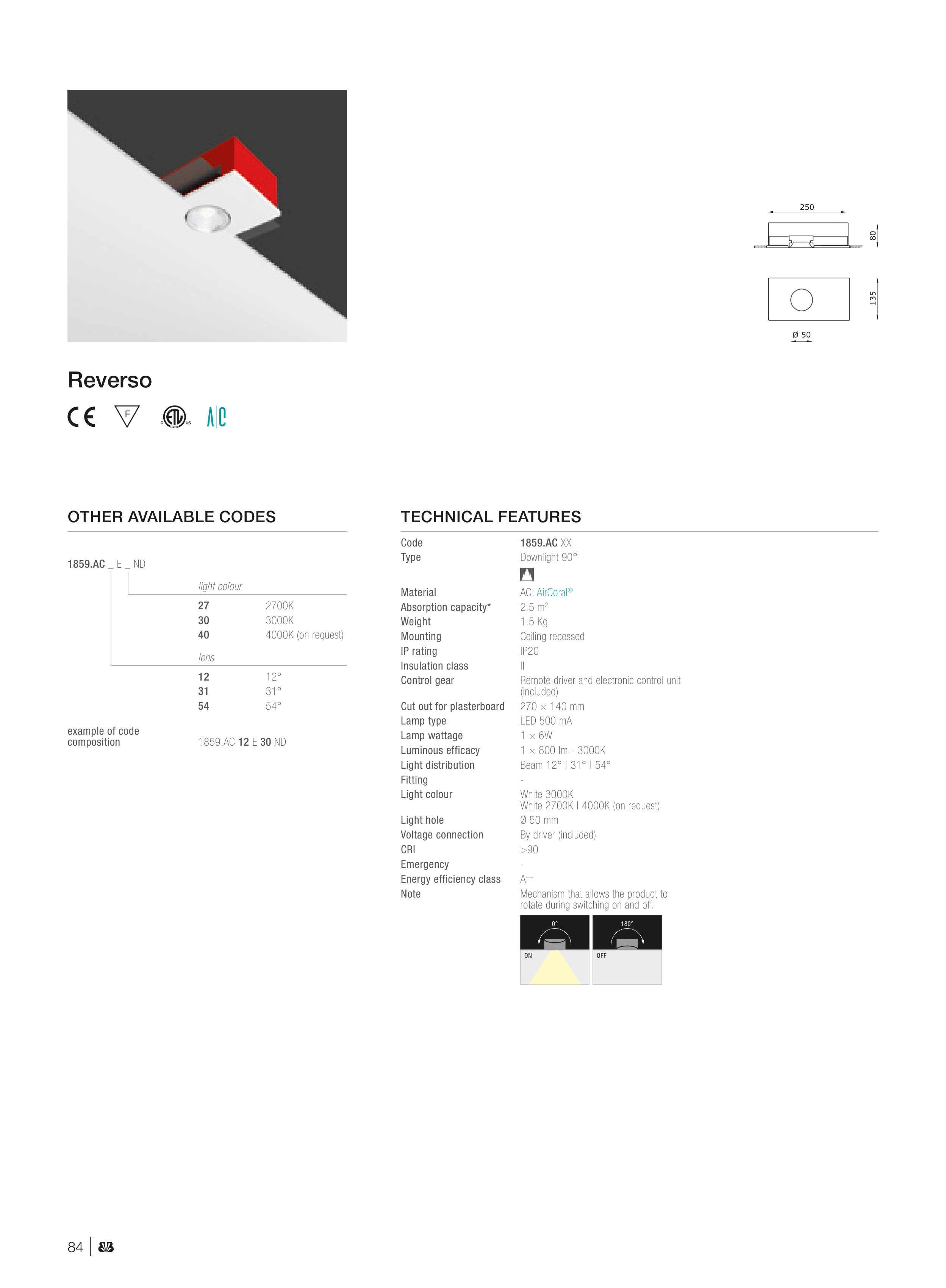

Reverso
TECHNICAL FEATURES
Code
1859.AC XX
Type
Downlight 90°
Material
AC: AirCoral®
Absorption capacity*
2.5 m2
Weight
1.5 Kg
Mounting
Ceiling recessed
IP rating
IP20
Insulation class
II
Control gear
Remote driver and electronic control unit
(included)
Cut out for plasterboard
270 × 140 mm
Lamp type
LED 500 mA
Lamp wattage
1 × 6W
Luminous efficacy
1 × 800 lm - 3000K
Light distribution
Beam 12° | 31° | 54°
Fitting
-
Light colour
White 3000K
White 2700K | 4000K (on request)
Light hole
Ø 50 mm
Voltage connection
By driver (included)
CRI
>90
Emergency
-
Energy efficiency class
A++
Note
Mechanism that allows the product to
rotate during switching on and off.
0°
ON
OFF
180°
OTHER AVAILABLE CODES
1859.AC _ E _ ND
light colour
27
2700K
30
3000K
40
4000K (on request)
lens
12
12°
31
31°
54
54°
example of code
composition
1859.AC 12 E 30 ND
80
Ø 50
135
250
84 |
