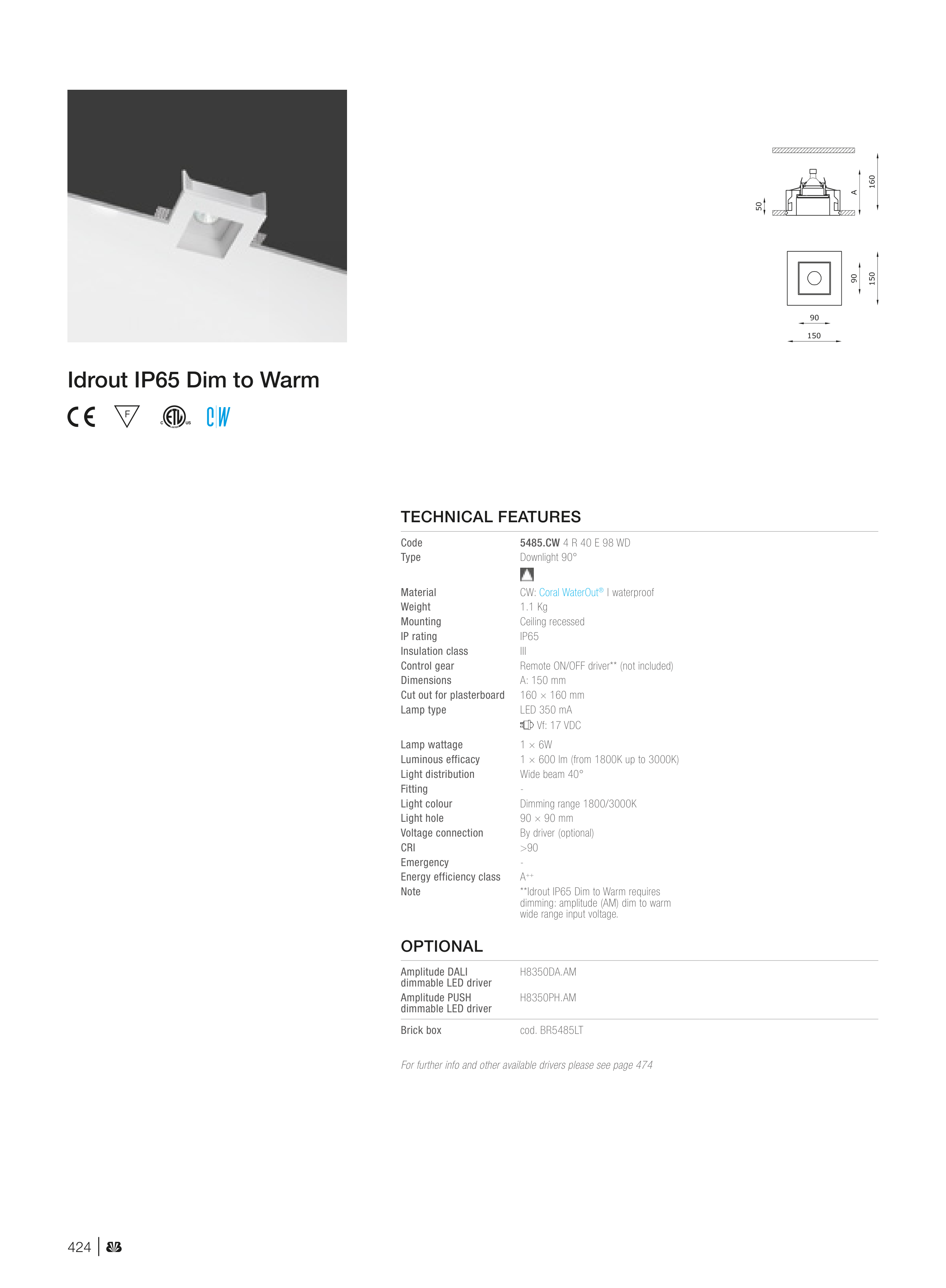

Idrout IP65 Dim to Warm
TECHNICAL FEATURES
Code
5485.CW 4 R 40 E 98 WD
Type
Downlight 90°
Material
CW: Coral WaterOut® | waterproof
Weight
1.1 Kg
Mounting
Ceiling recessed
IP rating
IP65
Insulation class
III
Control gear
Remote ON/OFF driver** (not included)
Dimensions
A: 150 mm
Cut out for plasterboard
160 × 160 mm
Lamp type
LED 350 mA
Vf: 17 VDC
Lamp wattage
1 × 6W
Luminous efficacy
1 × 600 lm (from 1800K up to 3000K)
Light distribution
Wide beam 40°
Fitting
-
Light colour
Dimming range 1800/3000K
Light hole
90 × 90 mm
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Energy efficiency class
A++
Note
**Idrout IP65 Dim to Warm requires
dimming: amplitude (AM) dim to warm
wide range input voltage.
OPTIONAL
Amplitude DALI
dimmable LED driver
H8350DA.AM
Amplitude PUSH
dimmable LED driver
H8350PH.AM
Brick box
cod. BR5485LT
For further info and other available drivers please see page 474
424 |
