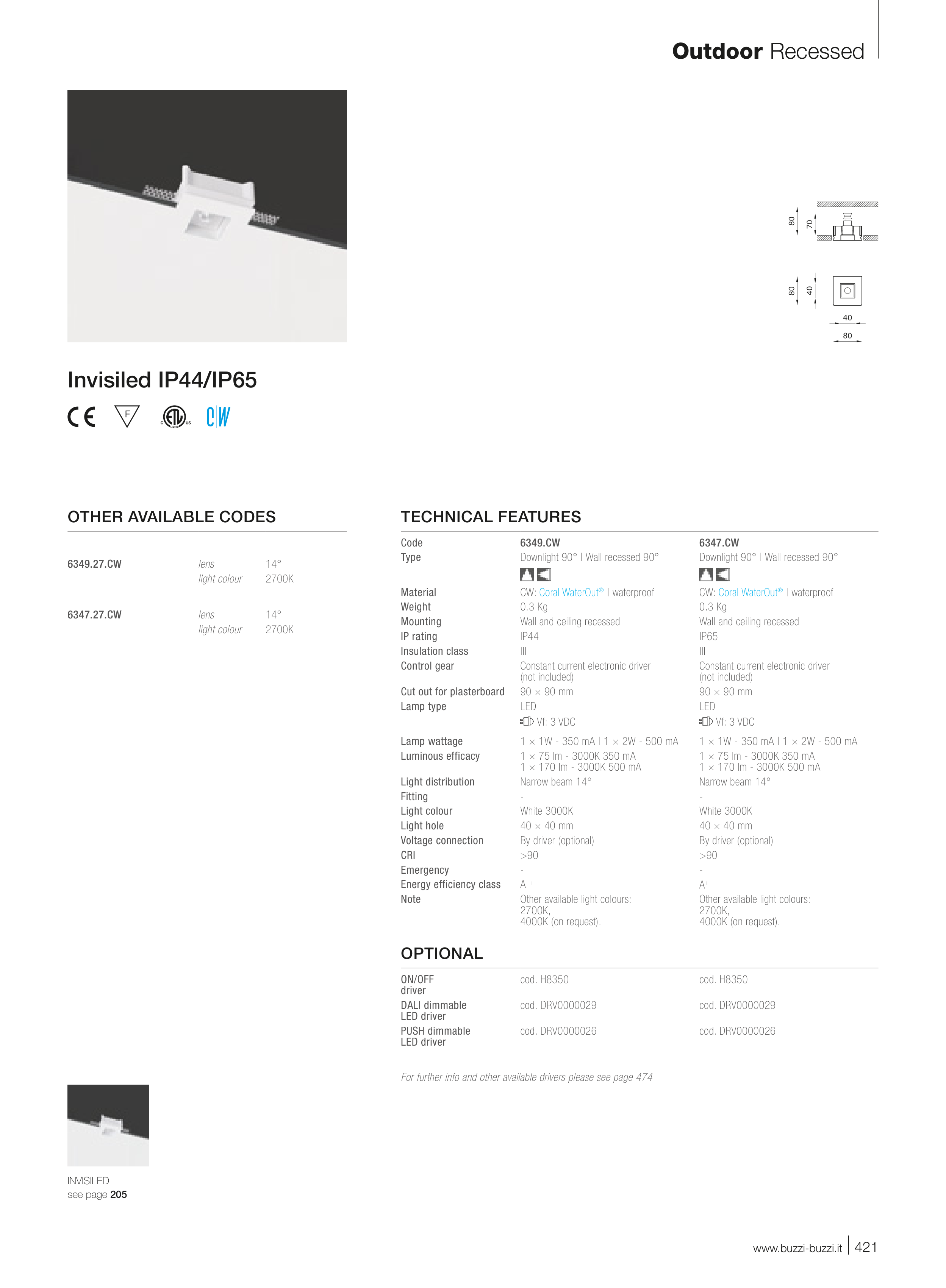

Invisiled IP44/IP65
TECHNICAL FEATURES
Code
6349.CW
6347.CW
Type
Downlight 90° | Wall recessed 90°
Downlight 90° | Wall recessed 90°
Material
CW: Coral WaterOut® | waterproof
CW: Coral WaterOut® | waterproof
Weight
0.3 Kg
0.3 Kg
Mounting
Wall and ceiling recessed
Wall and ceiling recessed
IP rating
IP44
IP65
Insulation class
III
III
Control gear
Constant current electronic driver
(not included)
Constant current electronic driver
(not included)
Cut out for plasterboard
90 × 90 mm
90 × 90 mm
Lamp type
LED
LED
Vf: 3 VDC
Vf: 3 VDC
Lamp wattage
1 × 1W - 350 mA | 1 × 2W - 500 mA
1 × 1W - 350 mA | 1 × 2W - 500 mA
Luminous efficacy
1 × 75 lm - 3000K 350 mA
1 × 170 lm - 3000K 500 mA
1 × 75 lm - 3000K 350 mA
1 × 170 lm - 3000K 500 mA
Light distribution
Narrow beam 14°
Narrow beam 14°
Fitting
-
-
Light colour
White 3000K
White 3000K
Light hole
40 × 40 mm
40 × 40 mm
Voltage connection
By driver (optional)
By driver (optional)
CRI
>90
>90
Emergency
-
-
Energy efficiency class
A++
A++
Note
Other available light colours:
2700K,
4000K (on request).
Other available light colours:
2700K,
4000K (on request).
OPTIONAL
ON/OFF
driver
cod. H8350
cod. H8350
DALI dimmable
LED driver
cod. DRV0000029
cod. DRV0000029
PUSH dimmable
LED driver
cod. DRV0000026
cod. DRV0000026
For further info and other available drivers please see page 474
INVISILED
see page 205
OTHER AVAILABLE CODES
6349.27.CW
lens
14°
light colour
2700K
6347.27.CW
lens
14°
light colour
2700K
www.buzzi-buzzi.it | 421
Outdoor Recessed
