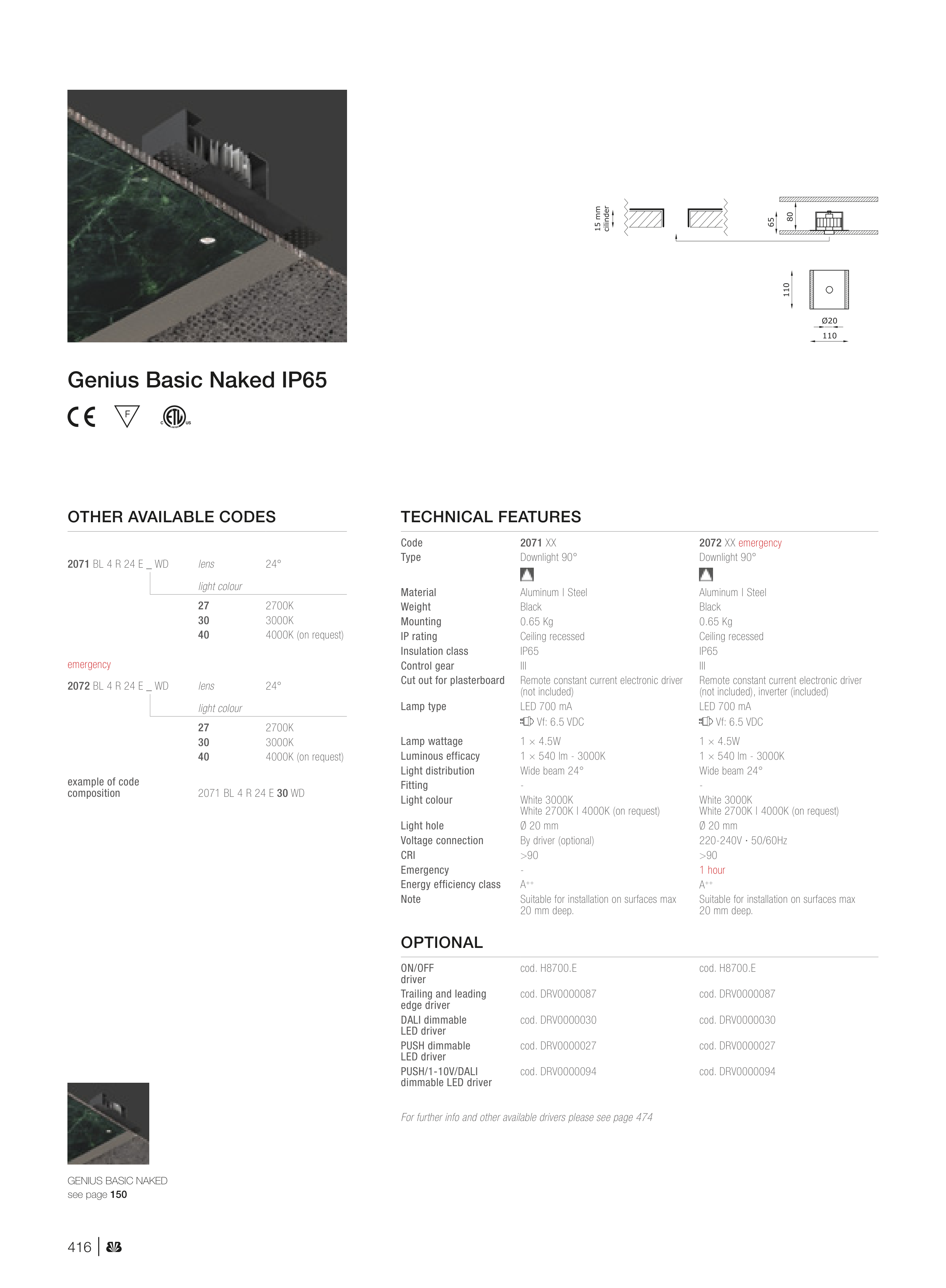

Genius Basic Naked IP65
OTHER AVAILABLE CODES
2071 BL 4 R 24 E _ WD
lens
24°
light colour
27
2700K
30
3000K
40
4000K (on request)
emergency
2072 BL 4 R 24 E _ WD
lens
24°
light colour
27
2700K
30
3000K
40
4000K (on request)
example of code
composition
2071 BL 4 R 24 E 30 WD
TECHNICAL FEATURES
Code
2071 XX
2072 XX emergency
Type
Downlight 90°
Downlight 90°
Material
Aluminum | Steel
Aluminum | Steel
Weight
Black
Black
Mounting
0.65 Kg
0.65 Kg
IP rating
Ceiling recessed
Ceiling recessed
Insulation class
IP65
IP65
Control gear
III
III
Cut out for plasterboard
Remote constant current electronic driver
(not included)
Remote constant current electronic driver
(not included), inverter (included)
Lamp type
LED 700 mA
LED 700 mA
Vf: 6.5 VDC
Vf: 6.5 VDC
Lamp wattage
1 × 4.5W
1 × 4.5W
Luminous efficacy
1 × 540 lm - 3000K
1 × 540 lm - 3000K
Light distribution
Wide beam 24°
Wide beam 24°
Fitting
-
-
Light colour
White 3000K
White 2700K | 4000K (on request)
White 3000K
White 2700K | 4000K (on request)
Light hole
Ø 20 mm
Ø 20 mm
Voltage connection
By driver (optional)
220-240V ∙ 50/60Hz
CRI
>90
>90
Emergency
-
1 hour
Energy efficiency class
A++
A++
Note
Suitable for installation on surfaces max
20 mm deep.
Suitable for installation on surfaces max
20 mm deep.
OPTIONAL
ON/OFF
driver
cod. H8700.E
cod. H8700.E
Trailing and leading
edge driver
cod. DRV0000087
cod. DRV0000087
DALI dimmable
LED driver
cod. DRV0000030
cod. DRV0000030
PUSH dimmable
LED driver
cod. DRV0000027
cod. DRV0000027
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000094
cod. DRV0000094
For further info and other available drivers please see page 474
GENIUS BASIC NAKED
see page 150
15 mm
cilinder
416 |
