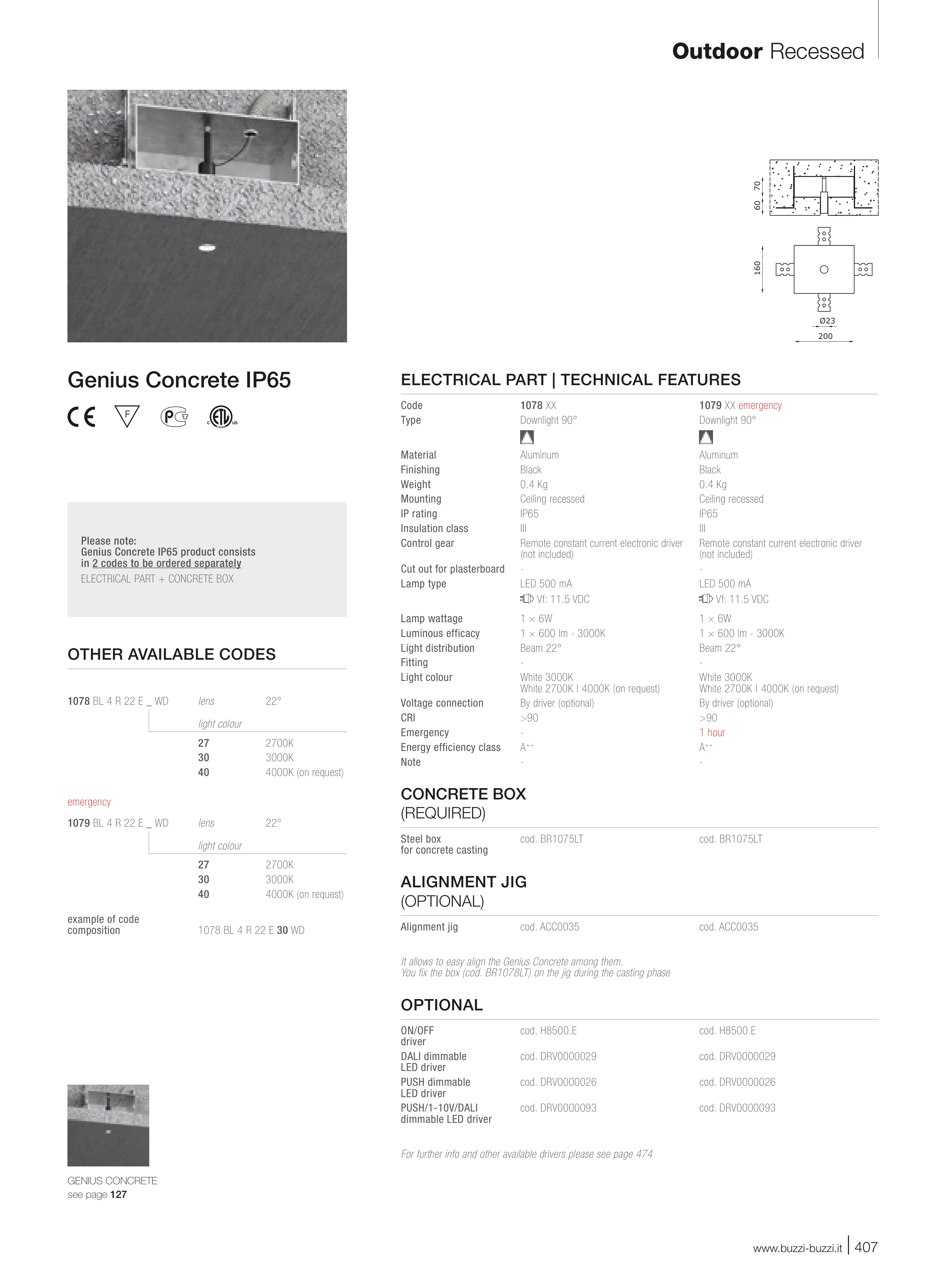

Genius Concrete IP65
OTHER AVAILABLE CODES
1078 BL 4 R 22 E _ WD
lens
22°
light colour
27
2700K
30
3000K
40
4000K (on request)
emergency
1079 BL 4 R 22 E _ WD
lens
22°
light colour
27
2700K
30
3000K
40
4000K (on request)
example of code
composition
1078 BL 4 R 22 E 30 WD
ELECTRICAL PART | TECHNICAL FEATURES
Code
1078 XX
1079 XX emergency
Type
Downlight 90°
Downlight 90°
Material
Aluminum
Aluminum
Finishing
Black
Black
Weight
0.4 Kg
0.4 Kg
Mounting
Ceiling recessed
Ceiling recessed
IP rating
IP65
IP65
Insulation class
III
III
Control gear
Remote constant current electronic driver
(not included)
Remote constant current electronic driver
(not included)
Cut out for plasterboard
-
-
Lamp type
LED 500 mA
LED 500 mA
Vf: 11.5 VDC
Vf: 11.5 VDC
Lamp wattage
1 × 6W
1 × 6W
Luminous efficacy
1 × 600 lm - 3000K
1 × 600 lm - 3000K
Light distribution
Beam 22°
Beam 22°
Fitting
-
-
Light colour
White 3000K
White 2700K | 4000K (on request)
White 3000K
White 2700K | 4000K (on request)
Voltage connection
By driver (optional)
By driver (optional)
CRI
>90
>90
Emergency
-
1 hour
Energy efficiency class
A++
A++
Note
-
-
CONCRETE BOX
(REQUIRED)
Steel box
for concrete casting
cod. BR1075LT
cod. BR1075LT
ALIGNMENT JIG
(OPTIONAL)
Alignment jig
cod. ACC0035
cod. ACC0035
It allows to easy align the Genius Concrete among them.
You fix the box (cod. BR1078LT) on the jig during the casting phase
OPTIONAL
ON/OFF
driver
cod. H8500.E
cod. H8500.E
DALI dimmable
LED driver
cod. DRV0000029
cod. DRV0000029
PUSH dimmable
LED driver
cod. DRV0000026
cod. DRV0000026
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000093
cod. DRV0000093
For further info and other available drivers please see page 474
GENIUS CONCRETE
see page 127
Please note:
Genius Concrete IP65 product consists
in 2 codes to be ordered separately
ELECTRICAL PART + CONCRETE BOX
www.buzzi-buzzi.it | 407
Outdoor Recessed
