TECHNICAL FEATURES
Code
3028.Z.AC
3022.AC
Type
Ceiling lamp 90°
Ceiling lamp 90°
Material
AC: AirCoral®
AC: AirCoral®
Absorption capacity*
4.87 m2
4.87 m2
Mounting
Ceiling mounting
Ceiling mounting
IP rating
IP20
IP20
Insulation class
I
I
Control gear
Constant current electronic driver
(not included)
-
Lamp type
LED 500 mA
QPAR 16
Vf: 18 VDC
Lamp wattage
1 × 9W
1 × 35W max
Luminous efficacy
1 × 1125 lm - 3000K
-
Light distribution
Wide beam 40°
-
Fitting
-
GU10
Light colour
White 3000K
-
Voltage connection
By driver (optional)
220-240V ∙ 50/60Hz
CRI
>90
-
Emergency
-
-
Energy efficiency class
A++
A
Note
Extra white satin glass.
Recessed glass 30 mm.
On request available dimmable
PUSH or DALI, remote installation.
Other available light colours:
2700K,
4000K (on request).
Extra white satin glass.
Recessed glass 30 mm.
OPTIONAL
ON/OFF
driver
cod. H8500.E | cod. H8500.B
-
Trailing and leading
edge driver
cod. DRV0000163
cod. H8060.LED
DALI dimmable
LED driver
cod. DRV0000029
-
PUSH dimmable
LED driver
cod. DRV0000026
-
Kit LED dimmable
-
cod. 0009KIT
For further info and other available drivers please see page 474

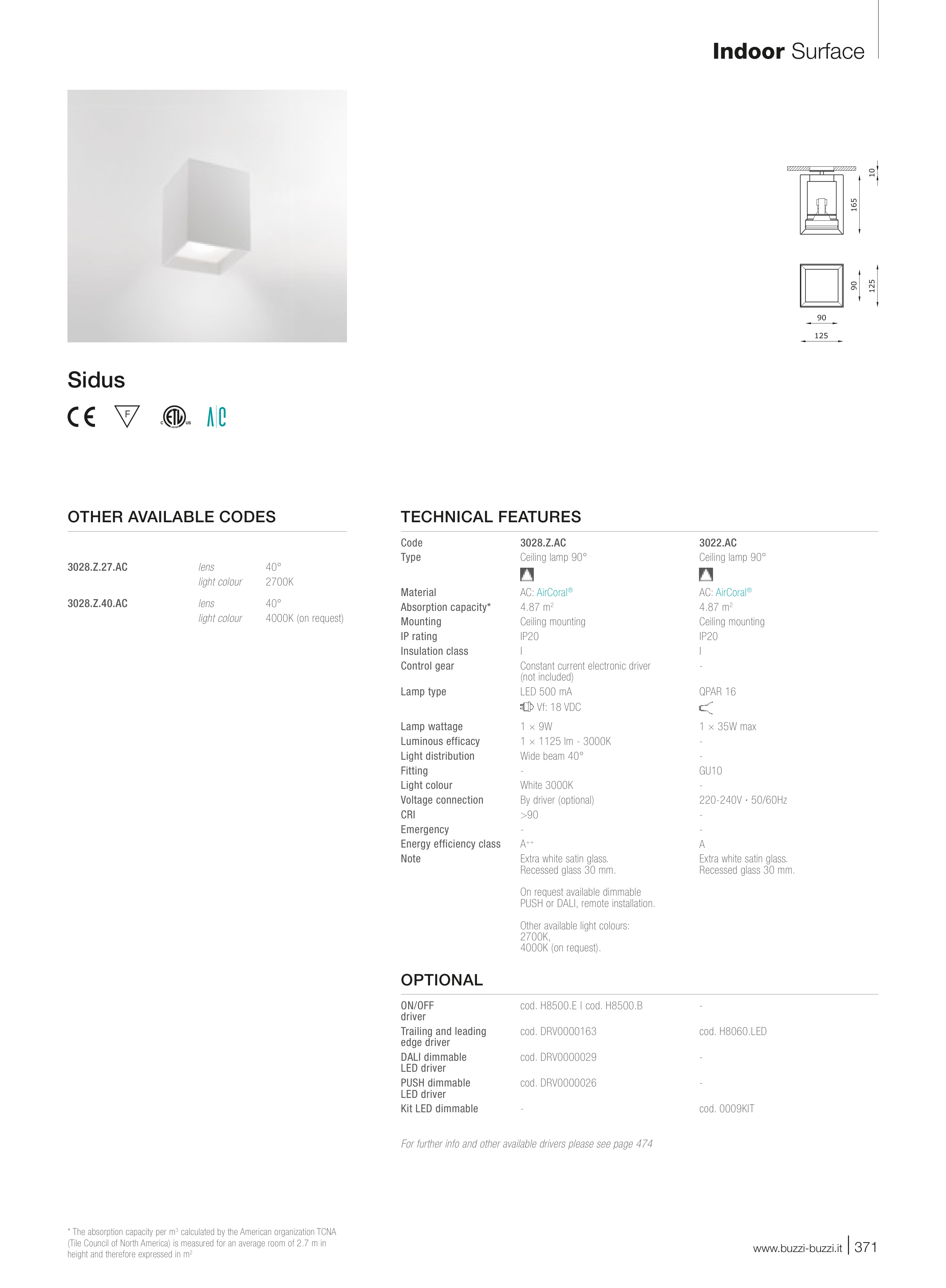

Sidus
OTHER AVAILABLE CODES
3028.Z.27.AC
lens
40°
light colour
2700K
3028.Z.40.AC
lens
40°
light colour
4000K (on request)
www.buzzi-buzzi.it | 371
Indoor Surface
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
