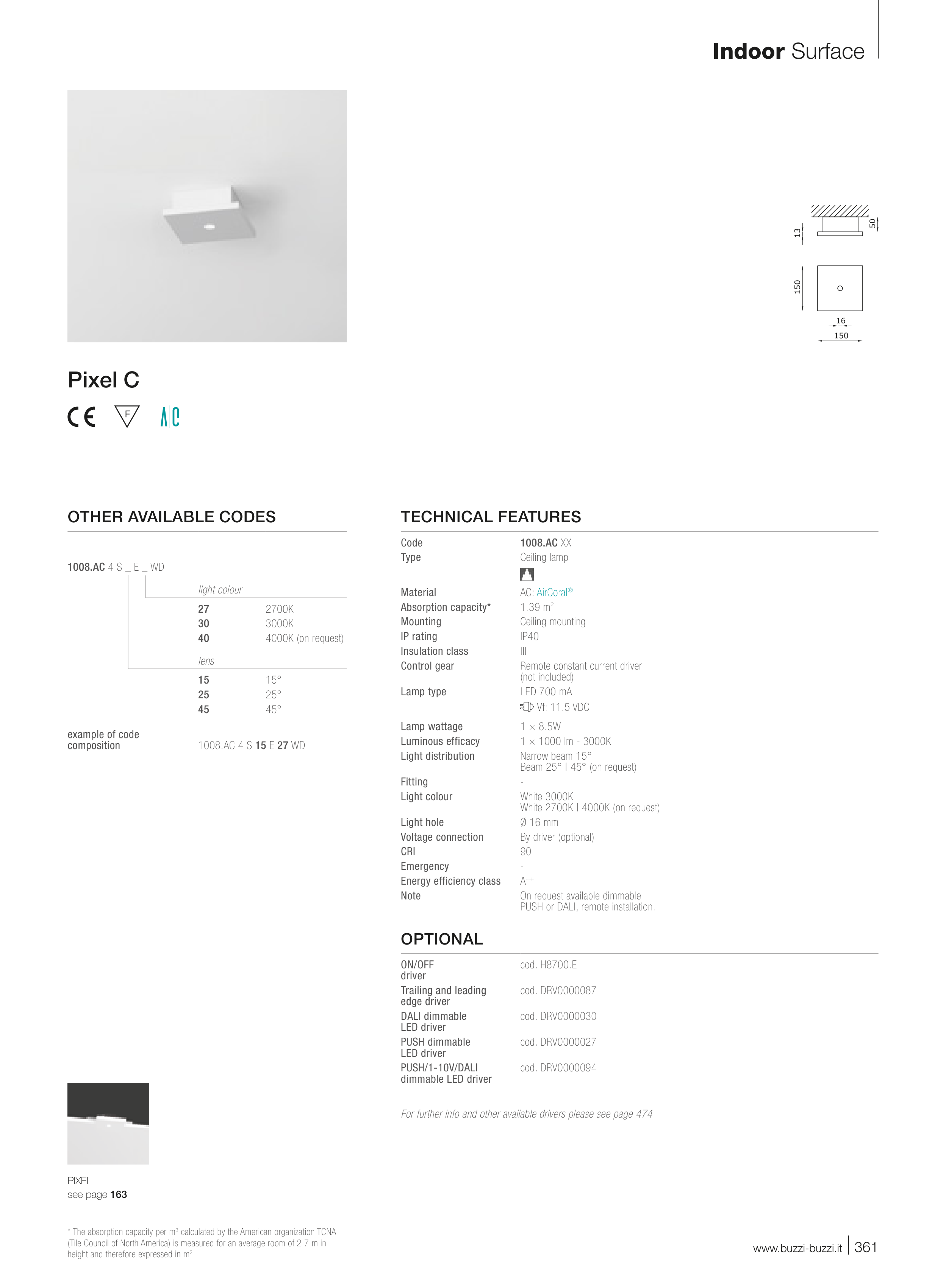

Pixel C
TECHNICAL FEATURES
Code
1008.AC XX
Type
Ceiling lamp
Material
AC: AirCoral®
Absorption capacity*
1.39 m2
Mounting
Ceiling mounting
IP rating
IP40
Insulation class
III
Control gear
Remote constant current driver
(not included)
Lamp type
LED 700 mA
Vf: 11.5 VDC
Lamp wattage
1 × 8.5W
Luminous efficacy
1 × 1000 lm - 3000K
Light distribution
Narrow beam 15°
Beam 25° | 45° (on request)
Fitting
-
Light colour
White 3000K
White 2700K | 4000K (on request)
Light hole
Ø 16 mm
Voltage connection
By driver (optional)
CRI
90
Emergency
-
Energy efficiency class
A++
Note
On request available dimmable
PUSH or DALI, remote installation.
OPTIONAL
ON/OFF
driver
cod. H8700.E
Trailing and leading
edge driver
cod. DRV0000087
DALI dimmable
LED driver
cod. DRV0000030
PUSH dimmable
LED driver
cod. DRV0000027
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000094
For further info and other available drivers please see page 474
PIXEL
see page 163
OTHER AVAILABLE CODES
1008.AC 4 S _ E _ WD
light colour
27
2700K
30
3000K
40
4000K (on request)
lens
15
15°
25
25°
45
45°
example of code
composition
1008.AC 4 S 15 E 27 WD
www.buzzi-buzzi.it | 361
Indoor Surface
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
