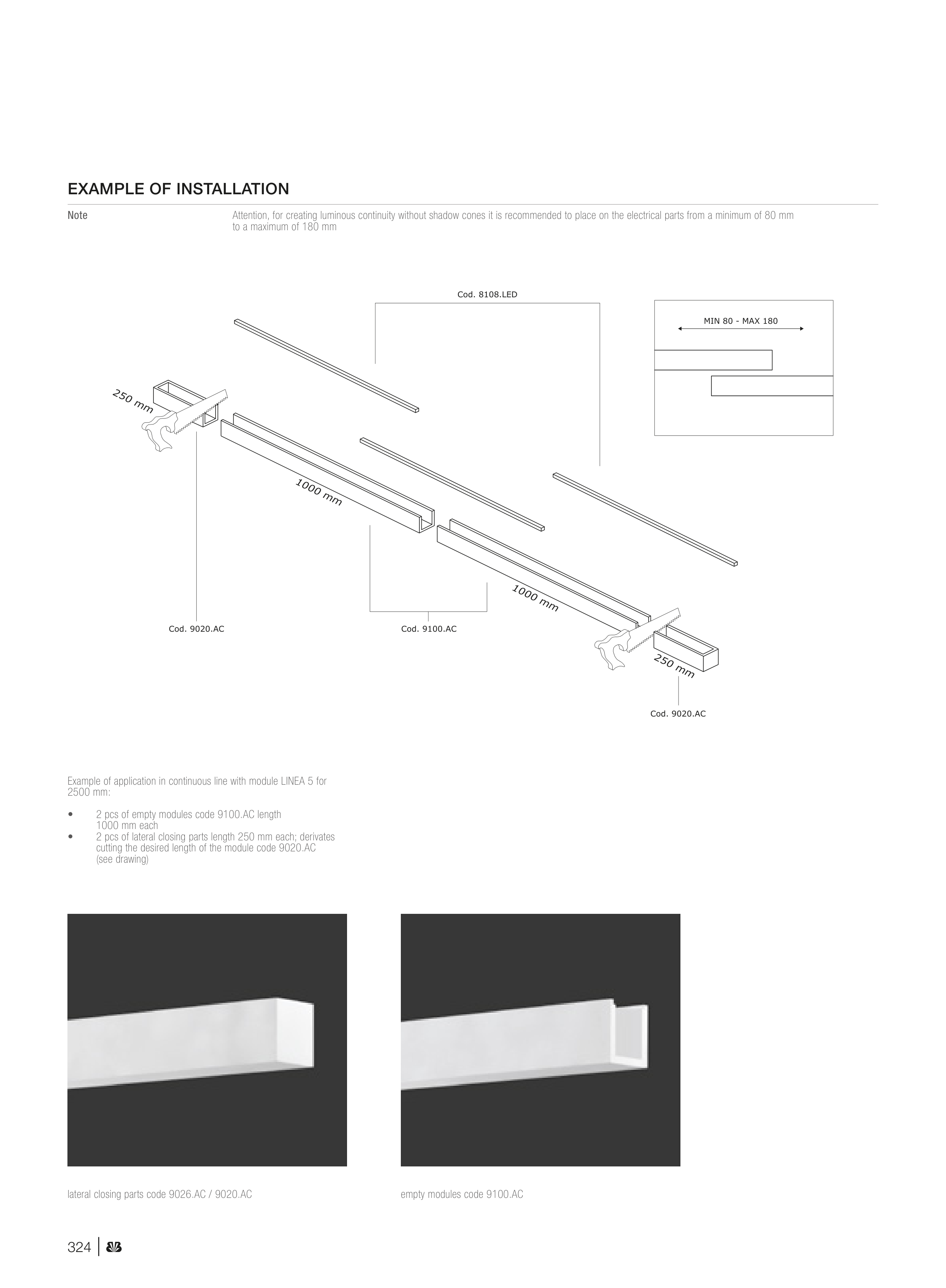

Example of application in continuous line with module LINEA 5 for
2500 mm:
•
2 pcs of empty modules code 9100.AC length
1000 mm each
•
2 pcs of lateral closing parts length 250 mm each; derivates
cutting the desired length of the module code 9020.AC
(see drawing)
EXAMPLE OF INSTALLATION
Note
Attention, for creating luminous continuity without shadow cones it is recommended to place on the electrical parts from a minimum of 80 mm
to a maximum of 180 mm
lateral closing parts code 9026.AC / 9020.AC
empty modules code 9100.AC
Cod. 8108.LED
Cod. 9020.AC
Cod. 9020.AC
Cod. 9100.AC
MIN 80 - MAX 180
