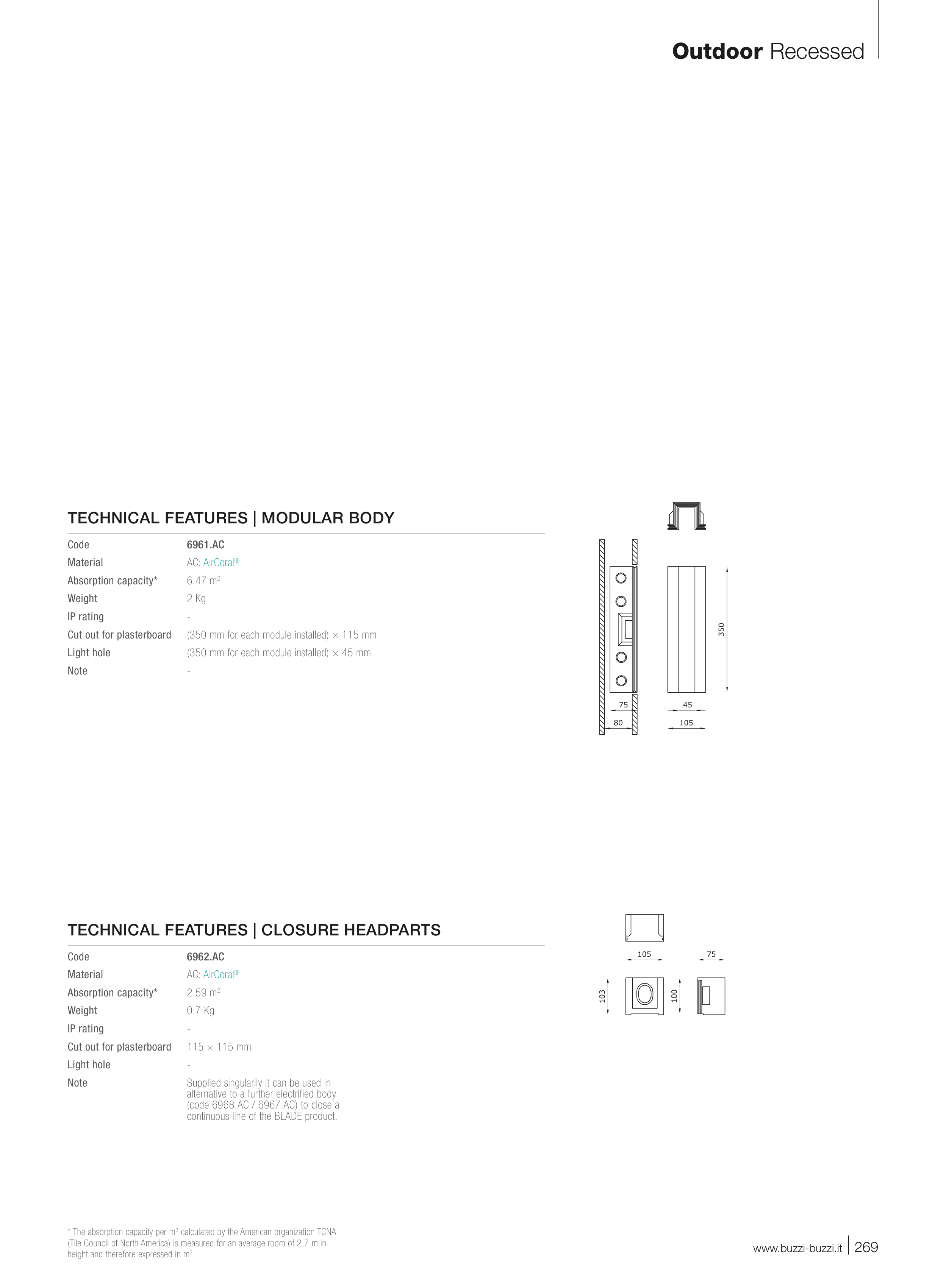

TECHNICAL FEATURES | MODULAR BODY
Code
6961.AC
Material
AC: AirCoral®
Absorption capacity*
6.47 m2
Weight
2 Kg
IP rating
-
Cut out for plasterboard
(350 mm for each module installed) × 115 mm
Light hole
(350 mm for each module installed) × 45 mm
Note
-
TECHNICAL FEATURES | CLOSURE HEADPARTS
Code
6962.AC
Material
AC: AirCoral®
Absorption capacity*
2.59 m2
Weight
0.7 Kg
IP rating
-
Cut out for plasterboard
115 × 115 mm
Light hole
-
Note
Supplied singularily it can be used in
alternative to a further electrified body
(code 6968.AC / 6967.AC) to close a
continuous line of the BLADE product.
www.buzzi-buzzi.it | 269
Outdoor Recessed
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
