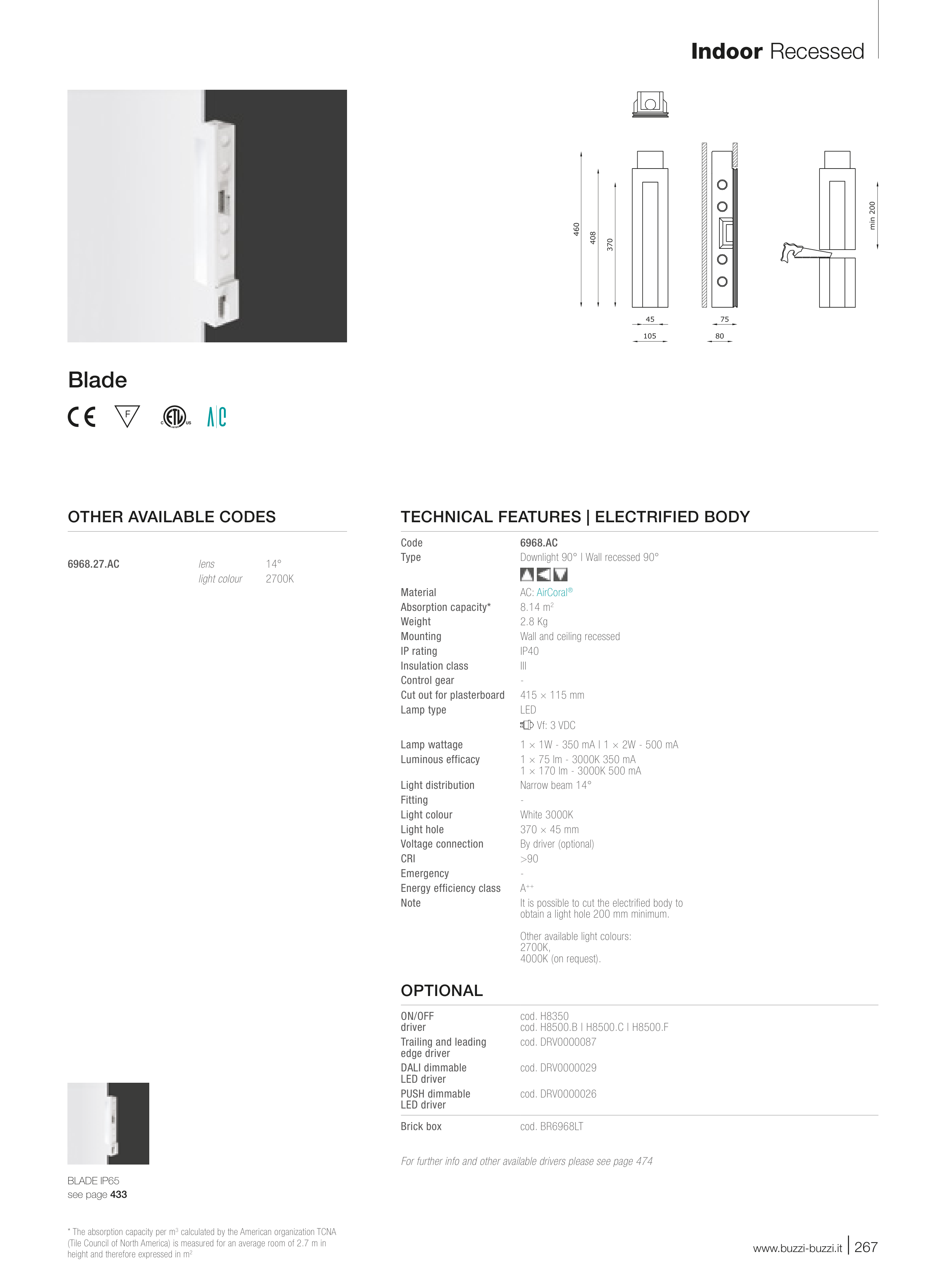

TECHNICAL FEATURES | ELECTRIFIED BODY
Code
6968.AC
Type
Downlight 90° | Wall recessed 90°
Material
AC: AirCoral®
Absorption capacity*
8.14 m2
Weight
2.8 Kg
Mounting
Wall and ceiling recessed
IP rating
IP40
Insulation class
III
Control gear
-
Cut out for plasterboard
415 × 115 mm
Lamp type
LED
Vf: 3 VDC
Lamp wattage
1 × 1W - 350 mA | 1 × 2W - 500 mA
Luminous efficacy
1 × 75 lm - 3000K 350 mA
1 × 170 lm - 3000K 500 mA
Light distribution
Narrow beam 14°
Fitting
-
Light colour
White 3000K
Light hole
370 × 45 mm
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Energy efficiency class
A++
Note
It is possible to cut the electrified body to
obtain a light hole 200 mm minimum.
Other available light colours:
2700K,
4000K (on request).
OPTIONAL
ON/OFF
driver
cod. H8350
cod. H8500.B | H8500.C | H8500.F
Trailing and leading
edge driver
cod. DRV0000087
DALI dimmable
LED driver
cod. DRV0000029
PUSH dimmable
LED driver
cod. DRV0000026
Brick box
cod. BR6968LT
For further info and other available drivers please see page 474
Blade
BLADE IP65
see page 433
OTHER AVAILABLE CODES
6968.27.AC
lens
14°
light colour
2700K
460
www.buzzi-buzzi.it | 267
Indoor Recessed
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
