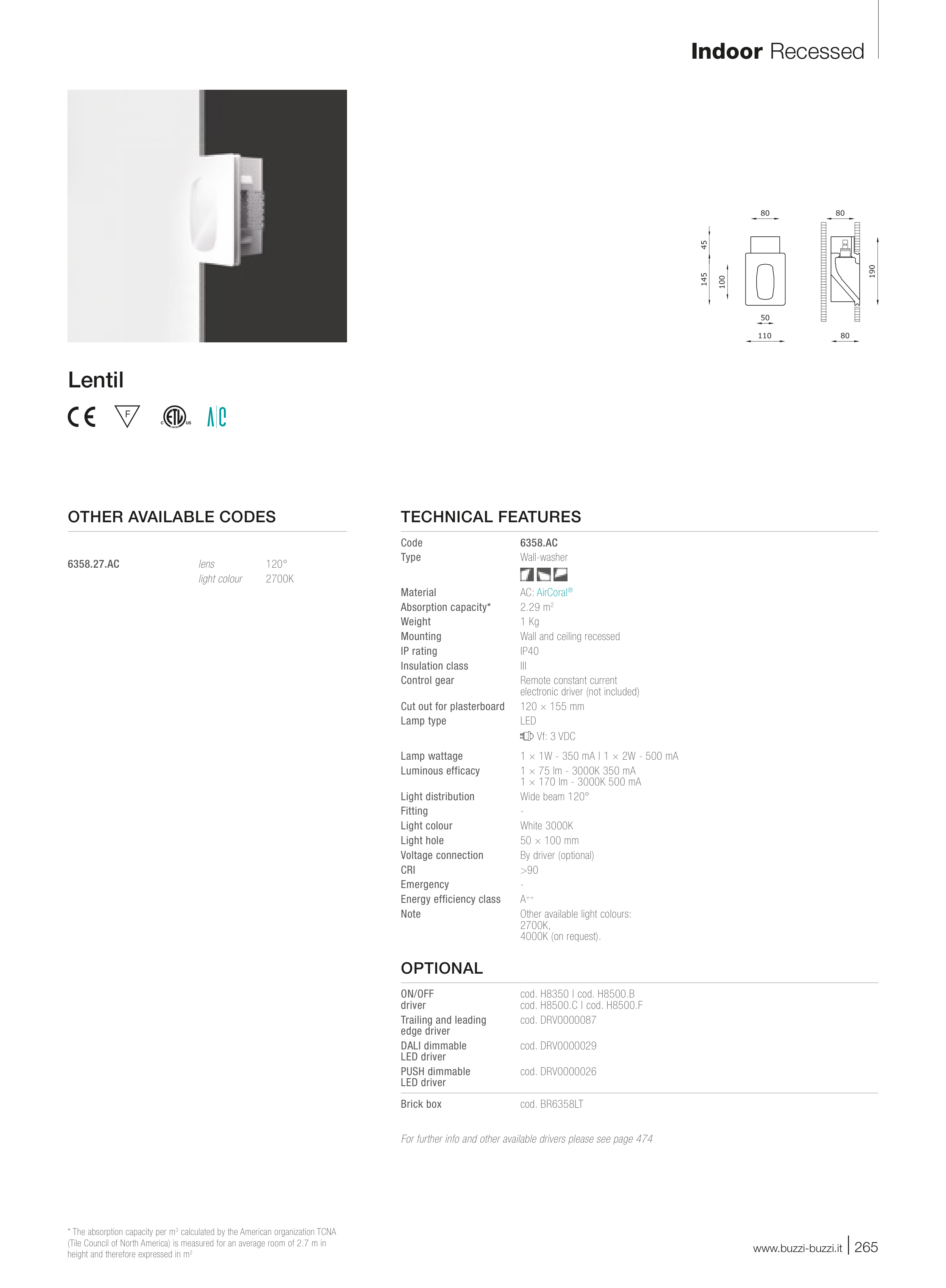

TECHNICAL FEATURES
Code
6358.AC
Type
Wall-washer
Material
AC: AirCoral®
Absorption capacity*
2.29 m2
Weight
1 Kg
Mounting
Wall and ceiling recessed
IP rating
IP40
Insulation class
III
Control gear
Remote constant current
electronic driver (not included)
Cut out for plasterboard
120 × 155 mm
Lamp type
LED
Vf: 3 VDC
Lamp wattage
1 × 1W - 350 mA | 1 × 2W - 500 mA
Luminous efficacy
1 × 75 lm - 3000K 350 mA
1 × 170 lm - 3000K 500 mA
Light distribution
Wide beam 120°
Fitting
-
Light colour
White 3000K
Light hole
50 × 100 mm
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Energy efficiency class
A++
Note
Other available light colours:
2700K,
4000K (on request).
OPTIONAL
ON/OFF
driver
cod. H8350 | cod. H8500.B
cod. H8500.C | cod. H8500.F
Trailing and leading
edge driver
cod. DRV0000087
DALI dimmable
LED driver
cod. DRV0000029
PUSH dimmable
LED driver
cod. DRV0000026
Brick box
cod. BR6358LT
For further info and other available drivers please see page 474
Lentil
OTHER AVAILABLE CODES
6358.27.AC
lens
120°
light colour
2700K
www.buzzi-buzzi.it | 265
Indoor Recessed
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
