TECHNICAL FEATURES
Code
6181.AC
6183.AC
Type
Downlight 90°
Downlight 90°
Material
AC: AirCoral®
AC: AirCoral®
Absorption capacity*
7.72 m2
7.72 m2
Weight
3.2 Kg
3.2 Kg
Mounting
Ceiling recessed
Ceiling recessed
IP rating
IP40
IP40
Insulation class
I
I
Control gear
ON/OFF driver (included)
Dimmable constant current driver
(included)
Cut out for plasterboard
245 × 245 mm
245 × 245 mm
Lamp type
LED 1050 mA
LED 500 mA
Lamp wattage
1 × 40W
2 × 6.5W
Luminous efficacy
1 × 4680 lm - 3000K
2 × 930 lm - 3000K
Light distribution
Wide beam 40°
Wide beam 120°
Fitting
-
-
Light colour
White 3000K
White 3000K
Light hole
175 × 175 mm
175 × 175 mm
Voltage connection
220-240V ∙ 50/60Hz
220-240V ∙ 50/60Hz
CRI
>90
>90
Emergency
-
-
Energy efficiency class
A++
A+
Note
Extra white satin glass. Frosted glass
recessed 30 mm into the ceiling.
Other available light colours:
2700K,
4000K (on request).
Extra white satin glass. Frosted glass
recessed 30 mm into the ceiling.
Trailing-edge and leading-edge dimming
(20 - 100%).
Other available light colours:
2700K,
4000K (on request).

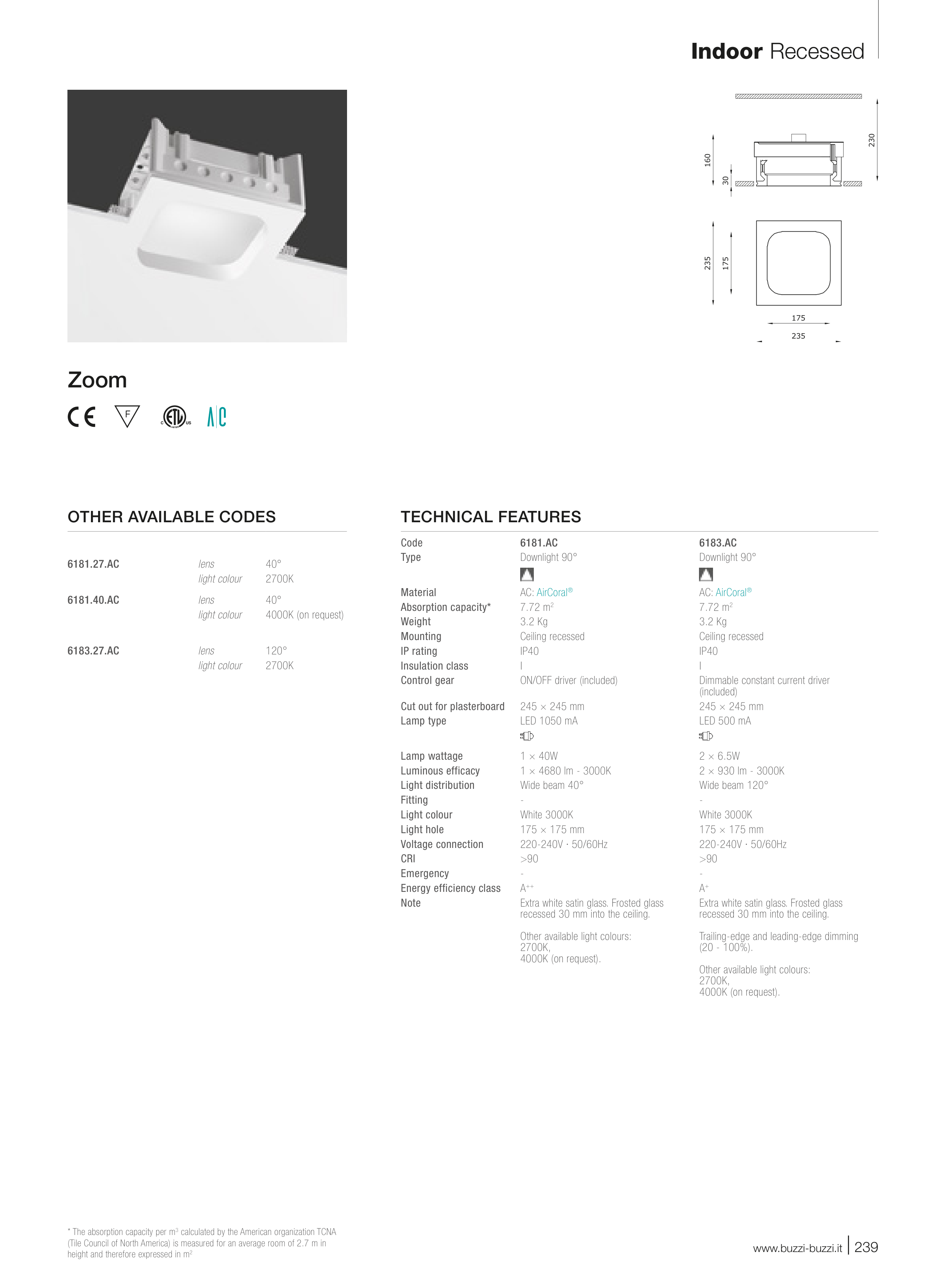

Zoom
OTHER AVAILABLE CODES
6181.27.AC
lens
40°
light colour
2700K
6181.40.AC
lens
40°
light colour
4000K (on request)
6183.27.AC
lens
120°
light colour
2700K
www.buzzi-buzzi.it | 239
Indoor Recessed
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
