TECHNICAL FEATURES
Code
6216.AC 4 R 40 E 98 WD
Type
Downlight 90°
Material
AC: AirCoral®
Absorption capacity*
4.07 m2
Weight
1.6 Kg
Mounting
Ceiling recessed
IP rating
IP40
Insulation class
III
Control gear
Remote ON/OFF driver** (not included)
Dimensions
A: 140 mm; B: 160 mm
Cut out for plasterboard
155 × 155 mm
Lamp type
LED 350 mA
Vf: 17 VDC
Lamp wattage
1 × 6W
Luminous efficacy
1 × 600 lm (from 1800K up to 3000K)
Light distribution
Wide beam 40°
Fitting
-
Light colour
Dimming range 1800/3000K
Light hole
90 × 90 mm
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Energy efficiency class
A++
Note
Extra white satin glass. Frosted glass
recessed 30 mm into the ceiling.
**Nefi Dim To Warm requires dimming:
amplitude (AM) dim to warm wide range
input voltage.
OPTIONAL
Amplitude DALI
dimmable LED driver
H8350DA.AM
Amplitude PUSH
dimmable LED driver
H8350PH.AM
Brick box
cod. BR6216LT
For further info and other available drivers please see page 474

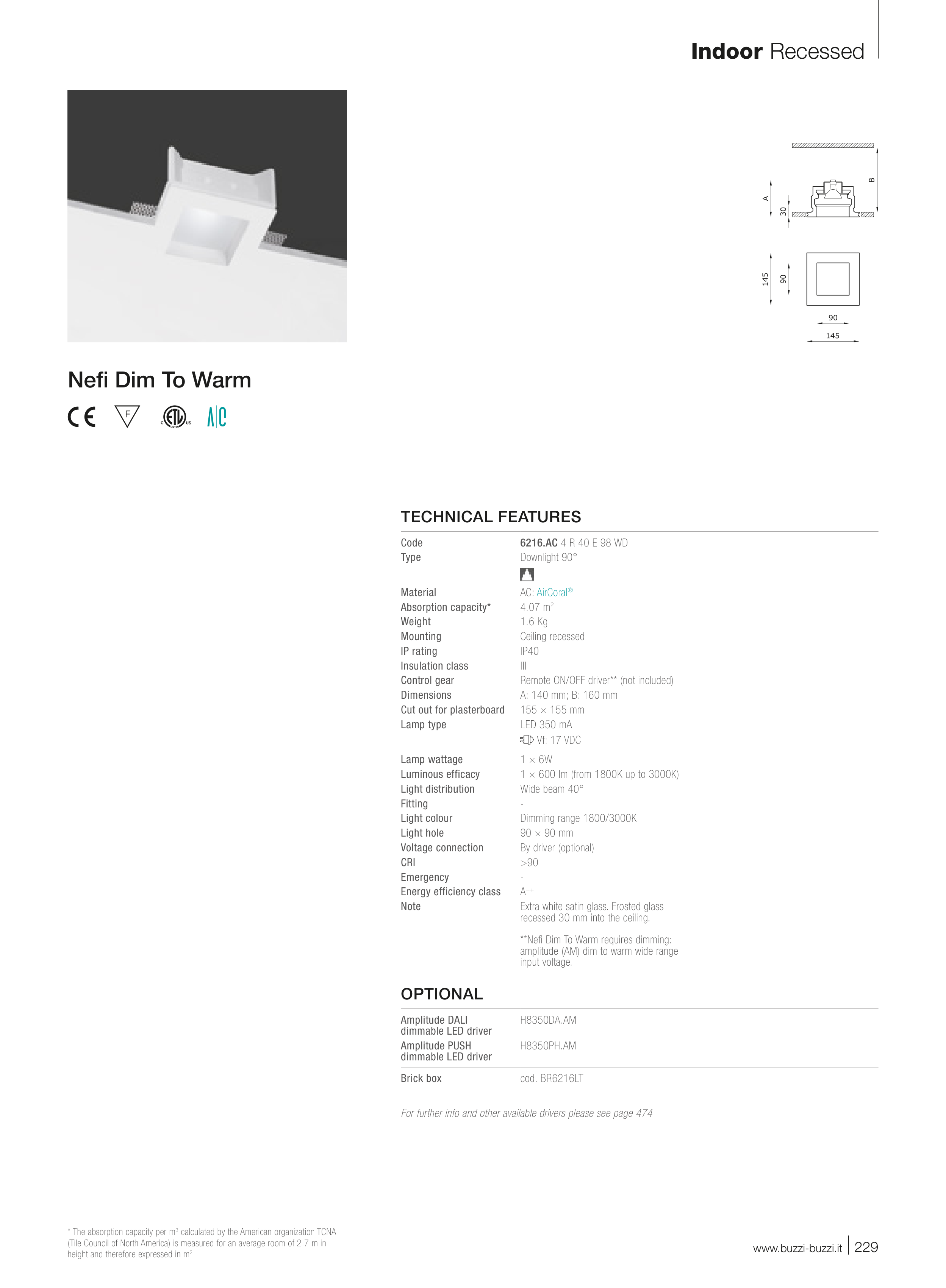

Nefi Dim To Warm
www.buzzi-buzzi.it | 229
Indoor Recessed
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
