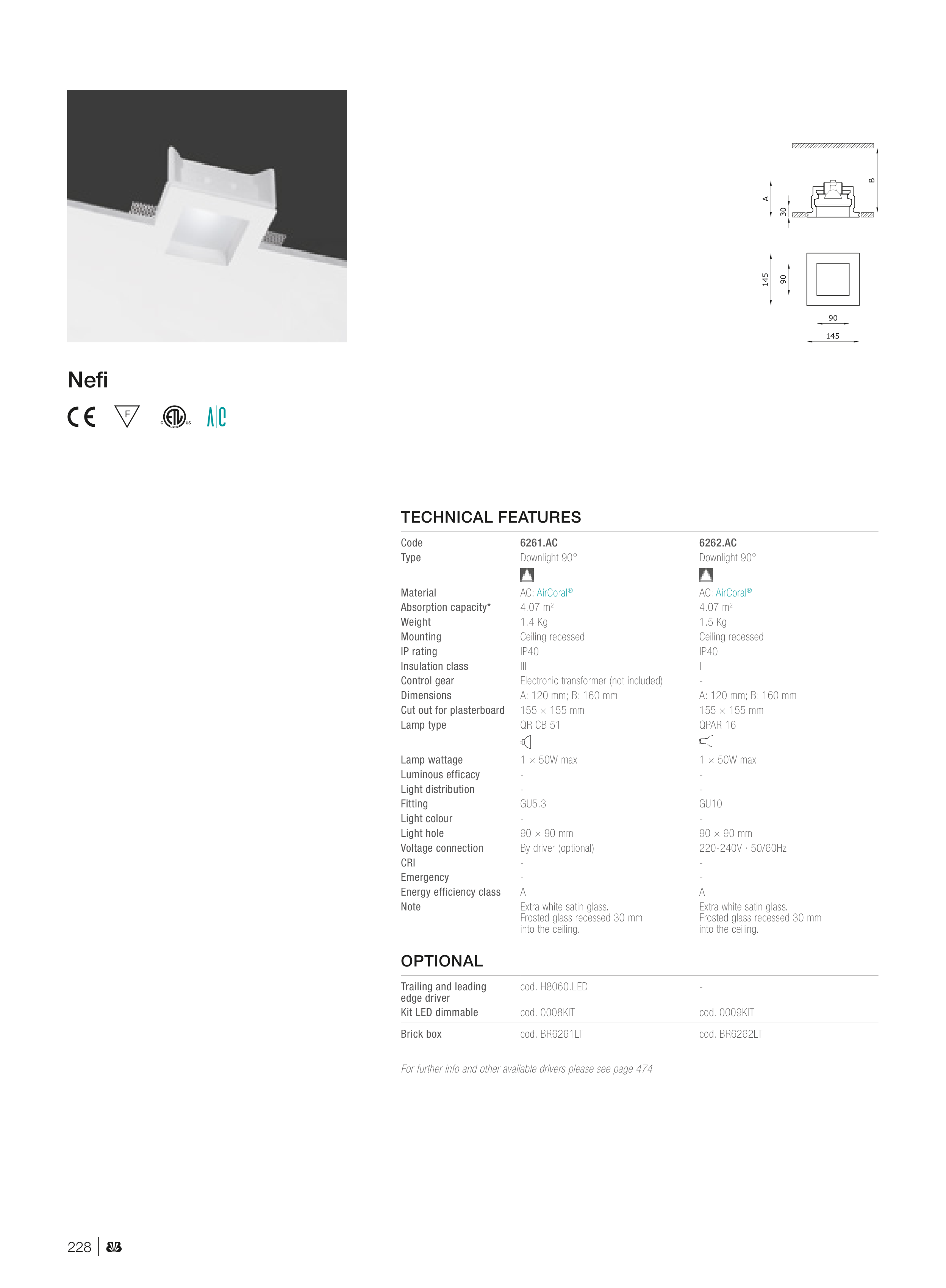

TECHNICAL FEATURES
Code
6261.AC
6262.AC
Type
Downlight 90°
Downlight 90°
Material
AC: AirCoral®
AC: AirCoral®
Absorption capacity*
4.07 m2
4.07 m2
Weight
1.4 Kg
1.5 Kg
Mounting
Ceiling recessed
Ceiling recessed
IP rating
IP40
IP40
Insulation class
III
I
Control gear
Electronic transformer (not included)
-
Dimensions
A: 120 mm; B: 160 mm
A: 120 mm; B: 160 mm
Cut out for plasterboard
155 × 155 mm
155 × 155 mm
Lamp type
QR CB 51
QPAR 16
Lamp wattage
1 × 50W max
1 × 50W max
Luminous efficacy
-
-
Light distribution
-
-
Fitting
GU5.3
GU10
Light colour
-
-
Light hole
90 × 90 mm
90 × 90 mm
Voltage connection
By driver (optional)
220-240V · 50/60Hz
CRI
-
-
Emergency
-
-
Energy efficiency class
A
A
Note
Extra white satin glass.
Frosted glass recessed 30 mm
into the ceiling.
Extra white satin glass.
Frosted glass recessed 30 mm
into the ceiling.
OPTIONAL
Trailing and leading
edge driver
cod. H8060.LED
-
Kit LED dimmable
cod. 0008KIT
cod. 0009KIT
Brick box
cod. BR6261LT
cod. BR6262LT
For further info and other available drivers please see page 474
Nefi
228 |
