TECHNICAL FEATURES
Code
6246.Z.AC
6242.AC
Type
Tiltable downlight ± 30°
Tiltable downlight ± 30°
Material
AC: AirCoral®
AC: AirCoral®
Absorption capacity*
8.29 m2
8.29 m2
Weight
2.7 Kg
2.7 Kg
Mounting
Ceiling recessed
Ceiling recessed
IP rating
IP20
IP20
Insulation class
III
III
Control gear
Remote constant current
electronic driver (not included)
Electronic transformer
(not included)
Cut out for plasterboard
390 × 160 mm
390 × 160 mm
Lamp type
LED 500 mA
QR CB 51
Vf: 3 × 18 VDC
Lamp wattage
3 × 9W
3 × 50W max
Luminous efficacy
3 × 1125 lm - 3000K
-
Light distribution
Wide beam 40°
-
Fitting
-
GU5.3
Light colour
White 3000K
-
Light hole
320 × 90 mm
320 × 90 mm
Voltage connection
By driver (optional)
By driver (optional)
CRI
>90
-
Emergency
-
-
Energy efficiency class
A++
A
Note
On request available emergency.
Other available light colours:
2700K,
4000K (on request).
-
OPTIONAL
ON/OFF
driver
cod. H8500.E
-
Trailing and leading
edge driver
cod. DRV0000163
cod. H8060.LED
DALI dimmable
LED driver
cod. DRV0000029
-
PUSH dimmable
LED driver
cod. DRV0000026
-
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000093
-
Dimmable electronic
transformer
-
cod. H8150
Kit LED dimmable
-
cod. 0008KIT
For further info and other available drivers please see page 474

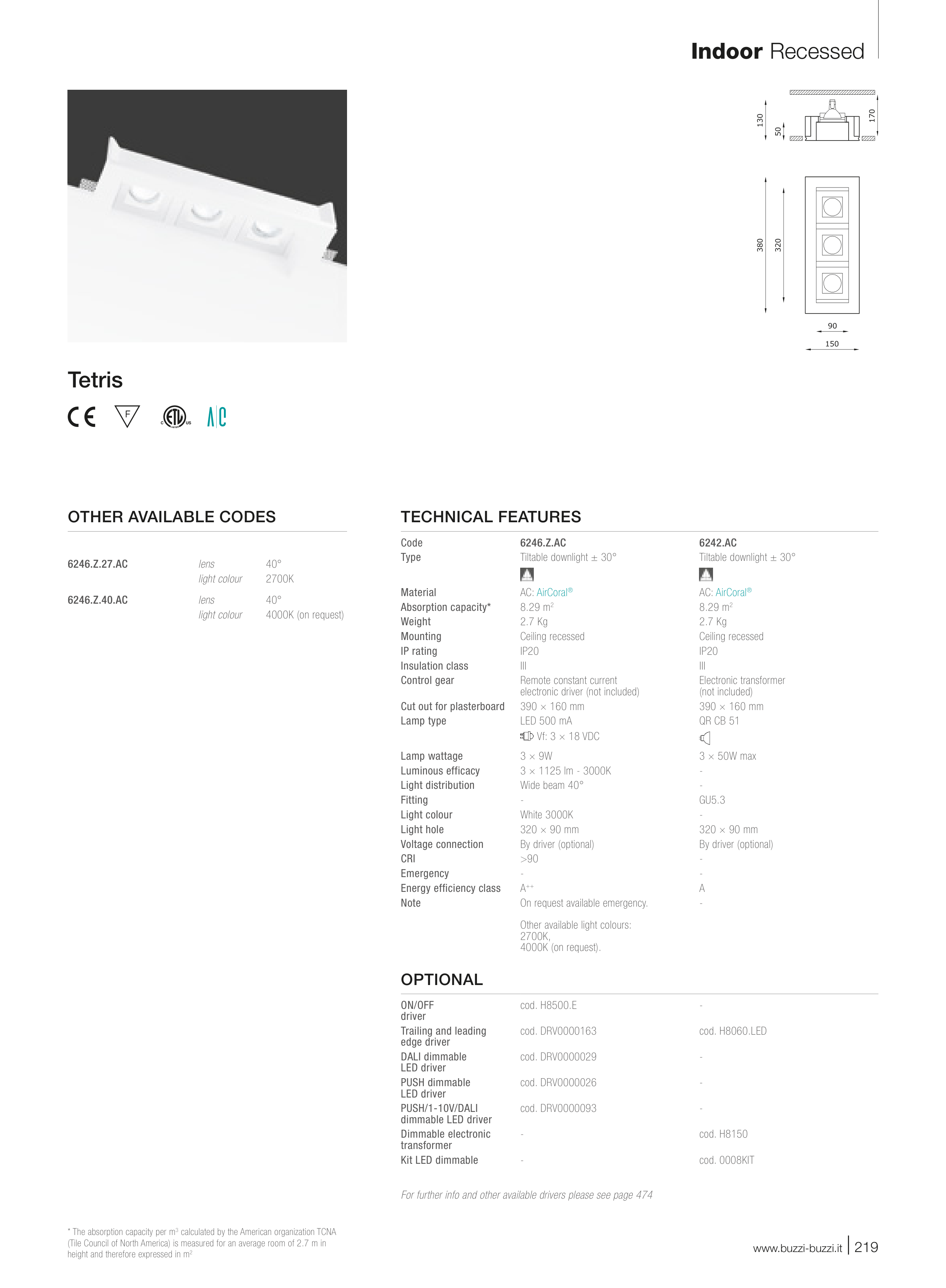

Tetris
OTHER AVAILABLE CODES
6246.Z.27.AC
lens
40°
light colour
2700K
6246.Z.40.AC
lens
40°
light colour
4000K (on request)
www.buzzi-buzzi.it | 219
Indoor Recessed
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
