TECHNICAL FEATURES
Code
6316.AC 7 R 40 E 98 WD
Type
Tiltable downlight
and wall recessed ± 30°
Material
AC: AirCoral®
Absorption capacity*
3.07 m2
Weight
1.3 Kg
Mounting
Wall and ceiling recessed
IP rating
IP20
Insulation class
III
Control gear
Remote ON/OFF driver** (not included)
Dimensions
A: 130 mm
Cut out for plasterboard
160 × 160 mm
Lamp type
LED 350 mA
Vf: 17 VDC
Lamp wattage
1 × 6W
Luminous efficacy
1 × 600 lm (from 1800K up to 3000K)
Light distribution
Wide beam 40°
Fitting
-
Light colour
Dimming range 1800/3000K
Light hole
90 × 90 mm
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Energy efficiency class
A++
Note
**Jacobox Dim To Warm requires dimming:
amplitude (AM) dim to warm wide range
input voltage.
OPTIONAL
Amplitude DALI
dimmable LED driver
H8350DA.AM
Amplitude PUSH
dimmable LED driver
H8350PH.AM
Brick box
cod. BR1875LT
For further info and other available drivers please see page 474

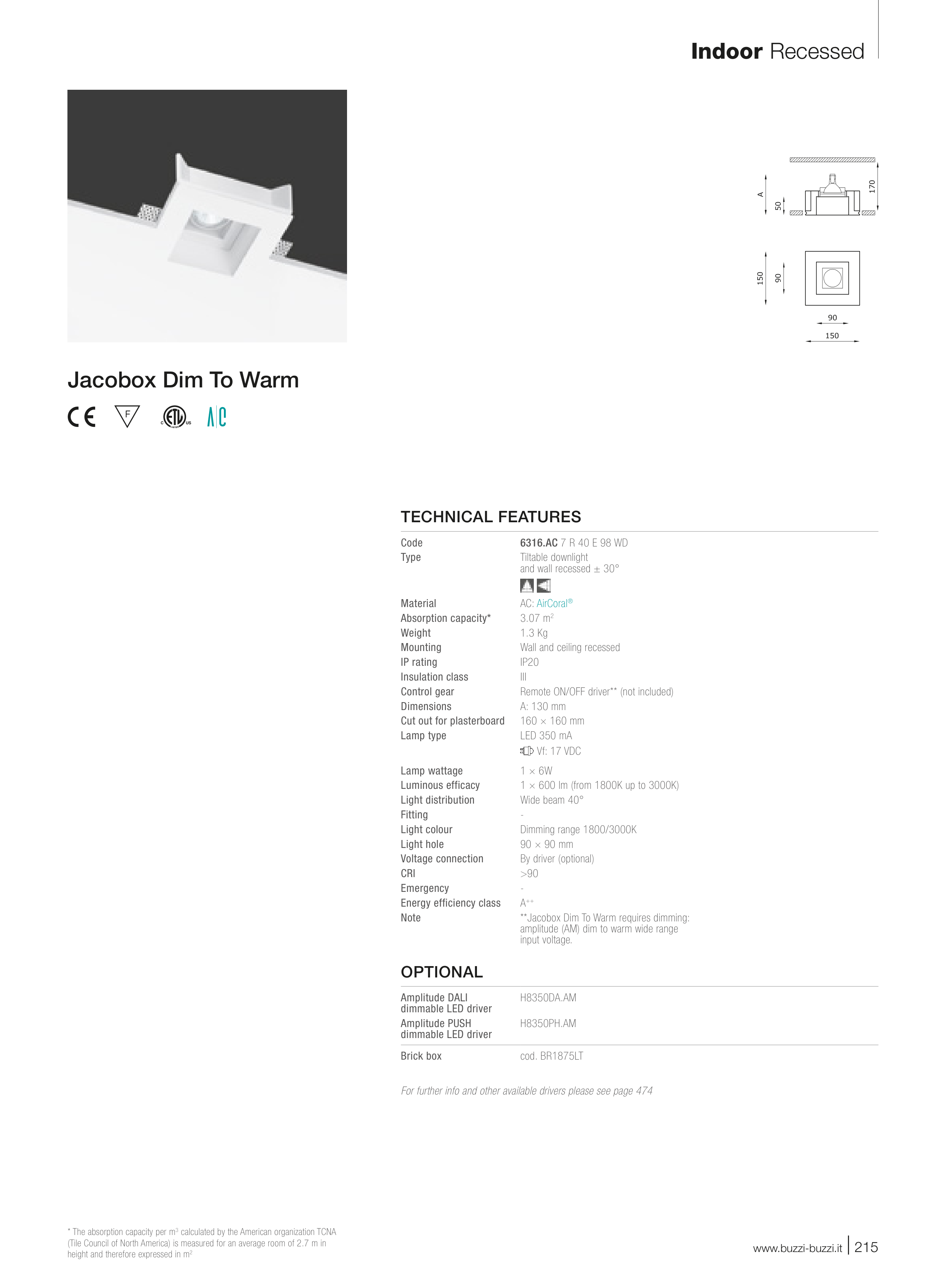

Jacobox Dim To Warm
www.buzzi-buzzi.it | 215
Indoor Recessed
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
