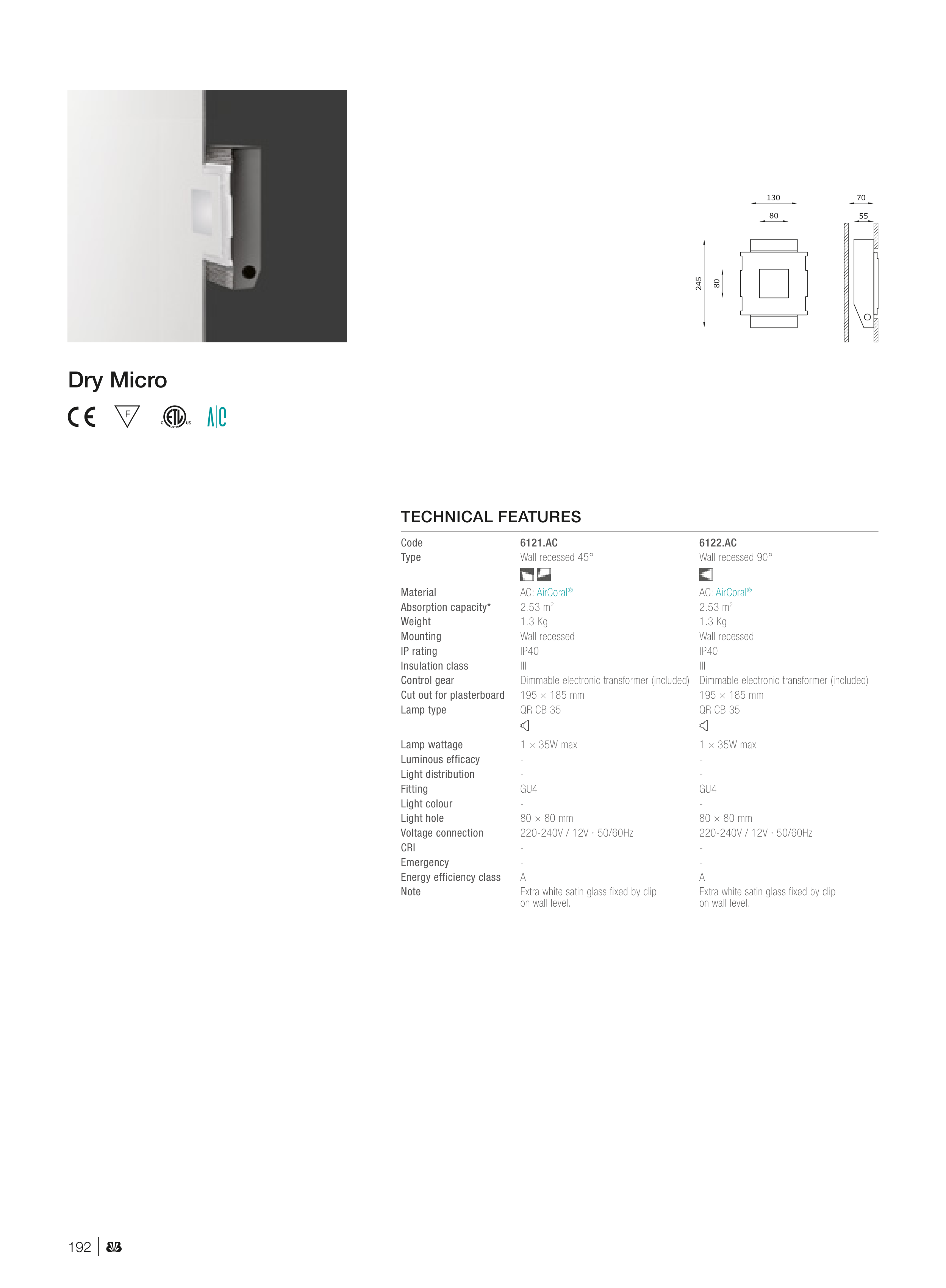

Dry Micro
TECHNICAL FEATURES
Code
6121.AC
6122.AC
Type
Wall recessed 45°
Wall recessed 90°
Material
AC: AirCoral®
AC: AirCoral®
Absorption capacity*
2.53 m2
2.53 m2
Weight
1.3 Kg
1.3 Kg
Mounting
Wall recessed
Wall recessed
IP rating
IP40
IP40
Insulation class
III
III
Control gear
Dimmable electronic transformer (included)
Dimmable electronic transformer (included)
Cut out for plasterboard
195 × 185 mm
195 × 185 mm
Lamp type
QR CB 35
QR CB 35
Lamp wattage
1 × 35W max
1 × 35W max
Luminous efficacy
-
-
Light distribution
-
-
Fitting
GU4
GU4
Light colour
-
-
Light hole
80 × 80 mm
80 × 80 mm
Voltage connection
220-240V / 12V · 50/60Hz
220-240V / 12V · 50/60Hz
CRI
-
-
Emergency
-
-
Energy efficiency class
A
A
Note
Extra white satin glass fixed by clip
on wall level.
Extra white satin glass fixed by clip
on wall level.
