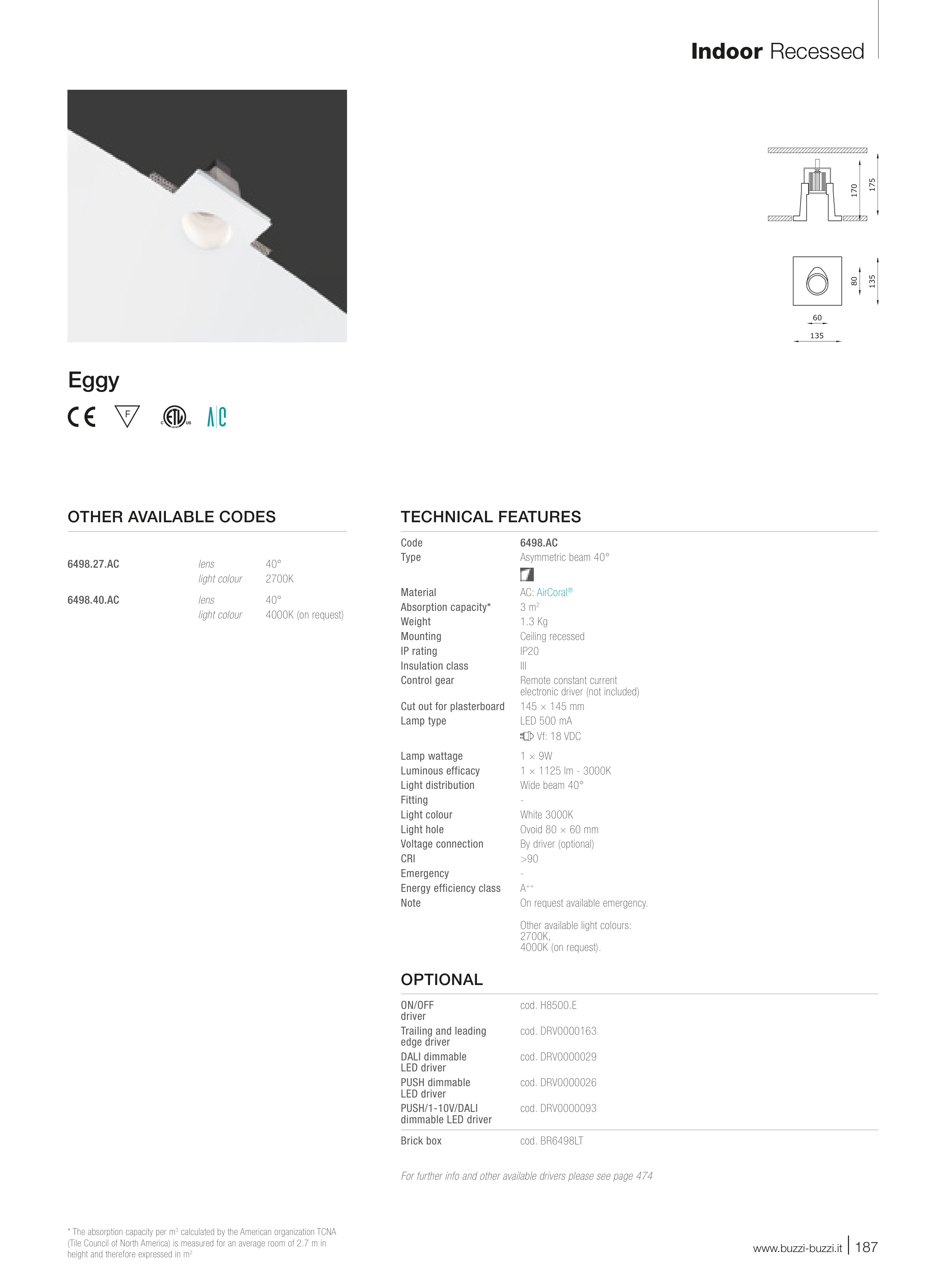

Eggy
TECHNICAL FEATURES
Code
6498.AC
Type
Asymmetric beam 40°
Material
AC: AirCoral®
Absorption capacity*
3 m2
Weight
1.3 Kg
Mounting
Ceiling recessed
IP rating
IP20
Insulation class
III
Control gear
Remote constant current
electronic driver (not included)
Cut out for plasterboard
145 × 145 mm
Lamp type
LED 500 mA
Vf: 18 VDC
Lamp wattage
1 × 9W
Luminous efficacy
1 × 1125 lm - 3000K
Light distribution
Wide beam 40°
Fitting
-
Light colour
White 3000K
Light hole
Ovoid 80 × 60 mm
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Energy efficiency class
A++
Note
On request available emergency.
Other available light colours:
2700K,
4000K (on request).
OPTIONAL
ON/OFF
driver
cod. H8500.E
Trailing and leading
edge driver
cod. DRV0000163
DALI dimmable
LED driver
cod. DRV0000029
PUSH dimmable
LED driver
cod. DRV0000026
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000093
Brick box
cod. BR6498LT
For further info and other available drivers please see page 474
OTHER AVAILABLE CODES
6498.27.AC
lens
40°
light colour
2700K
6498.40.AC
lens
40°
light colour
4000K (on request)
www.buzzi-buzzi.it | 187
Indoor Recessed
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
