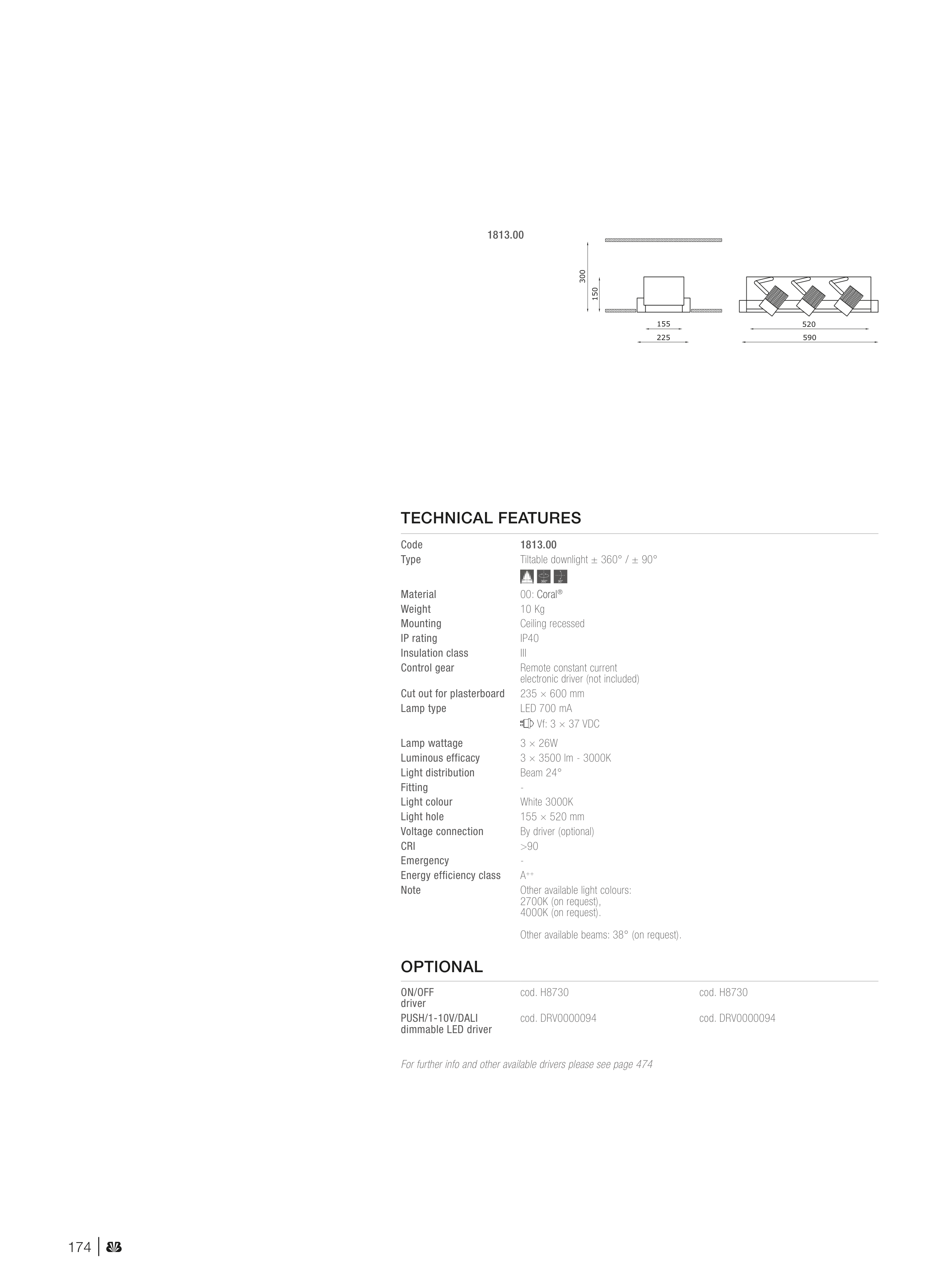

TECHNICAL FEATURES
Code
1813.00
Type
Tiltable downlight ± 360° / ± 90°
Material
00: Coral®
Weight
10 Kg
Mounting
Ceiling recessed
IP rating
IP40
Insulation class
III
Control gear
Remote constant current
electronic driver (not included)
Cut out for plasterboard
235 × 600 mm
Lamp type
LED 700 mA
Vf: 3 × 37 VDC
Lamp wattage
3 × 26W
Luminous efficacy
3 × 3500 lm - 3000K
Light distribution
Beam 24°
Fitting
-
Light colour
White 3000K
Light hole
155 × 520 mm
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Energy efficiency class
A++
Note
Other available light colours:
2700K (on request),
4000K (on request).
Other available beams: 38° (on request).
OPTIONAL
ON/OFF
driver
cod. H8730
cod. H8730
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000094
cod. DRV0000094
For further info and other available drivers please see page 474
225
155
590
520
150
300
1813.00
174 |
