TECHNICAL FEATURES
Code
1833.00
1836.00
Type
Tiltable downlight ± 360° / ± 90°
Tiltable downlight ± 360° / ± 90°
Material
00: Coral®
00: Coral®
Finishing
Black
White
Weight
2.1 Kg
2.1 Kg
Mounting
Wall and ceiling recessed
Wall and ceiling recessed
IP rating
IP40
IP40
Insulation class
III
III
Control gear
Remote constant current
electronic driver (not included)
Remote constant current
electronic driver (not included)
Cut out for plasterboard
270 × 120 mm
270 × 120 mm
Lamp type
LED 500 mA
LED 500 mA
Vf: 3 × 11 VDC
Vf: 3 × 11 VDC
Lamp wattage
3 × 6W
3 × 6W
Luminous efficacy
3 × 520 lm - 3000K
3 × 520 lm - 3000K
Light distribution
Beam 22°
Beam 22°
Fitting
-
-
Light colour
White 3000K
White 3000K
Light hole
50 × 50 mm
50 × 50 mm
Voltage connection
By driver (optional)
By driver (optional)
CRI
>90
>90
Emergency
-
-
Energy efficiency class
A++
A++
Note
Other available light colours:
2700K,
4000K (on request).
Other available beams: 50° (on request).
Other available light colours:
2700K,
4000K (on request).
Other available beams: 50° (on request).
OPTIONAL
ON/OFF
driver
cod. H8500.E
cod. H8500.E
Trailing and leading
edge driver
cod. DRV0000163
cod. DRV0000163
DALI dimmable
LED driver
cod. DRV0000029
cod. DRV0000029
PUSH dimmable
LED driver
cod. DRV0000026
cod. DRV0000026
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000093
cod. DRV0000093
Honeycomb screen
cod. ACC0047
cod. ACC0047
For further info and other available drivers please see page 474
OTHER AVAILABLE CODES
1833.00. B 2 22 E 40 WD
lens
22°
light colour
4000K (on request)
1836.00 2 22 E 27 WD
lens
22°
light colour
2700K

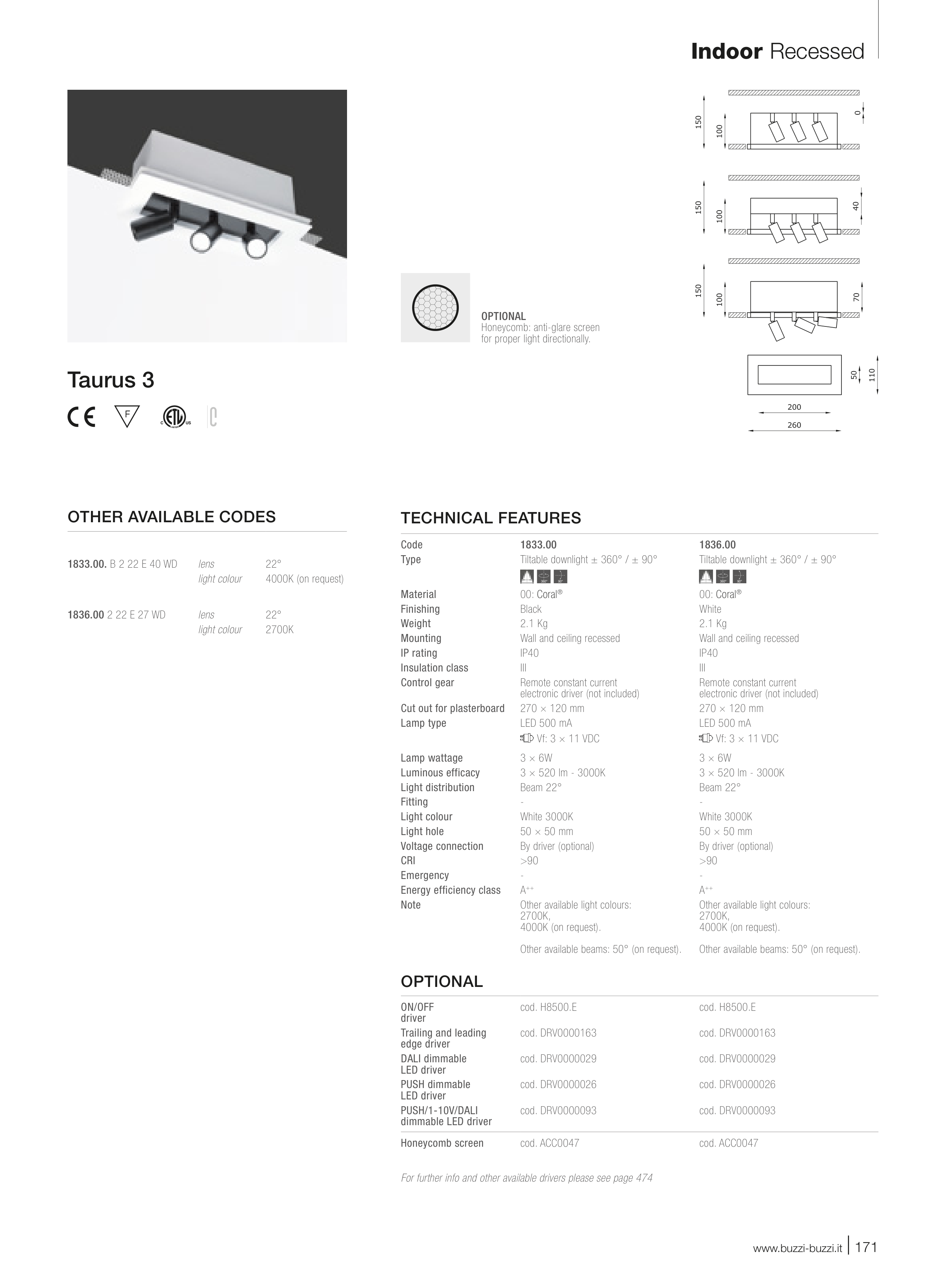

Taurus 3
OPTIONAL
Honeycomb: anti-glare screen
for proper light directionally.
www.buzzi-buzzi.it | 171
Indoor Recessed
