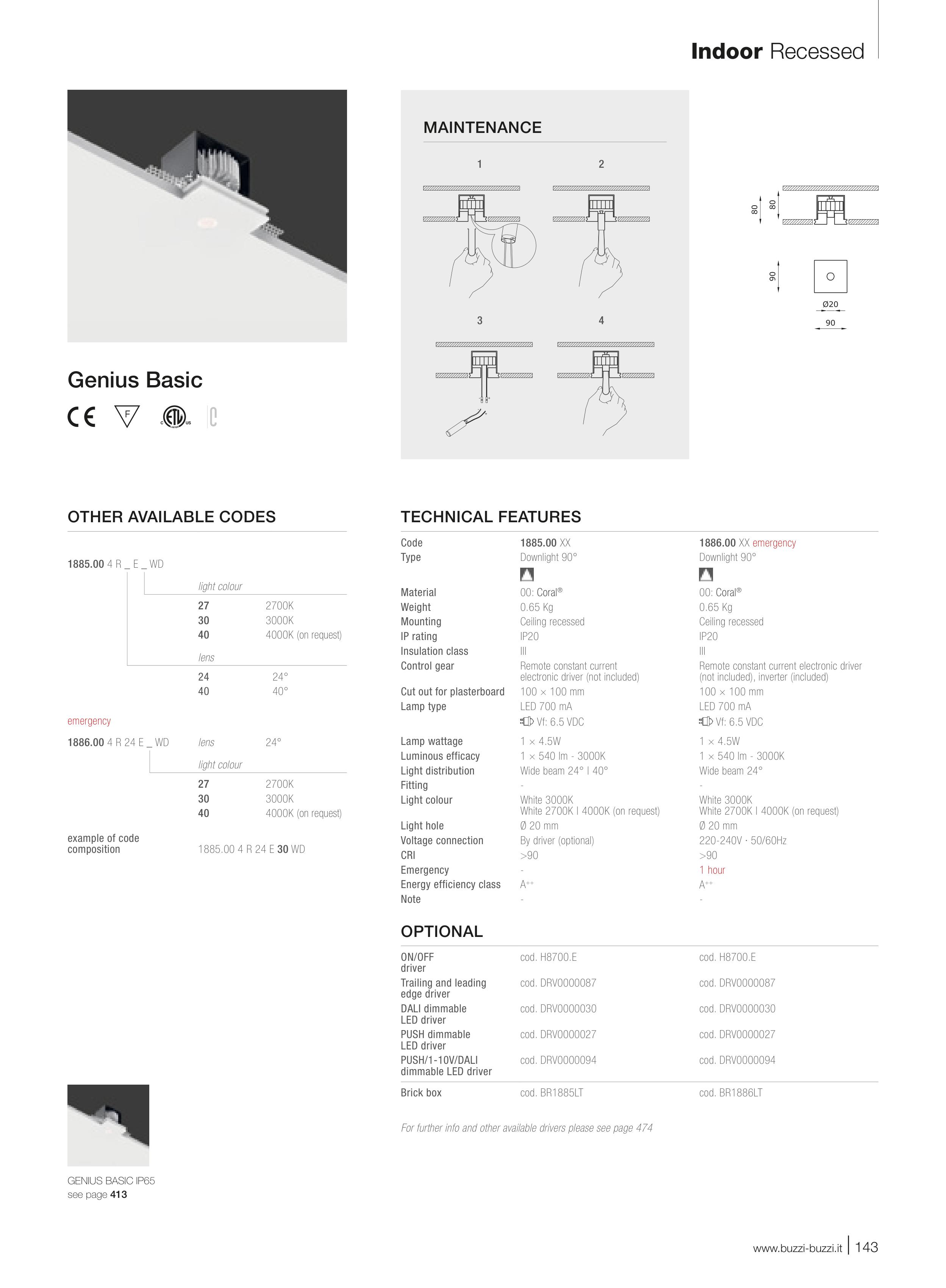

Genius Basic
OTHER AVAILABLE CODES
1885.00 4 R _ E _ WD
light colour
27
2700K
30
3000K
40
4000K (on request)
lens
24
24°
40
40°
emergency
1886.00 4 R 24 E _ WD
lens
24°
light colour
27
2700K
30
3000K
40
4000K (on request)
example of code
composition
1885.00 4 R 24 E 30 WD
TECHNICAL FEATURES
Code
1885.00 XX
1886.00 XX emergency
Type
Downlight 90°
Downlight 90°
Material
00: Coral®
00: Coral®
Weight
0.65 Kg
0.65 Kg
Mounting
Ceiling recessed
Ceiling recessed
IP rating
IP20
IP20
Insulation class
III
III
Control gear
Remote constant current
electronic driver (not included)
Remote constant current electronic driver
(not included), inverter (included)
Cut out for plasterboard
100 × 100 mm
100 × 100 mm
Lamp type
LED 700 mA
LED 700 mA
Vf: 6.5 VDC
Vf: 6.5 VDC
Lamp wattage
1 × 4.5W
1 × 4.5W
Luminous efficacy
1 × 540 lm - 3000K
1 × 540 lm - 3000K
Light distribution
Wide beam 24° | 40°
Wide beam 24°
Fitting
-
-
Light colour
White 3000K
White 2700K | 4000K (on request)
White 3000K
White 2700K | 4000K (on request)
Light hole
Ø 20 mm
Ø 20 mm
Voltage connection
By driver (optional)
220-240V · 50/60Hz
CRI
>90
>90
Emergency
-
1 hour
Energy efficiency class
A++
A++
Note
-
-
OPTIONAL
ON/OFF
driver
cod. H8700.E
cod. H8700.E
Trailing and leading
edge driver
cod. DRV0000087
cod. DRV0000087
DALI dimmable
LED driver
cod. DRV0000030
cod. DRV0000030
PUSH dimmable
LED driver
cod. DRV0000027
cod. DRV0000027
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000094
cod. DRV0000094
Brick box
cod. BR1885LT
cod. BR1886LT
For further info and other available drivers please see page 474
GENIUS BASIC IP65
see page 413
MAINTENANCE
1
2
3
4
