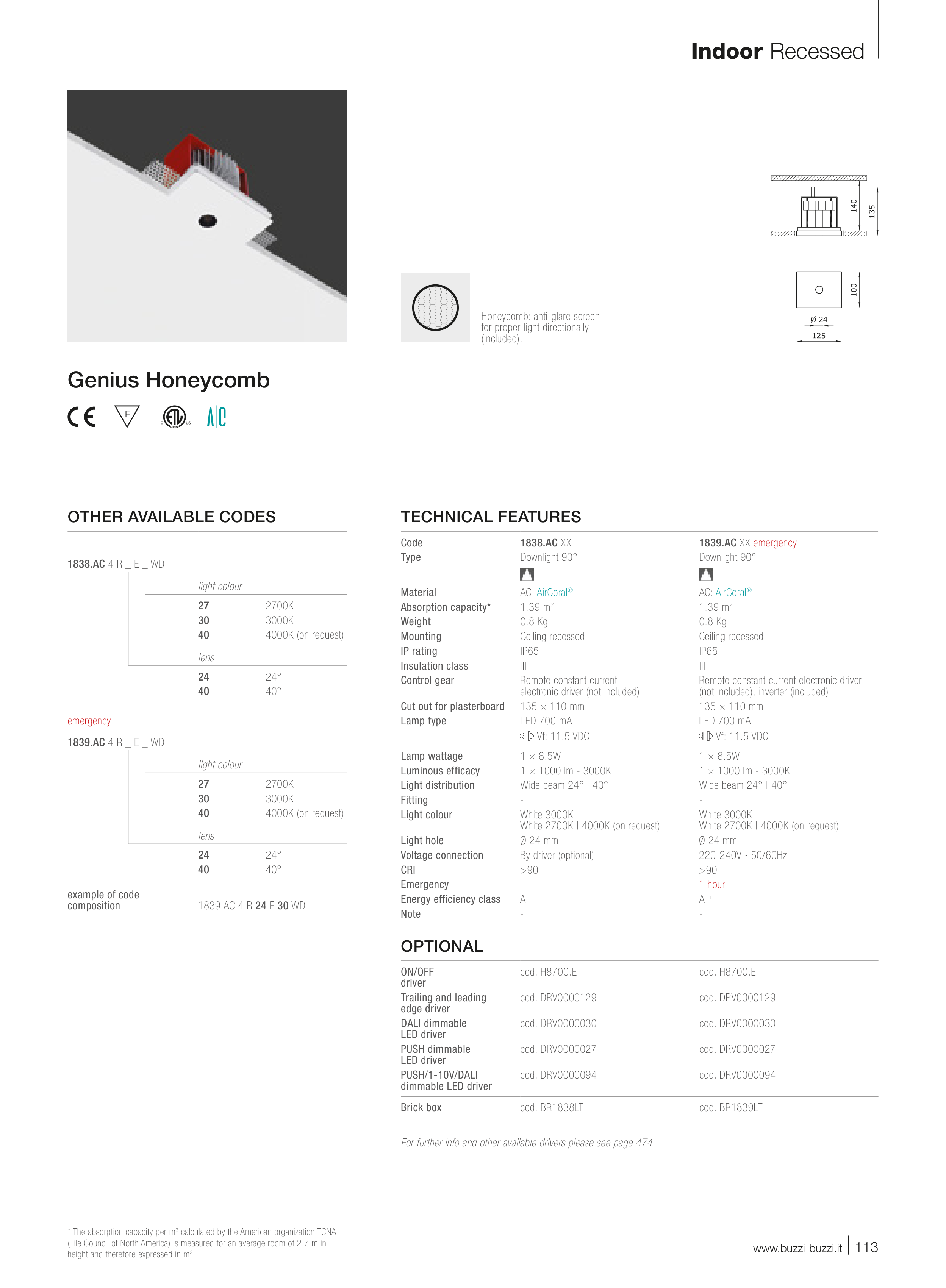

Genius Honeycomb
TECHNICAL FEATURES
Code
1838.AC XX
1839.AC XX emergency
Type
Downlight 90°
Downlight 90°
Material
AC: AirCoral®
AC: AirCoral®
Absorption capacity*
1.39 m2
1.39 m2
Weight
0.8 Kg
0.8 Kg
Mounting
Ceiling recessed
Ceiling recessed
IP rating
IP65
IP65
Insulation class
III
III
Control gear
Remote constant current
electronic driver (not included)
Remote constant current electronic driver
(not included), inverter (included)
Cut out for plasterboard
135 × 110 mm
135 × 110 mm
Lamp type
LED 700 mA
LED 700 mA
Vf: 11.5 VDC
Vf: 11.5 VDC
Lamp wattage
1 × 8.5W
1 × 8.5W
Luminous efficacy
1 × 1000 lm - 3000K
1 × 1000 lm - 3000K
Light distribution
Wide beam 24° | 40°
Wide beam 24° | 40°
Fitting
-
-
Light colour
White 3000K
White 2700K | 4000K (on request)
White 3000K
White 2700K | 4000K (on request)
Light hole
Ø 24 mm
Ø 24 mm
Voltage connection
By driver (optional)
220-240V ∙ 50/60Hz
CRI
>90
>90
Emergency
-
1 hour
Energy efficiency class
A++
A++
Note
-
-
OPTIONAL
ON/OFF
driver
cod. H8700.E
cod. H8700.E
Trailing and leading
edge driver
cod. DRV0000129
cod. DRV0000129
DALI dimmable
LED driver
cod. DRV0000030
cod. DRV0000030
PUSH dimmable
LED driver
cod. DRV0000027
cod. DRV0000027
PUSH/1-10V/DALI
dimmable LED driver
cod. DRV0000094
cod. DRV0000094
Brick box
cod. BR1838LT
cod. BR1839LT
For further info and other available drivers please see page 474
Honeycomb: anti-glare screen
for proper light directionally
(included).
OTHER AVAILABLE CODES
1838.AC 4 R _ E _ WD
light colour
27
2700K
30
3000K
40
4000K (on request)
lens
24
24°
40
40°
emergency
1839.AC 4 R _ E _ WD
light colour
27
2700K
30
3000K
40
4000K (on request)
lens
24
24°
40
40°
example of code
composition
1839.AC 4 R 24 E 30 WD
www.buzzi-buzzi.it | 113
Indoor Recessed
* The absorption capacity per m3 calculated by the American organization TCNA
(Tile Council of North America) is measured for an average room of 2.7 m in
height and therefore expressed in m2
