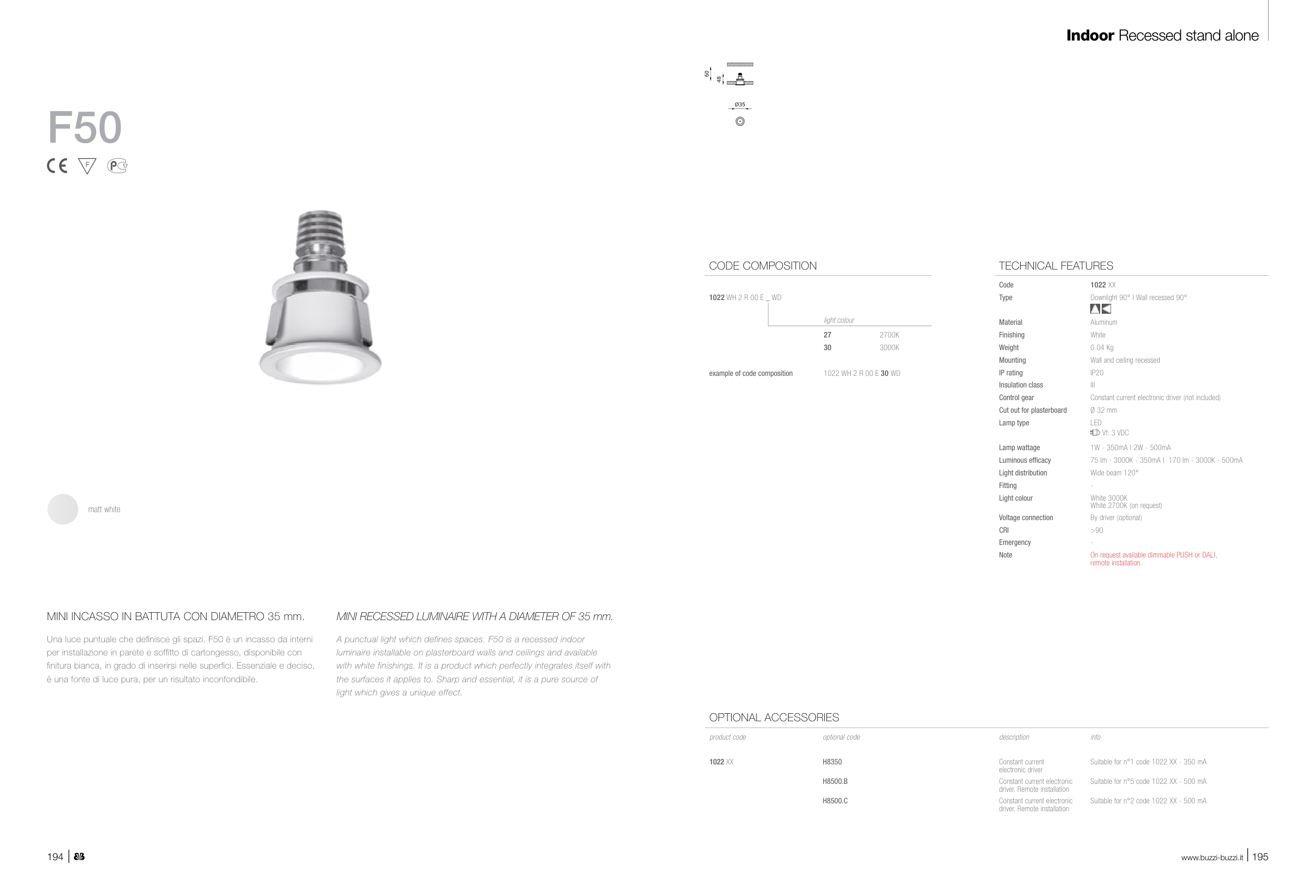

F50
TECHNICAL FEATURES
Code
1022 XX
Type
Downlight 90° | Wall recessed 90°
Material
Aluminum
Finishing
White
Weight
0.04 Kg
Mounting
Wall and ceiling recessed
IP rating
IP20
Insulation class
III
Control gear
Constant current electronic driver (not included)
Cut out for plasterboard
Ø 32 mm
Lamp type
LED
Vf: 3 VDC
Lamp wattage
1W - 350mA | 2W - 500mA
Luminous efficacy
75 lm - 3000K - 350mA | 170 lm - 3000K - 500mA
Light distribution
Wide beam 120°
Fitting
-
Light colour
White 3000K
White 2700K (on request)
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Note
On request available dimmable PUSH or DALI,
remote installation.
CODE COMPOSITION
1022 WH 2 R 00 E _ WD
light colour
27
2700K
30
3000K
example of code composition
1022 WH 2 R 00 E 30 WD
OPTIONAL ACCESSORIES
product code
optional code
description
info
1022 XX
H8350
Constant current
electronic driver
Suitable for n°1 code 1022 XX - 350 mA
H8500.B
Constant current electronic
driver. Remote installation
Suitable for n°5 code 1022 XX - 500 mA
H8500.C
Constant current electronic
driver. Remote installation
Suitable for n°2 code 1022 XX - 500 mA
Una luce puntuale che definisce gli spazi. F50 è un incasso da interni
per installazione in parete e soffitto di cartongesso, disponibile con
finitura bianca, in grado di inserirsi nelle superfici. Essenziale e deciso,
è una fonte di luce pura, per un risultato inconfondibile.
A punctual light which defines spaces. F50 is a recessed indoor
luminaire installable on plasterboard walls and ceilings and available
with white finishings. It is a product which perfectly integrates itself with
the surfaces it applies to. Sharp and essential, it is a pure source of
light which gives a unique effect.
matt white
MINI INCASSO IN BATTUTA CON DIAMETRO 35 mm.
MINI RECESSED LUMINAIRE WITH A DIAMETER OF 35 mm.
194 |
www.buzzi-buzzi.it | 195
Indoor Recessed stand alone
