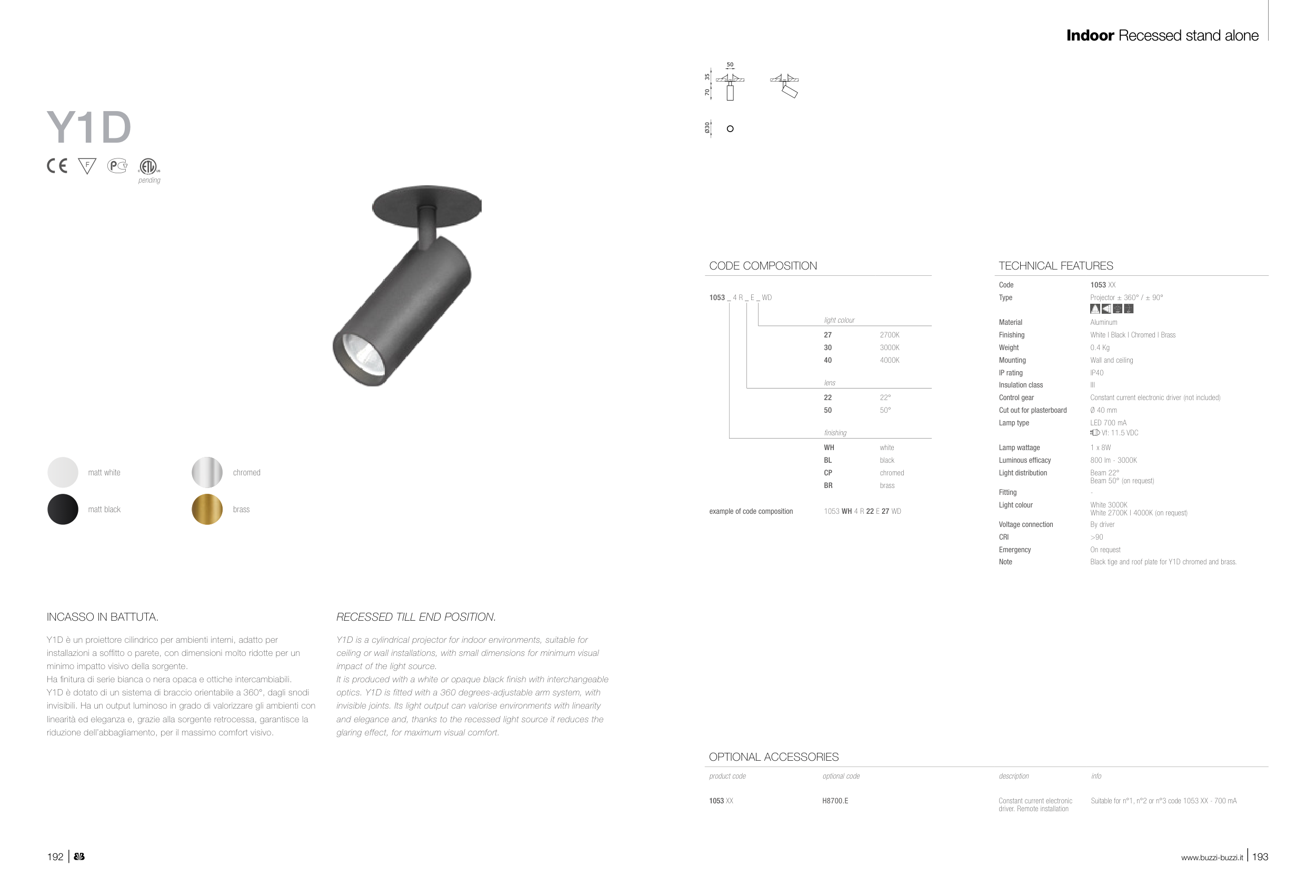

Y1D
CODE COMPOSITION
1053 _ 4 R _ E _ WD
light colour
27
2700K
30
3000K
40
4000K
lens
22
22°
50
50°
finishing
WH
white
BL
black
CP
chromed
BR
brass
example of code composition
1053 WH 4 R 22 E 27 WD
TECHNICAL FEATURES
Code
1053 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black | Chromed | Brass
Weight
0.4 Kg
Mounting
Wall and ceiling
IP rating
IP40
Insulation class
III
Control gear
Constant current electronic driver (not included)
Cut out for plasterboard
Ø 40 mm
Lamp type
LED 700 mA
Vf: 11.5 VDC
Lamp wattage
1 x 8W
Luminous efficacy
800 lm - 3000K
Light distribution
Beam 22°
Beam 50° (on request)
Fitting
-
Light colour
White 3000K
White 2700K | 4000K (on request)
Voltage connection
By driver
CRI
>90
Emergency
On request
Note
Black tige and roof plate for Y1D chromed and brass.
Y1D è un proiettore cilindrico per ambienti interni, adatto per
installazioni a soffitto o parete, con dimensioni molto ridotte per un
minimo impatto visivo della sorgente.
Ha finitura di serie bianca o nera opaca e ottiche intercambiabili.
Y1D è dotato di un sistema di braccio orientabile a 360°, dagli snodi
invisibili. Ha un output luminoso in grado di valorizzare gli ambienti con
linearità ed eleganza e, grazie alla sorgente retrocessa, garantisce la
riduzione dell’abbagliamento, per il massimo comfort visivo.
Y1D is a cylindrical projector for indoor environments, suitable for
ceiling or wall installations, with small dimensions for minimum visual
impact of the light source.
It is produced with a white or opaque black finish with interchangeable
optics. Y1D is fitted with a 360 degrees-adjustable arm system, with
invisible joints. Its light output can valorise environments with linearity
and elegance and, thanks to the recessed light source it reduces the
glaring effect, for maximum visual comfort.
OPTIONAL ACCESSORIES
product code
optional code
description
info
1053 XX
H8700.E
Constant current electronic
driver. Remote installation
Suitable for n°1, n°2 or n°3 code 1053 XX - 700 mA
matt white
matt black
chromed
brass
INCASSO IN BATTUTA.
RECESSED TILL END POSITION.
70
Ø30
35
50
pending
