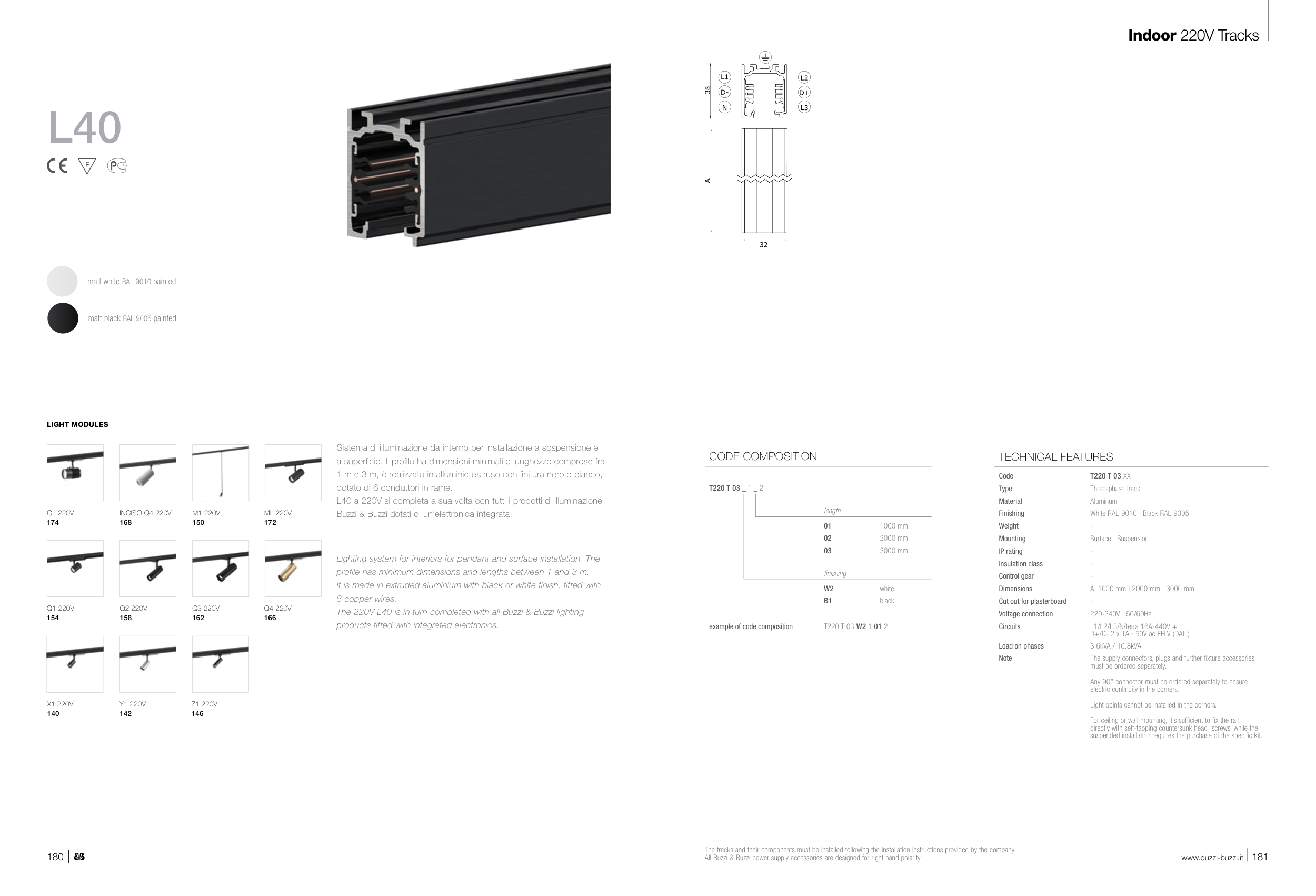

Sistema di illuminazione da interno per installazione a sospensione e
a superficie. Il profilo ha dimensioni minimali e lunghezze comprese fra
1 m e 3 m, è realizzato in alluminio estruso con finitura nero o bianco,
dotato di 6 conduttori in rame.
L40 a 220V si completa a sua volta con tutti i prodotti di illuminazione
Buzzi & Buzzi dotati di un’elettronica integrata.
Lighting system for interiors for pendant and surface installation. The
profile has minimum dimensions and lengths between 1 and 3 m.
It is made in extruded aluminium with black or white finish, fitted with
6 copper wires.
The 220V L40 is in turn completed with all Buzzi & Buzzi lighting
products fitted with integrated electronics.
CODE COMPOSITION
T220 T 03 _ 1 _ 2
length
01
1000 mm
02
2000 mm
03
3000 mm
finishing
W2
white
B1
black
example of code composition
T220 T 03 W2 1 01 2
TECHNICAL FEATURES
Code
T220 T 03 XX
Type
Three-phase track
Material
Aluminum
Finishing
White RAL 9010 | Black RAL 9005
Weight
-
Mounting
Surface | Suspension
IP rating
-
Insulation class
-
Control gear
-
Dimensions
A: 1000 mm | 2000 mm | 3000 mm
Cut out for plasterboard
-
Voltage connection
220-240V · 50/60Hz
Circuits
L1/L2/L3/N/terra 16A-440V +
D+/D- 2 x 1A · 50V ac FELV (DALI)
Load on phases
3.6kVA / 10.8kVA
Note
The supply connectors, plugs and further fixture accessories
must be ordered separately.
Any 90° connector must be ordered separately to ensure
electric continuity in the corners.
Light points cannot be installed in the corners.
For ceiling or wall mounting, it’s sufficient to fix the rail
directly with self-tapping countersunk head screws, while the
suspended installation requires the purchase of the specific kit.
The tracks and their components must be installed following the installation instructions provided by the company.
All Buzzi & Buzzi power supply accessories are designed for right hand polarity.
L40
LIGHT MODULES
matt black RAL 9005 painted
174
168
158
142
150
162
146
172
166
154
140
GL 220V
INCISO Q4 220V
Q2 220V
Y1 220V
M1 220V
Q3 220V
Z1 220V
ML 220V
Q4 220V
Q1 220V
X1 220V
matt white RAL 9010 painted
www.buzzi-buzzi.it | 181
Indoor 220V Tracks
