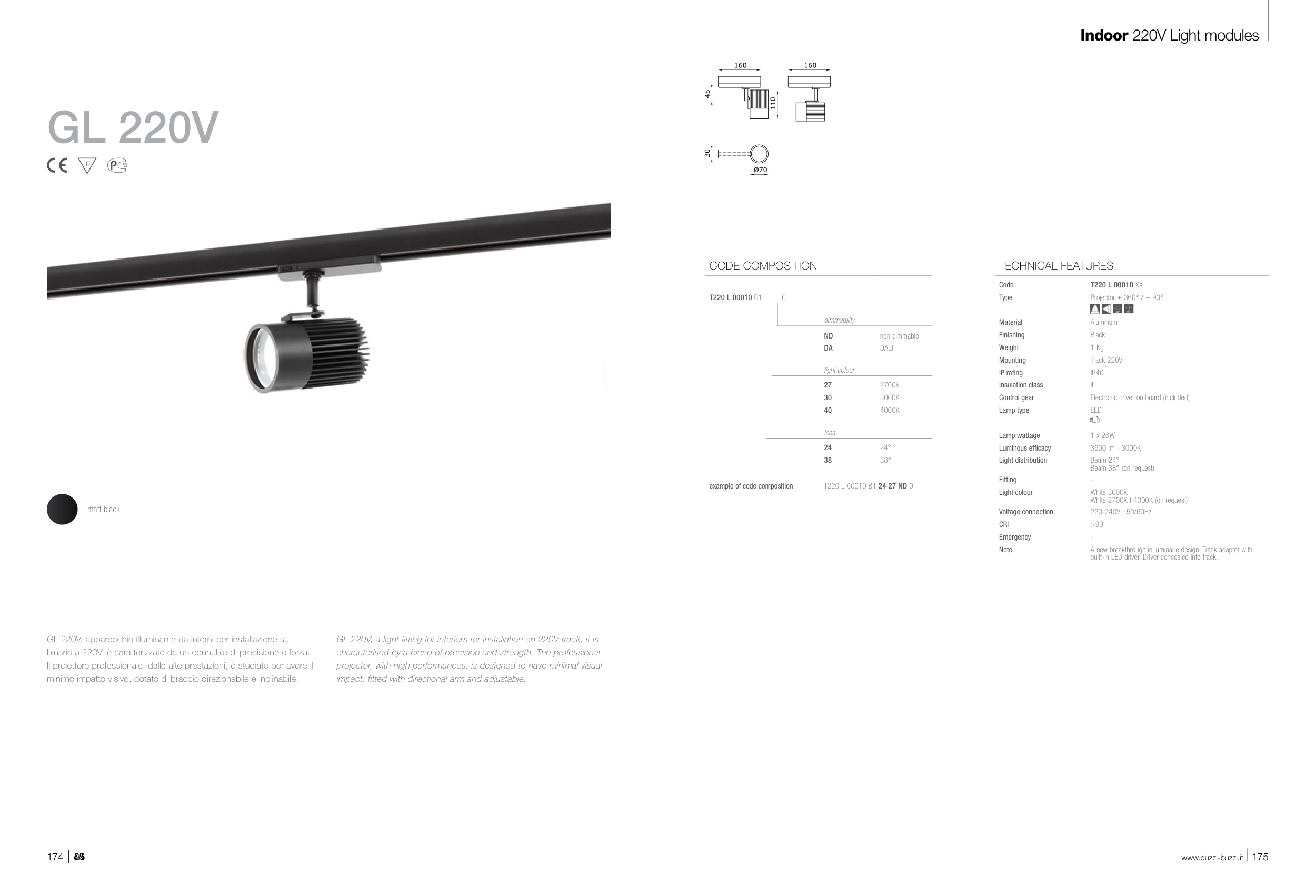

GL 220V
GL 220V, apparecchio illuminante da interni per installazione su
binario a 220V, è caratterizzato da un connubio di precisione e forza.
Il proiettore professionale, dalle alte prestazioni, è studiato per avere il
minimo impatto visivo, dotato di braccio direzionabile e inclinabile.
GL 220V, a light fitting for interiors for installation on 220V track, it is
characterised by a blend of precision and strength. The professional
projector, with high performances, is designed to have minimal visual
impact, fitted with directional arm and adjustable.
TECHNICAL FEATURES
Code
T220 L 00010 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
Black
Weight
1 Kg
Mounting
Track 220V
IP rating
IP40
Insulation class
III
Control gear
Electronic driver on board (included)
Lamp type
LED
Lamp wattage
1 x 26W
Luminous efficacy
3600 lm - 3000K
Light distribution
Beam 24°
Beam 38° (on request)
Fitting
-
Light colour
White 3000K
White 2700K | 4000K (on request)
Voltage connection
220-240V · 50/60Hz
CRI
>90
Emergency
-
Note
A new breakthrough in luminaire design. Track adapter with
built-in LED driver. Driver concealed into track.
CODE COMPOSITION
T220 L 00010 B1 _ _ _ 0
dimmability
ND
non dimmable
DA
DALI
light colour
27
2700K
30
3000K
40
4000K
lens
24
24°
38
38°
example of code composition
T220 L 00010 B1 24 27 ND 0
matt black
www.buzzi-buzzi.it | 175
Indoor 220V Light modules
