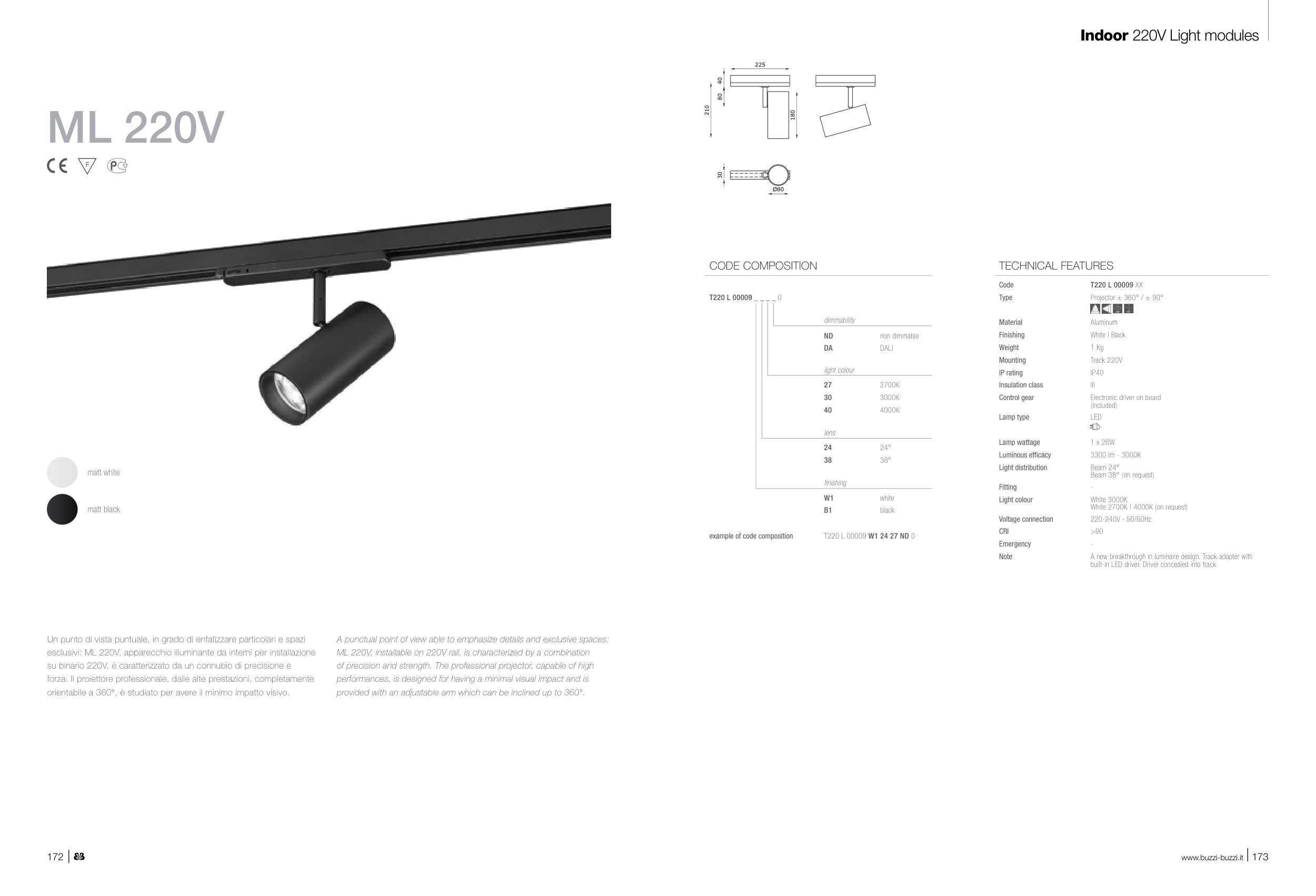

ML 220V
Un punto di vista puntuale, in grado di enfatizzare particolari e spazi
esclusivi: ML 220V, apparecchio illuminante da interni per installazione
su binario 220V, è caratterizzato da un connubio di precisione e
forza. Il proiettore professionale, dalle alte prestazioni, completamente
orientabile a 360°, è studiato per avere il minimo impatto visivo.
A punctual point of view able to emphasize details and exclusive spaces:
ML 220V, installable on 220V rail, is characterized by a combination
of precision and strength. The professional projector, capable of high
performances, is designed for having a minimal visual impact and is
provided with an adjustable arm which can be inclined up to 360°.
TECHNICAL FEATURES
Code
T220 L 00009 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black
Weight
1 Kg
Mounting
Track 220V
IP rating
IP40
Insulation class
III
Control gear
Electronic driver on board
(included)
Lamp type
LED
Lamp wattage
1 x 26W
Luminous efficacy
3300 lm - 3000K
Light distribution
Beam 24°
Beam 38° (on request)
Fitting
-
Light colour
White 3000K
White 2700K | 4000K (on request)
Voltage connection
220-240V · 50/60Hz
CRI
>90
Emergency
-
Note
A new breakthrough in luminaire design. Track adapter with
built-in LED driver. Driver concealed into track.
CODE COMPOSITION
T220 L 00009 _ _ _ _ 0
dimmability
ND
non dimmable
DA
DALI
light colour
27
2700K
30
3000K
40
4000K
lens
24
24°
38
38°
finishing
W1
white
B1
black
example of code composition
T220 L 00009 W1 24 27 ND 0
matt white
matt black
www.buzzi-buzzi.it | 173
Indoor 220V Light modules
172 |
