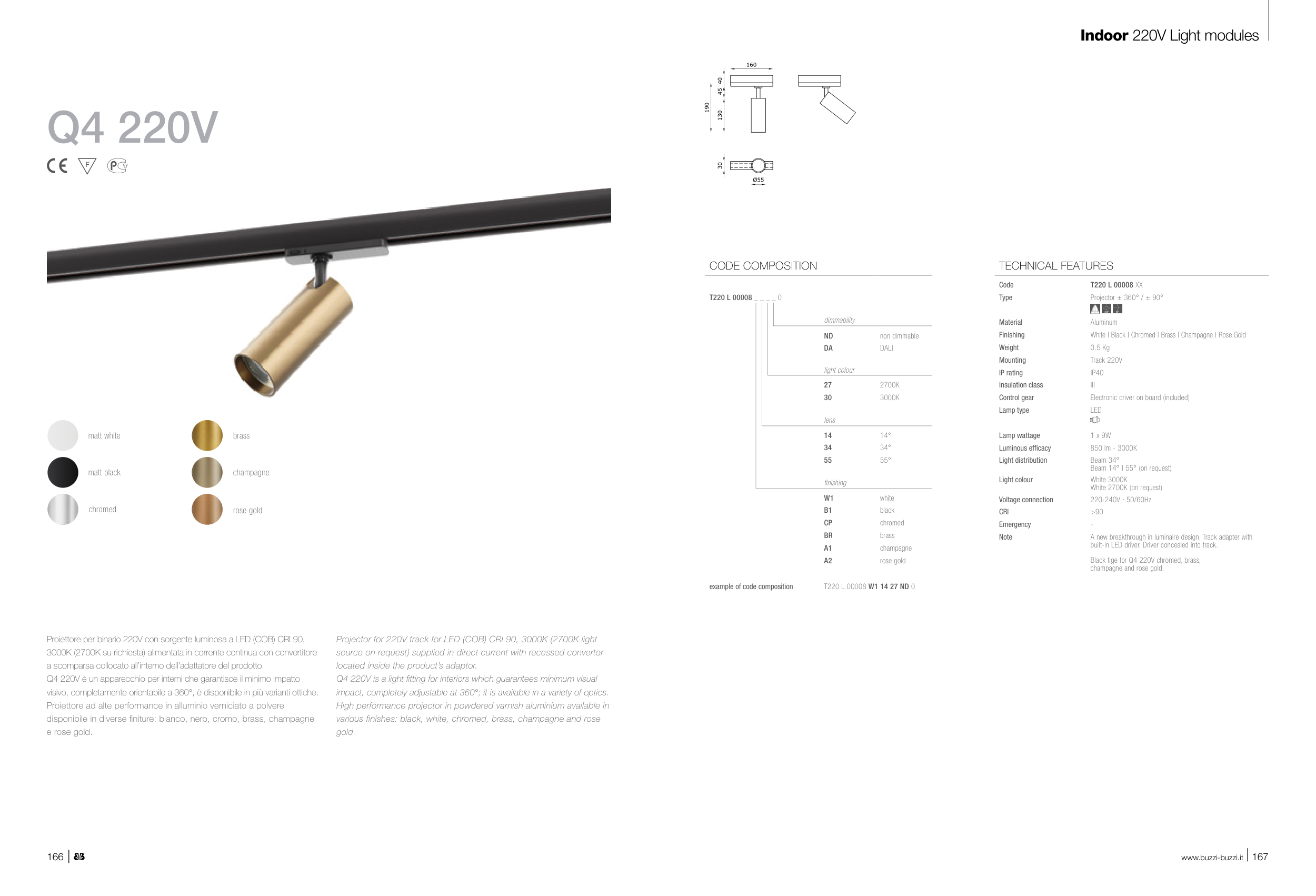

Q4 220V
Proiettore per binario 220V con sorgente luminosa a LED (COB) CRI 90,
3000K (2700K su richiesta) alimentata in corrente continua con convertitore
a scomparsa collocato all’interno dell’adattatore del prodotto.
Q4 220V è un apparecchio per interni che garantisce il minimo impatto
visivo, completamente orientabile a 360°, è disponibile in più varianti ottiche.
Proiettore ad alte performance in alluminio verniciato a polvere
disponibile in diverse finiture: bianco, nero, cromo, brass, champagne
e rose gold.
Projector for 220V track for LED (COB) CRI 90, 3000K (2700K light
source on request) supplied in direct current with recessed convertor
located inside the product’s adaptor.
Q4 220V is a light fitting for interiors which guarantees minimum visual
impact, completely adjustable at 360°; it is available in a variety of optics.
High performance projector in powdered varnish aluminium available in
various finishes: black, white, chromed, brass, champagne and rose
gold.
TECHNICAL FEATURES
Code
T220 L 00008 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black | Chromed | Brass | Champagne | Rose Gold
Weight
0.5 Kg
Mounting
Track 220V
IP rating
IP40
Insulation class
III
Control gear
Electronic driver on board (included)
Lamp type
LED
Lamp wattage
1 x 9W
Luminous efficacy
850 lm - 3000K
Light distribution
Beam 34°
Beam 14° | 55° (on request)
Light colour
White 3000K
White 2700K (on request)
Voltage connection
220-240V · 50/60Hz
CRI
>90
Emergency
-
Note
A new breakthrough in luminaire design. Track adapter with
built-in LED driver. Driver concealed into track.
Black tige for Q4 220V chromed, brass,
champagne and rose gold.
CODE COMPOSITION
T220 L 00008 _ _ _ _ 0
dimmability
ND
non dimmable
DA
DALI
light colour
27
2700K
30
3000K
lens
14
14°
34
34°
55
55°
finishing
W1
white
B1
black
CP
chromed
BR
brass
A1
champagne
A2
rose gold
example of code composition
T220 L 00008 W1 14 27 ND 0
matt white
matt black
chromed
brass
rose gold
champagne
