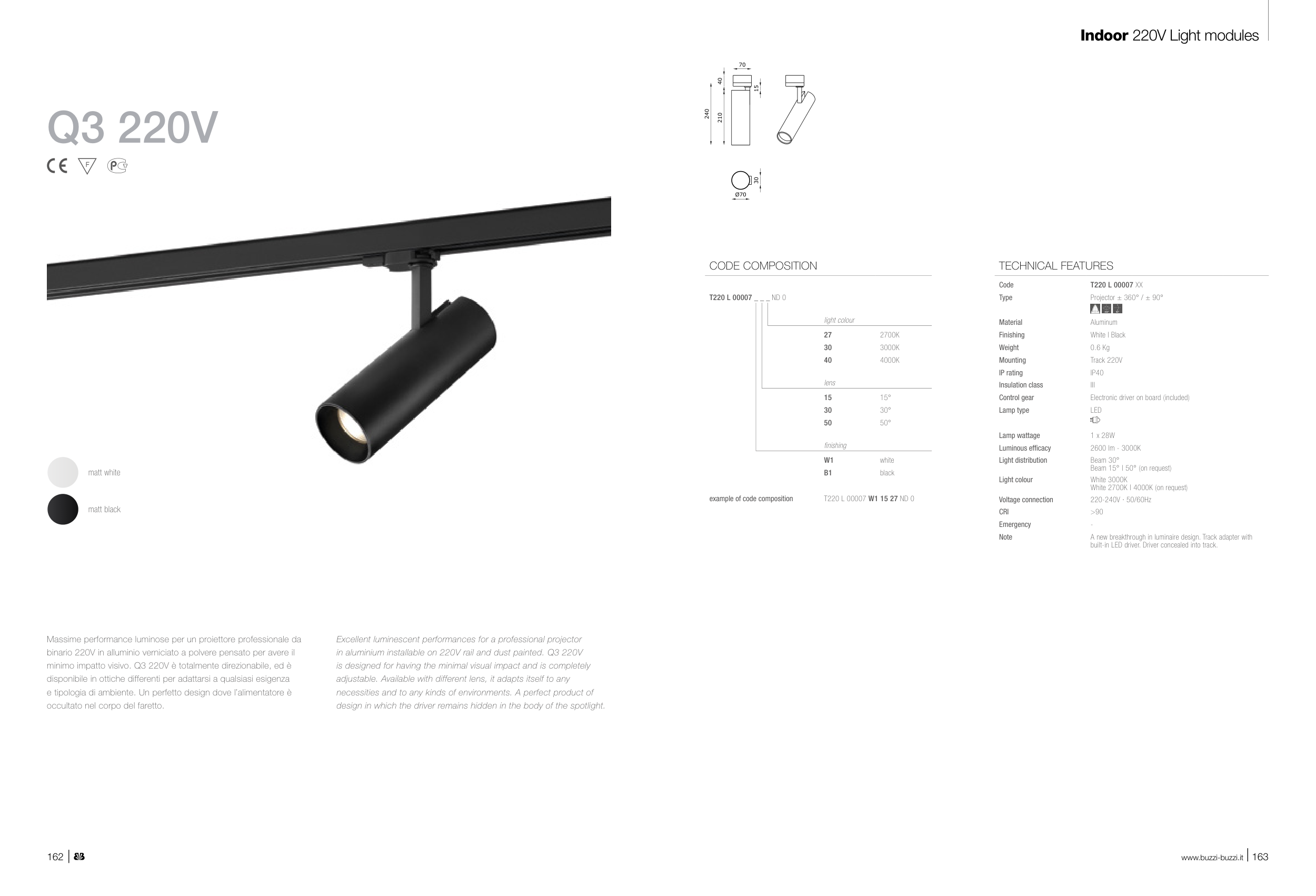

Q3 220V
Massime performance luminose per un proiettore professionale da
binario 220V in alluminio verniciato a polvere pensato per avere il
minimo impatto visivo. Q3 220V è totalmente direzionabile, ed è
disponibile in ottiche differenti per adattarsi a qualsiasi esigenza
e tipologia di ambiente. Un perfetto design dove l’alimentatore è
occultato nel corpo del faretto.
Excellent luminescent performances for a professional projector
in aluminium installable on 220V rail and dust painted. Q3 220V
is designed for having the minimal visual impact and is completely
adjustable. Available with different lens, it adapts itself to any
necessities and to any kinds of environments. A perfect product of
design in which the driver remains hidden in the body of the spotlight.
TECHNICAL FEATURES
Code
T220 L 00007 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black
Weight
0.6 Kg
Mounting
Track 220V
IP rating
IP40
Insulation class
III
Control gear
Electronic driver on board (included)
Lamp type
LED
Lamp wattage
1 x 28W
Luminous efficacy
2600 lm - 3000K
Light distribution
Beam 30°
Beam 15° | 50° (on request)
Light colour
White 3000K
White 2700K | 4000K (on request)
Voltage connection
220-240V · 50/60Hz
CRI
>90
Emergency
-
Note
A new breakthrough in luminaire design. Track adapter with
built-in LED driver. Driver concealed into track.
CODE COMPOSITION
T220 L 00007 _ _ _ ND 0
light colour
27
2700K
30
3000K
40
4000K
lens
15
15°
30
30°
50
50°
finishing
W1
white
B1
black
example of code composition
T220 L 00007 W1 15 27 ND 0
matt white
matt black
162 |
www.buzzi-buzzi.it | 163
Indoor 220V Light modules
