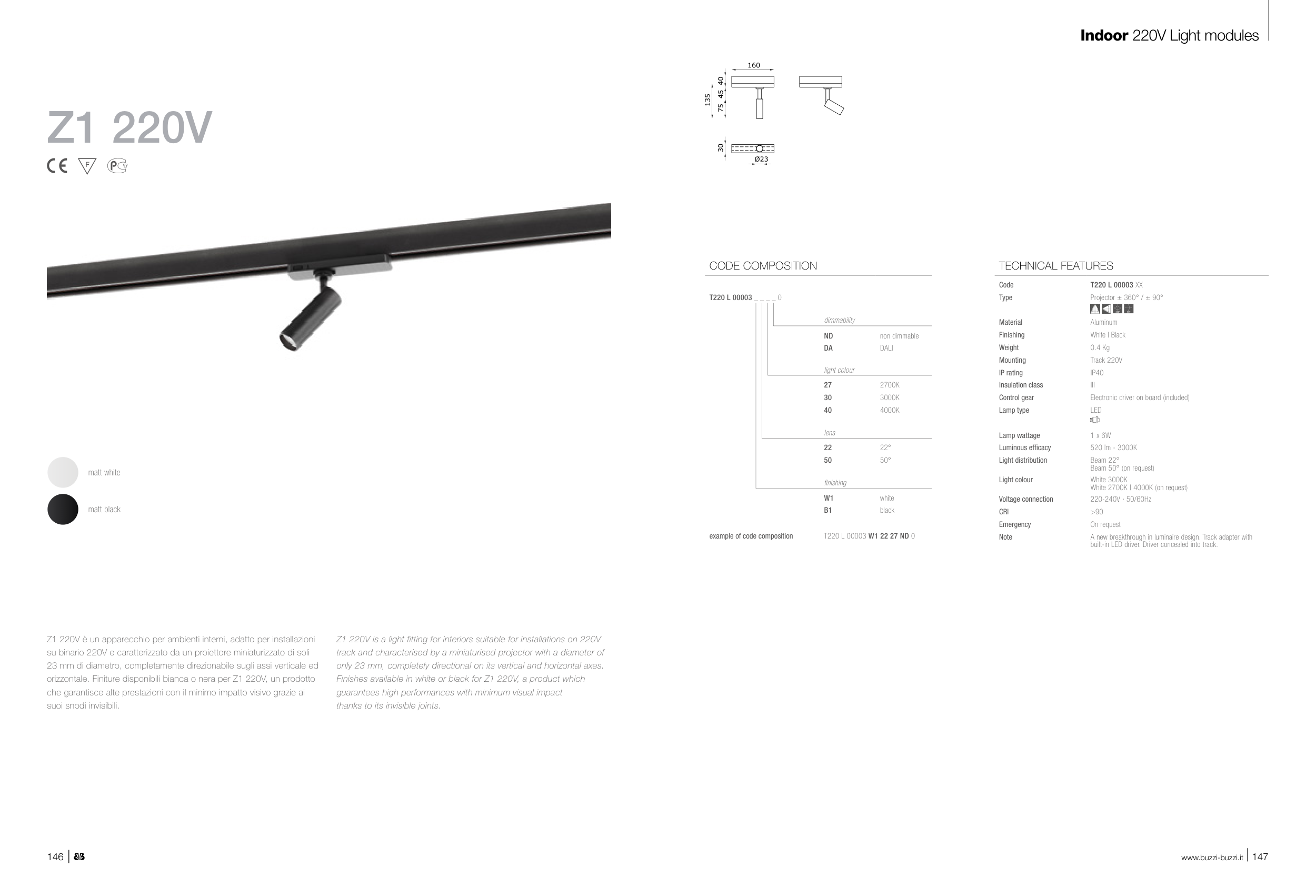

Z1 220V
Z1 220V è un apparecchio per ambienti interni, adatto per installazioni
su binario 220V e caratterizzato da un proiettore miniaturizzato di soli
23 mm di diametro, completamente direzionabile sugli assi verticale ed
orizzontale. Finiture disponibili bianca o nera per Z1 220V, un prodotto
che garantisce alte prestazioni con il minimo impatto visivo grazie ai
suoi snodi invisibili.
Z1 220V is a light fitting for interiors suitable for installations on 220V
track and characterised by a miniaturised projector with a diameter of
only 23 mm, completely directional on its vertical and horizontal axes.
Finishes available in white or black for Z1 220V, a product which
guarantees high performances with minimum visual impact
thanks to its invisible joints.
TECHNICAL FEATURES
Code
T220 L 00003 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black
Weight
0.4 Kg
Mounting
Track 220V
IP rating
IP40
Insulation class
III
Control gear
Electronic driver on board (included)
Lamp type
LED
Lamp wattage
1 x 6W
Luminous efficacy
520 lm - 3000K
Light distribution
Beam 22°
Beam 50° (on request)
Light colour
White 3000K
White 2700K | 4000K (on request)
Voltage connection
220-240V · 50/60Hz
CRI
>90
Emergency
On request
Note
A new breakthrough in luminaire design. Track adapter with
built-in LED driver. Driver concealed into track.
CODE COMPOSITION
T220 L 00003 _ _ _ _ 0
dimmability
ND
non dimmable
DA
DALI
light colour
27
2700K
30
3000K
40
4000K
lens
22
22°
50
50°
finishing
W1
white
B1
black
example of code composition
T220 L 00003 W1 22 27 ND 0
matt white
matt black
146 |
www.buzzi-buzzi.it | 147
Indoor 220V Light modules
