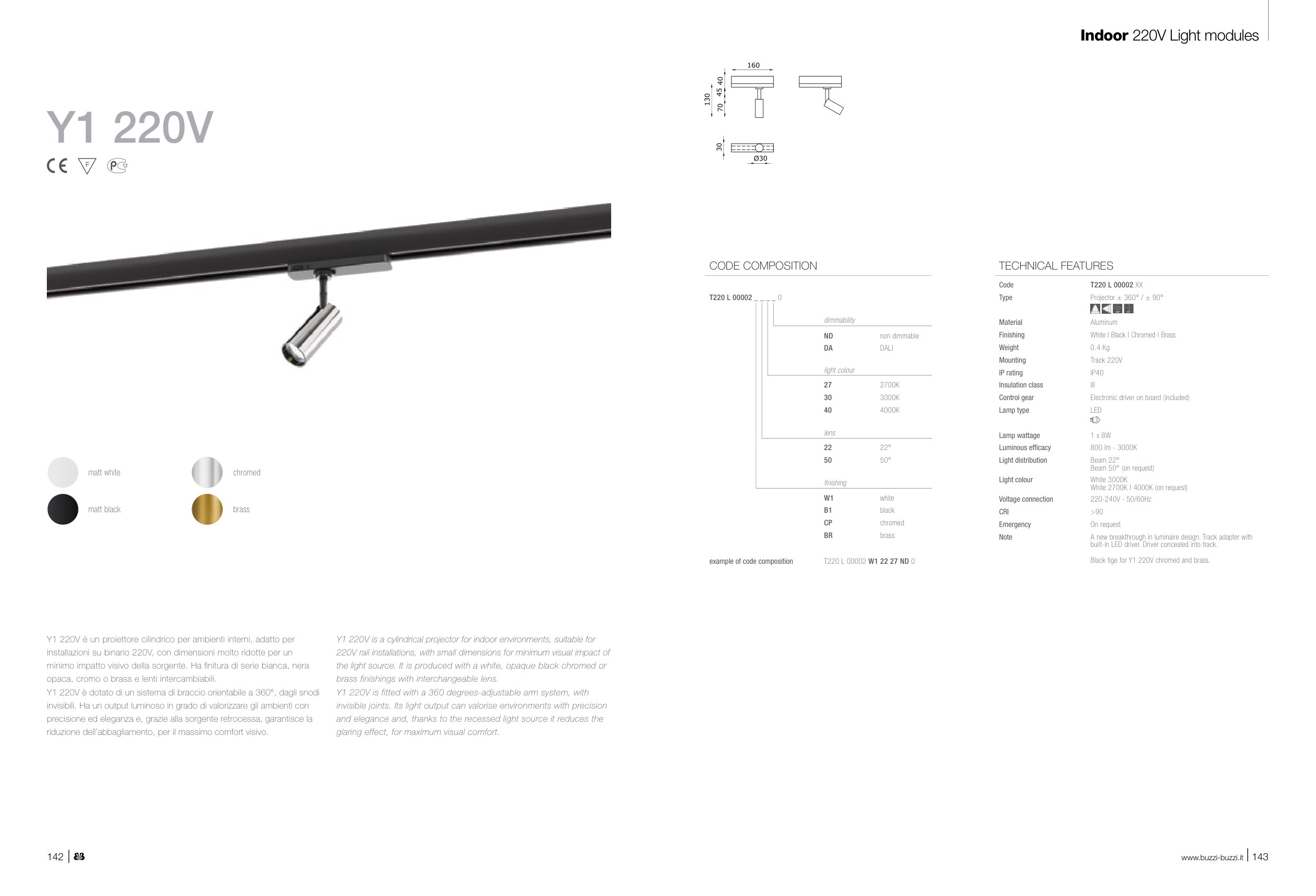

Y1 220V
Y1 220V è un proiettore cilindrico per ambienti interni, adatto per
installazioni su binario 220V, con dimensioni molto ridotte per un
minimo impatto visivo della sorgente. Ha finitura di serie bianca, nera
opaca, cromo o brass e lenti intercambiabili.
Y1 220V è dotato di un sistema di braccio orientabile a 360°, dagli snodi
invisibili. Ha un output luminoso in grado di valorizzare gli ambienti con
precisione ed eleganza e, grazie alla sorgente retrocessa, garantisce la
riduzione dell’abbagliamento, per il massimo comfort visivo.
Y1 220V is a cylindrical projector for indoor environments, suitable for
220V rail installations, with small dimensions for minimum visual impact of
the light source. It is produced with a white, opaque black chromed or
brass finishings with interchangeable lens.
Y1 220V is fitted with a 360 degrees-adjustable arm system, with
invisible joints. Its light output can valorise environments with precision
and elegance and, thanks to the recessed light source it reduces the
glaring effect, for maximum visual comfort.
TECHNICAL FEATURES
Code
T220 L 00002 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black | Chromed | Brass
Weight
0.4 Kg
Mounting
Track 220V
IP rating
IP40
Insulation class
III
Control gear
Electronic driver on board (included)
Lamp type
LED
Lamp wattage
1 x 8W
Luminous efficacy
800 lm - 3000K
Light distribution
Beam 22°
Beam 50° (on request)
Light colour
White 3000K
White 2700K | 4000K (on request)
Voltage connection
220-240V · 50/60Hz
CRI
>90
Emergency
On request
Note
A new breakthrough in luminaire design. Track adapter with
built-in LED driver. Driver concealed into track.
Black tige for Y1 220V chromed and brass.
CODE COMPOSITION
T220 L 00002 _ _ _ _ 0
dimmability
ND
non dimmable
DA
DALI
light colour
27
2700K
30
3000K
40
4000K
lens
22
22°
50
50°
finishing
W1
white
B1
black
CP
chromed
BR
brass
example of code composition
T220 L 00002 W1 22 27 ND 0
matt white
matt black
chromed
brass
142 |
www.buzzi-buzzi.it | 143
Indoor 220V Light modules
