TECHNICAL FEATURES
Code
T048 A 00058 B1
Type
48V supply box
Material
Steel
Finishing
Black
RAL 9005
Fixing
By screws
Insulation class
-
Voltage
connection
-
Note
The purpose of the
supply box attached to
the surface is to house
the driver in all those
situations in which a
remote driver cannot
be used.
CASSETTA
PER ALIMENTATORE
SUPPLY BOX
CODE COMPOSITION
T048 A 00058 B1
CODE COMPOSITION
T048 A 00069 B1
TECHNICAL FEATURES
Code
T048 A 00069 B1
Type
90° vertical corner joint
cover
Material
Aluminum body,
steel bracket
Finishing
Black RAL
9005
Fixing
By screws
Note
The 90° vertical
corner joint allows the
mechanical connection
of the tracks, forming
a 90° angle, without
cutting them at 45°.
GIUNTO ANGOLARE
VERTICALE
VERTICAL CORNER JOINT
CURVA RAGGIO 300 MM
CURVE RADIUS 300 MM
CURVA SOFFITTO-PARETE
RAGGIO 300 MM
CEILING-WALL CURVE
RADIUS 300 MM
CURVA RAGGIO 500 MM
CURVE RADIUS 500 MM
TECHNICAL FEATURES
Code
T048 T 04B1 1041
Type
Low voltage curved track
Material
Aluminum
Finishing
Black
RAL 9005
Fixing
Surface
Insulation class
III
Voltage
connection
10 A max · 48 VDC
Circuits
2 x ±10 A · 48 VDC
1 x ±10 A · 48 VDC
+ D+/D
Note
The curve has to
garantee the electrical
connection of 48V
system.
Is necessary to be
associated to
T048 A 00064 B1 code
to allow electrical
and signal continuity.
Light points cannot be
installed in the curve.
TECHNICAL FEATURES
Code
T048 T 04B1 1061
Type
Low voltage curved track
Material
Aluminum
Finishing
Black
RAL 9005
Fixing
Surface
Insulation class
III
Voltage
connection
10 A max · 48 VDC
Circuits
1 x ±10 A · 0-60 VDC
+ D+/D
Note
The curve has to
garantee the electrical
connection of 48V
system.
Is necessary to be
associated to
T048 A 00064 B1 code
to allow electrical
and signal continuity.
Light points cannot be
installed in the curve.
TECHNICAL FEATURES
Code
T048 T 04B1 1051
Type
Low voltage curved track
Material
Aluminum
Finishing
Black
RAL 9005
Fixing
Surface
Insulation class
III
Voltage
connection
10 A max · 48 VDC
Circuits
2 x ±10 A · 48 VDC
1 x ±10 A · 48 VDC
+ D+/D
Note
The curve has to
garantee the electrical
connection of 48V
system.
Is necessary to be
associated to
T048 A 00064 B1 code
to allow electrical
and signal continuity.
Light points cannot be
installed in the curve.
CODE COMPOSITION
T048 T 04B1 1041
CODE COMPOSITION
T048 T 04B1 1061
CODE COMPOSITION
T048 T 04B1 1051
CODE COMPOSITION
T048 A 00089 B1
TECHNICAL FEATURES
Code
T048 A 00089 B1
Type
Aesthetic closing cover
Material
PMMA
Finishing
Black
RAL 9005
Fixing
-
Note
Cover installable at
the bottom between
the various spotlights,
to hide the inside of
the track and to allow
aesthetic continuity.
Cover length: 3000 mm
COVER DI CHIUSURA
CLOSING COVER
TECHNICAL FEATURES
Code
T048 A XX
Type
Constant voltage driver
Material
-
Finishing
-
Fixing
-
Insulation class
-
Voltage
connection
220-240V
50/60Hz · 48 VDC
Max wattage
75W | 150W | 240W
Note
-
ALIMENTATORE
POWER SUPPLY
CODE COMPOSITION
T048 A 000_00
max wattage
96
75W
97
150W
60
240W
example of code
composition
T048 A 00096 00
CODE COMPOSITION
T048 A 00090 B1
KIT DRIVER + CASSETTA
PER ALIMENTATORE
KIT DRIVER + SUPPLY BOX
TECHNICAL FEATURES
Code
T048 A 00090 B1
Type
Power supply
for ceiling tracks
Material
-
Finishing
Black
RAL 9005
Fixing
By screws
Insulation class
-
Voltage
connection
230V · 48 VDC
Max wattage
100W
Note
End-feed power wire
(20 mm)
130 |
www.buzzi-buzzi.it | 131
48V Nano tracks
N10
130 |
www.buzzi-buzzi.it | 131
48V Nano tracks
N10

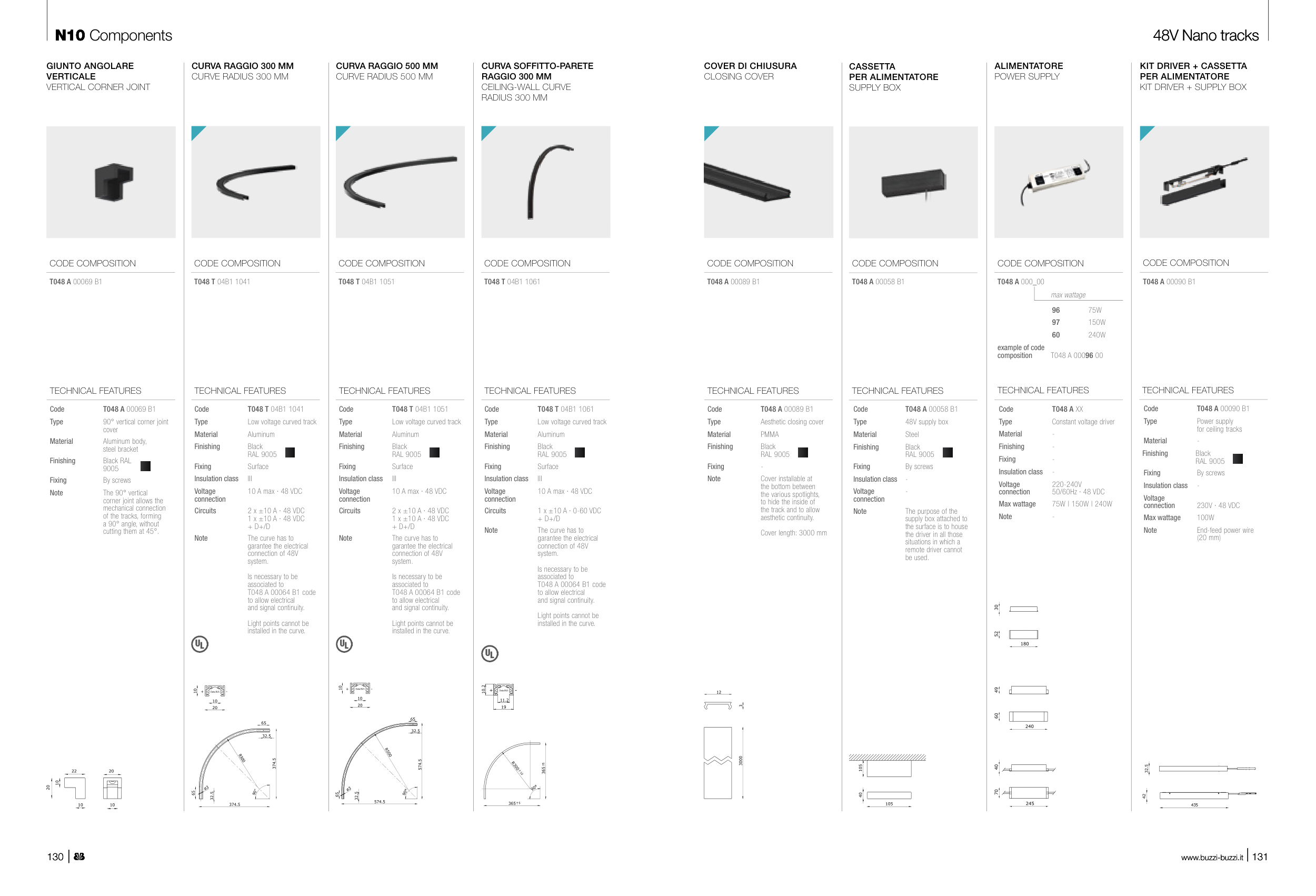

N10 Components
