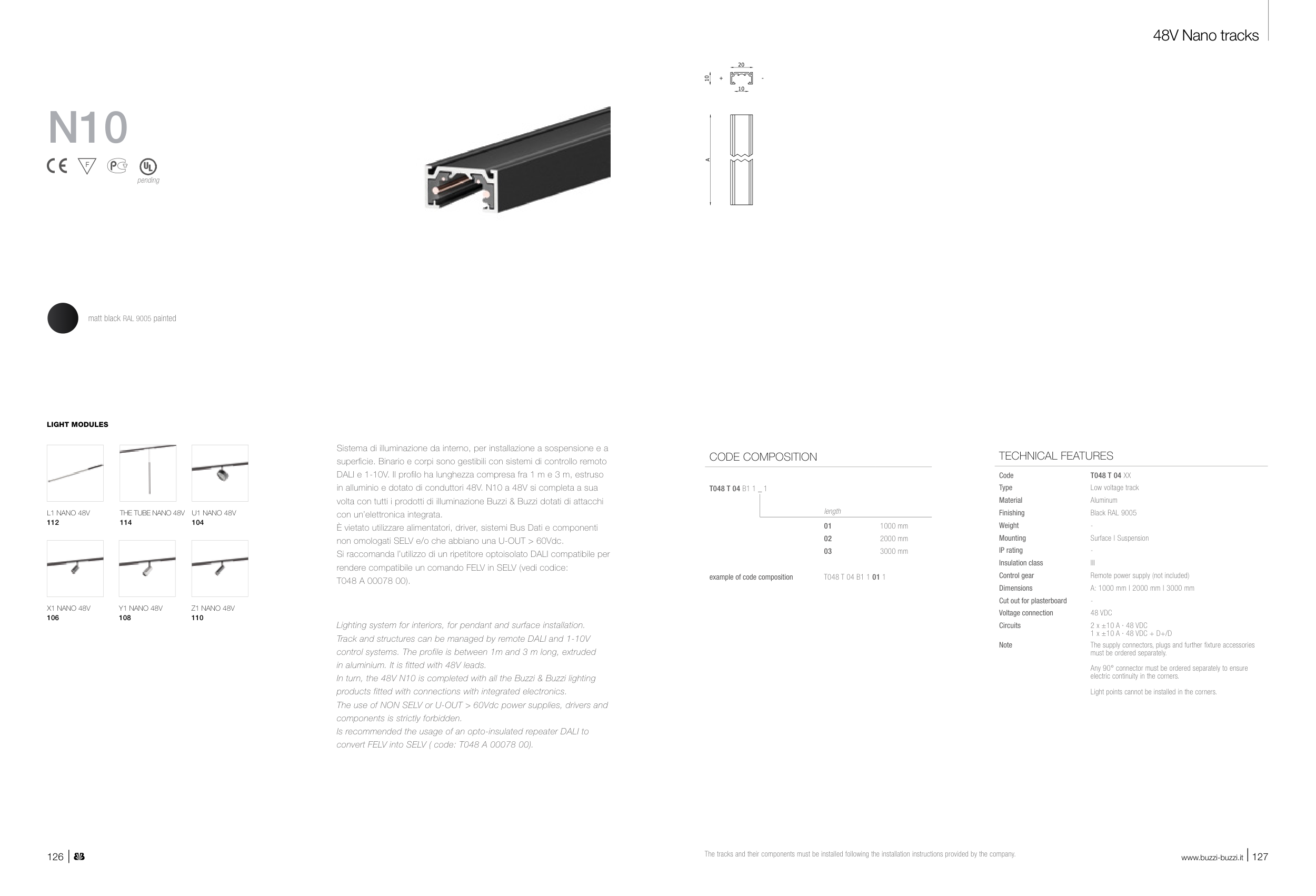

N10
Sistema di illuminazione da interno, per installazione a sospensione e a
superficie. Binario e corpi sono gestibili con sistemi di controllo remoto
DALI e 1-10V. Il profilo ha lunghezza compresa fra 1 m e 3 m, estruso
in alluminio e dotato di conduttori 48V. N10 a 48V si completa a sua
volta con tutti i prodotti di illuminazione Buzzi & Buzzi dotati di attacchi
con un’elettronica integrata.
È vietato utilizzare alimentatori, driver, sistemi Bus Dati e componenti
non omologati SELV e/o che abbiano una U-OUT > 60Vdc.
Si raccomanda l’utilizzo di un ripetitore optoisolato DALI compatibile per
rendere compatibile un comando FELV in SELV (vedi codice:
T048 A 00078 00).
Lighting system for interiors, for pendant and surface installation.
Track and structures can be managed by remote DALI and 1-10V
control systems. The profile is between 1m and 3 m long, extruded
in aluminium. It is fitted with 48V leads.
In turn, the 48V N10 is completed with all the Buzzi & Buzzi lighting
products fitted with connections with integrated electronics.
The use of NON SELV or U-OUT > 60Vdc power supplies, drivers and
components is strictly forbidden.
Is recommended the usage of an opto-insulated repeater DALI to
convert FELV into SELV ( code: T048 A 00078 00).
TECHNICAL FEATURES
Code
T048 T 04 XX
Type
Low voltage track
Material
Aluminum
Finishing
Black RAL 9005
Weight
-
Mounting
Surface | Suspension
IP rating
-
Insulation class
III
Control gear
Remote power supply (not included)
Dimensions
A: 1000 mm | 2000 mm | 3000 mm
Cut out for plasterboard
-
Voltage connection
48 VDC
Circuits
2 x ±10 A · 48 VDC
1 x ±10 A · 48 VDC + D+/D
Note
The supply connectors, plugs and further fixture accessories
must be ordered separately.
Any 90° connector must be ordered separately to ensure
electric continuity in the corners.
Light points cannot be installed in the corners.
The tracks and their components must be installed following the installation instructions provided by the company.
matt black RAL 9005 painted
CODE COMPOSITION
T048 T 04 B1 1 _ 1
length
01
1000 mm
02
2000 mm
03
3000 mm
example of code composition
T048 T 04 B1 1 01 1
LIGHT MODULES
pending
108
104
106
112
114
110
Y1 NANO 48V
U1 NANO 48V
X1 NANO 48V
L1 NANO 48V
THE TUBE NANO 48V
Z1 NANO 48V
