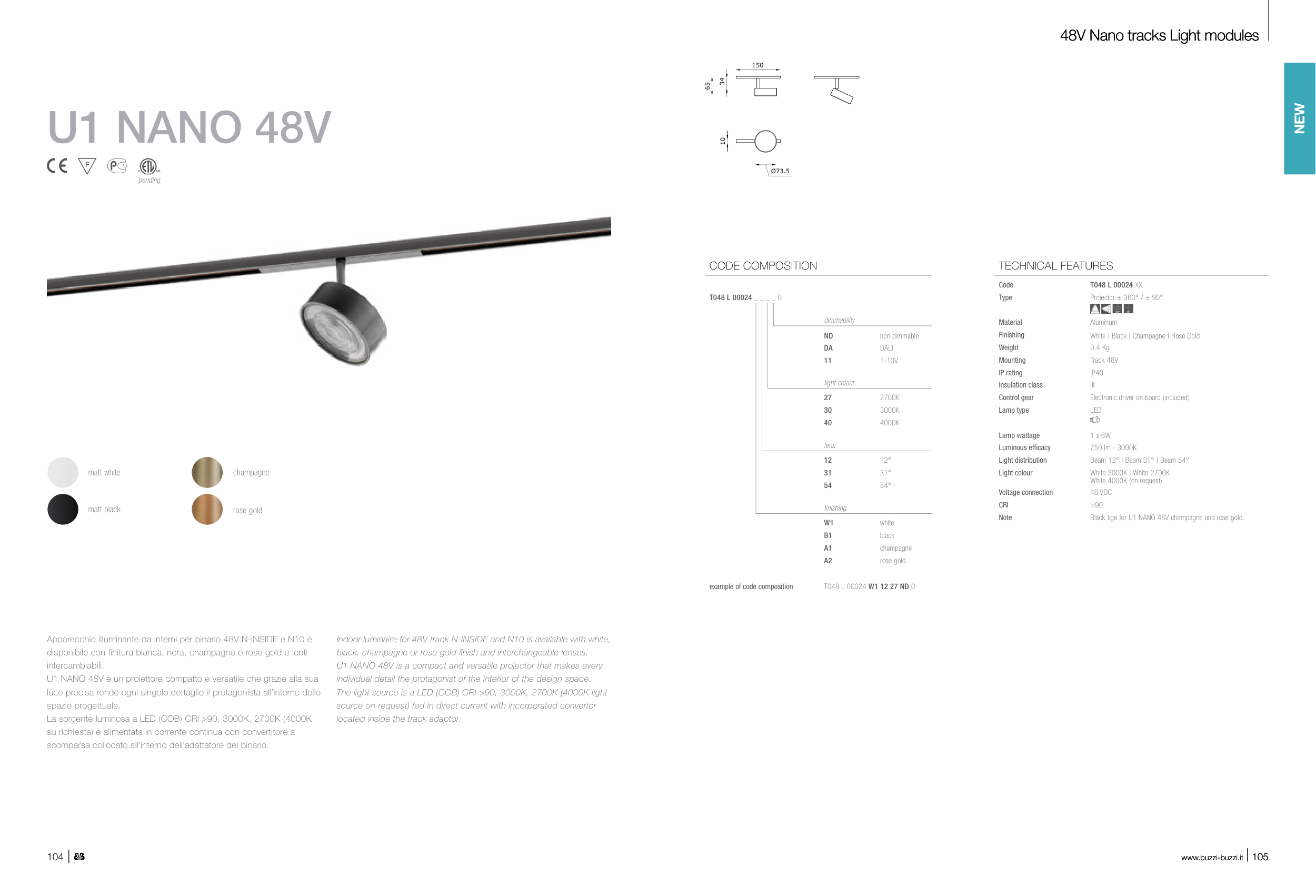

U1 NANO 48V
NEW
Apparecchio illuminante da interni per binario 48V N-INSIDE e N10 è
disponibile con finitura bianca, nera, champagne o rose gold e lenti
intercambiabili.
U1 NANO 48V è un proiettore compatto e versatile che grazie alla sua
luce precisa rende ogni singolo dettaglio il protagonista all’interno dello
spazio progettuale.
La sorgente luminosa a LED (COB) CRI >90, 3000K, 2700K (4000K
su richiesta) è alimentata in corrente continua con convertitore a
scomparsa collocato all’interno dell’adattatore del binario.
Indoor luminaire for 48V track N-INSIDE and N10 is available with white,
black, champagne or rose gold finish and interchangeable lenses.
U1 NANO 48V is a compact and versatile projector that makes every
individual detail the protagonist of the interior of the design space.
The light source is a LED (COB) CRI >90, 3000K, 2700K (4000K light
source on request) fed in direct current with incorporated convertor
located inside the track adaptor.
matt white
matt black
champagne
rose gold
pending
CODE COMPOSITION
T048 L 00024 _ _ _ _ 0
dimmability
ND
non dimmable
DA
DALI
11
1-10V
light colour
27
2700K
30
3000K
40
4000K
lens
12
12°
31
31°
54
54°
finishing
W1
white
B1
black
A1
champagne
A2
rose gold
example of code composition
T048 L 00024 W1 12 27 ND 0
TECHNICAL FEATURES
Code
T048 L 00024 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black | Champagne | Rose Gold
Weight
0.4 Kg
Mounting
Track 48V
IP rating
IP40
Insulation class
III
Control gear
Electronic driver on board (included)
Lamp type
LED
Lamp wattage
1 x 6W
Luminous efficacy
750 lm - 3000K
Light distribution
Beam 12° | Beam 31° | Beam 54°
Light colour
White 3000K | White 2700K
White 4000K (on request)
Voltage connection
48 VDC
CRI
>90
Note
Black tige for U1 NANO 48V champagne and rose gold.
10
65
150
34
Ø73.5
