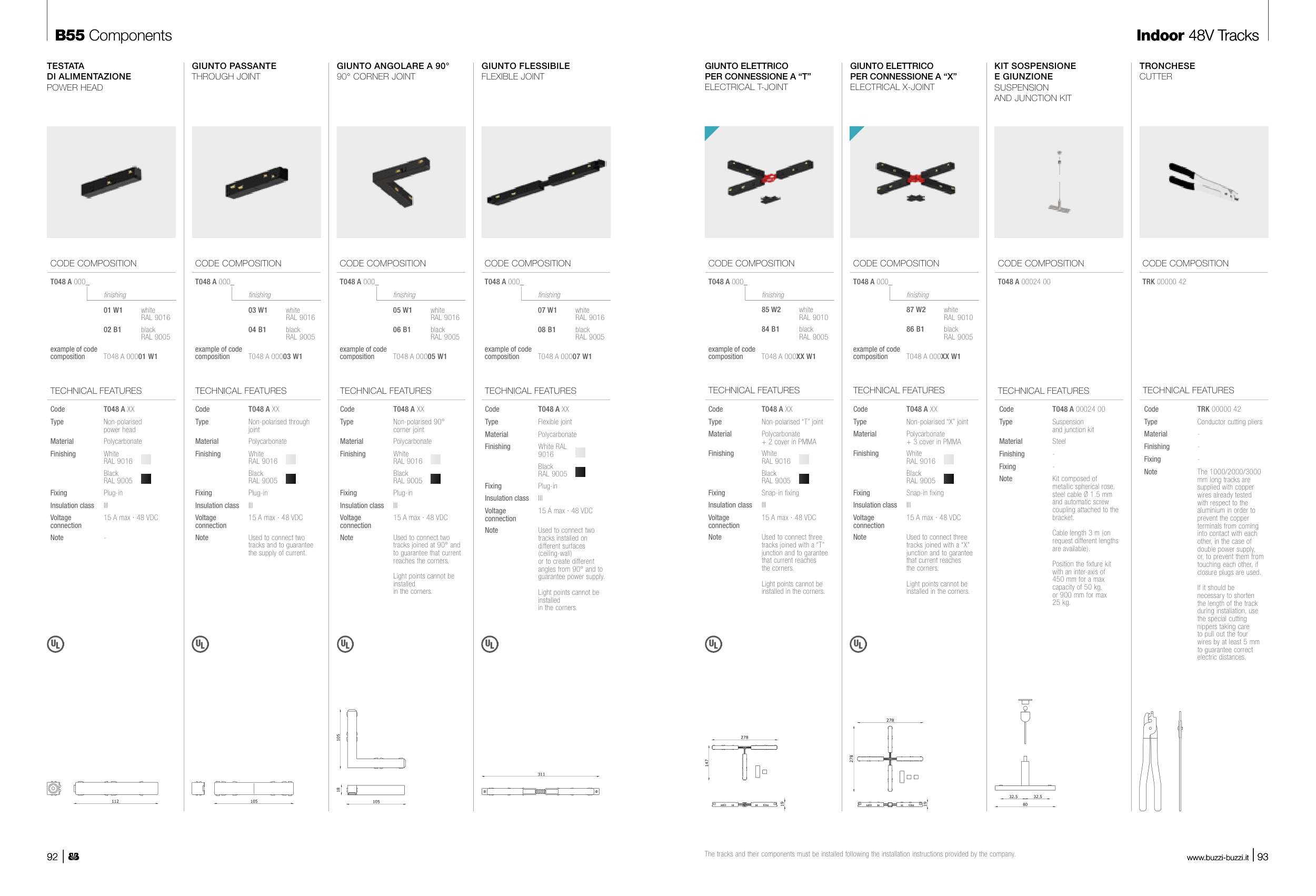

CODE COMPOSITION
T048 A 000_
finishing
01 W1
white
RAL 9016
02 B1
black
RAL 9005
example of code
composition
T048 A 00001 W1
CODE COMPOSITION
T048 A 000_
finishing
03 W1
white
RAL 9016
04 B1
black
RAL 9005
example of code
composition
T048 A 00003 W1
CODE COMPOSITION
T048 A 000_
finishing
05 W1
white
RAL 9016
06 B1
black
RAL 9005
example of code
composition
T048 A 00005 W1
CODE COMPOSITION
T048 A 000_
finishing
07 W1
white
RAL 9016
08 B1
black
RAL 9005
example of code
composition
T048 A 00007 W1
TESTATA
DI ALIMENTAZIONE
POWER HEAD
GIUNTO FLESSIBILE
FLEXIBLE JOINT
GIUNTO PASSANTE
THROUGH JOINT
GIUNTO ANGOLARE A 90°
90° CORNER JOINT
TECHNICAL FEATURES
Code
T048 A XX
Type
Non-polarised
power head
Material
Polycarbonate
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
Plug-in
Insulation class
III
Voltage
connection
15 A max · 48 VDC
Note
-
TECHNICAL FEATURES
Code
T048 A XX
Type
Non-polarised through
joint
Material
Polycarbonate
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
Plug-in
Insulation class
III
Voltage
connection
15 A max · 48 VDC
Note
Used to connect two
tracks and to guarantee
the supply of current.
TECHNICAL FEATURES
Code
T048 A XX
Type
Non-polarised 90°
corner joint
Material
Polycarbonate
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
Plug-in
Insulation class
III
Voltage
connection
15 A max · 48 VDC
Note
Used to connect two
tracks joined at 90° and
to guarantee that current
reaches the corners.
Light points cannot be
installed
in the corners.
TECHNICAL FEATURES
Code
T048 A XX
Type
Flexible joint
Material
Polycarbonate
Finishing
White RAL
9016
Black
RAL 9005
Fixing
Plug-in
Insulation class
III
Voltage
connection
15 A max · 48 VDC
Note
Used to connect two
tracks installed on
different surfaces
(ceiling-wall)
or to create different
angles from 90° and to
guarantee power supply.
Light points cannot be
installed
in the corners.
The tracks and their components must be installed following the installation instructions provided by the company.
CODE COMPOSITION
TRK 00000 42
TECHNICAL FEATURES
Code
TRK 00000 42
Type
Conductor cutting pliers
Material
-
Finishing
-
Fixing
-
Note
The 1000/2000/3000
mm long tracks are
supplied with copper
wires already tested
with respect to the
aluminium in order to
prevent the copper
terminals from coming
into contact with each
other, in the case of
double power supply,
or, to prevent them from
touching each other, if
closure plugs are used.
If it should be
necessary to shorten
the length of the track
during installation, use
the special cutting
nippers taking care
to pull out the four
wires by at least 5 mm
to guarantee correct
electric distances.
TRONCHESE
CUTTER
CODE COMPOSITION
T048 A 000_
finishing
85 W2
white
RAL 9010
84 B1
black
RAL 9005
example of code
composition
T048 A 000XX W1
CODE COMPOSITION
T048 A 000_
finishing
87 W2
white
RAL 9010
86 B1
black
RAL 9005
example of code
composition
T048 A 000XX W1
GIUNTO ELETTRICO
PER CONNESSIONE A “T”
ELECTRICAL T-JOINT
GIUNTO ELETTRICO
PER CONNESSIONE A “X”
ELECTRICAL X-JOINT
TECHNICAL FEATURES
Code
T048 A XX
Type
Non-polarised “T” joint
Material
Polycarbonate
+ 2 cover in PMMA
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
Snap-in fixing
Insulation class
III
Voltage
connection
15 A max · 48 VDC
Note
Used to connect three
tracks joined with a “T”
junction and to garantee
that current reaches
the corners.
Light points cannot be
installed in the corners.
TECHNICAL FEATURES
Code
T048 A XX
Type
Non-polarised “X” joint
Material
Polycarbonate
+ 3 cover in PMMA
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
Snap-in fixing
Insulation class
III
Voltage
connection
15 A max · 48 VDC
Note
Used to connect three
tracks joined with a “X”
junction and to garantee
that current reaches
the corners.
Light points cannot be
installed in the corners.
CODE COMPOSITION
T048 A 00024 00
KIT SOSPENSIONE
E GIUNZIONE
SUSPENSION
AND JUNCTION KIT
TECHNICAL FEATURES
Code
T048 A 00024 00
Type
Suspension
and junction kit
Material
Steel
Finishing
-
Fixing
-
Note
Kit composed of
metallic spherical rose,
steel cable Ø 1.5 mm
and automatic screw
coupling attached to the
bracket.
Cable length 3 m (on
request different lengths
are available).
Position the fixture kit
with an inter-axis of
450 mm for a max
capacity of 50 kg,
or 900 mm for max
25 kg.
92 |
www.buzzi-buzzi.it | 93
Indoor 48V Tracks
B55
92 |
www.buzzi-buzzi.it | 93
Indoor 48V Tracks
B55
B55 Components
