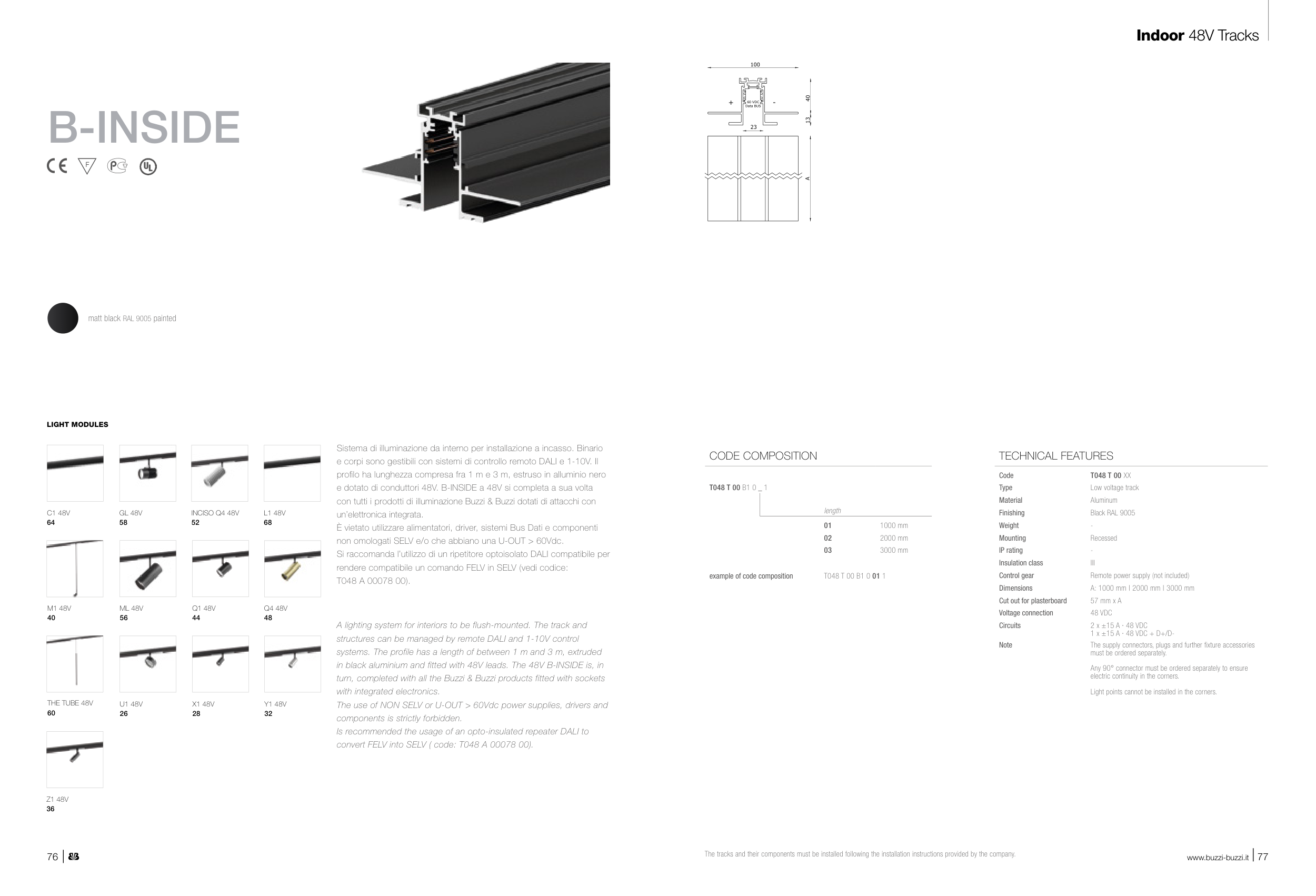

B-INSIDE
Sistema di illuminazione da interno per installazione a incasso. Binario
e corpi sono gestibili con sistemi di controllo remoto DALI e 1-10V. Il
profilo ha lunghezza compresa fra 1 m e 3 m, estruso in alluminio nero
e dotato di conduttori 48V. B-INSIDE a 48V si completa a sua volta
con tutti i prodotti di illuminazione Buzzi & Buzzi dotati di attacchi con
un’elettronica integrata.
È vietato utilizzare alimentatori, driver, sistemi Bus Dati e componenti
non omologati SELV e/o che abbiano una U-OUT > 60Vdc.
Si raccomanda l’utilizzo di un ripetitore optoisolato DALI compatibile per
rendere compatibile un comando FELV in SELV (vedi codice:
T048 A 00078 00).
A lighting system for interiors to be flush-mounted. The track and
structures can be managed by remote DALI and 1-10V control
systems. The profile has a length of between 1 m and 3 m, extruded
in black aluminium and fitted with 48V leads. The 48V B-INSIDE is, in
turn, completed with all the Buzzi & Buzzi products fitted with sockets
with integrated electronics.
The use of NON SELV or U-OUT > 60Vdc power supplies, drivers and
components is strictly forbidden.
Is recommended the usage of an opto-insulated repeater DALI to
convert FELV into SELV ( code: T048 A 00078 00).
CODE COMPOSITION
T048 T 00 B1 0 _ 1
length
01
1000 mm
02
2000 mm
03
3000 mm
example of code composition
T048 T 00 B1 0 01 1
TECHNICAL FEATURES
Code
T048 T 00 XX
Type
Low voltage track
Material
Aluminum
Finishing
Black RAL 9005
Weight
-
Mounting
Recessed
IP rating
-
Insulation class
III
Control gear
Remote power supply (not included)
Dimensions
A: 1000 mm | 2000 mm | 3000 mm
Cut out for plasterboard
57 mm x A
Voltage connection
48 VDC
Circuits
2 x ±15 A · 48 VDC
1 x ±15 A · 48 VDC + D+/D-
Note
The supply connectors, plugs and further fixture accessories
must be ordered separately.
Any 90° connector must be ordered separately to ensure
electric continuity in the corners.
Light points cannot be installed in the corners.
The tracks and their components must be installed following the installation instructions provided by the company.
LIGHT MODULES
matt black RAL 9005 painted
64
56
26
28
58
44
32
52
68
48
36
40
60
C1 48V
ML 48V
U1 48V
X1 48V
GL 48V
Q1 48V
Y1 48V
INCISO Q4 48V
L1 48V
Q4 48V
Z1 48V
M1 48V
THE TUBE 48V
+
-
60 VDC
Data BUS
