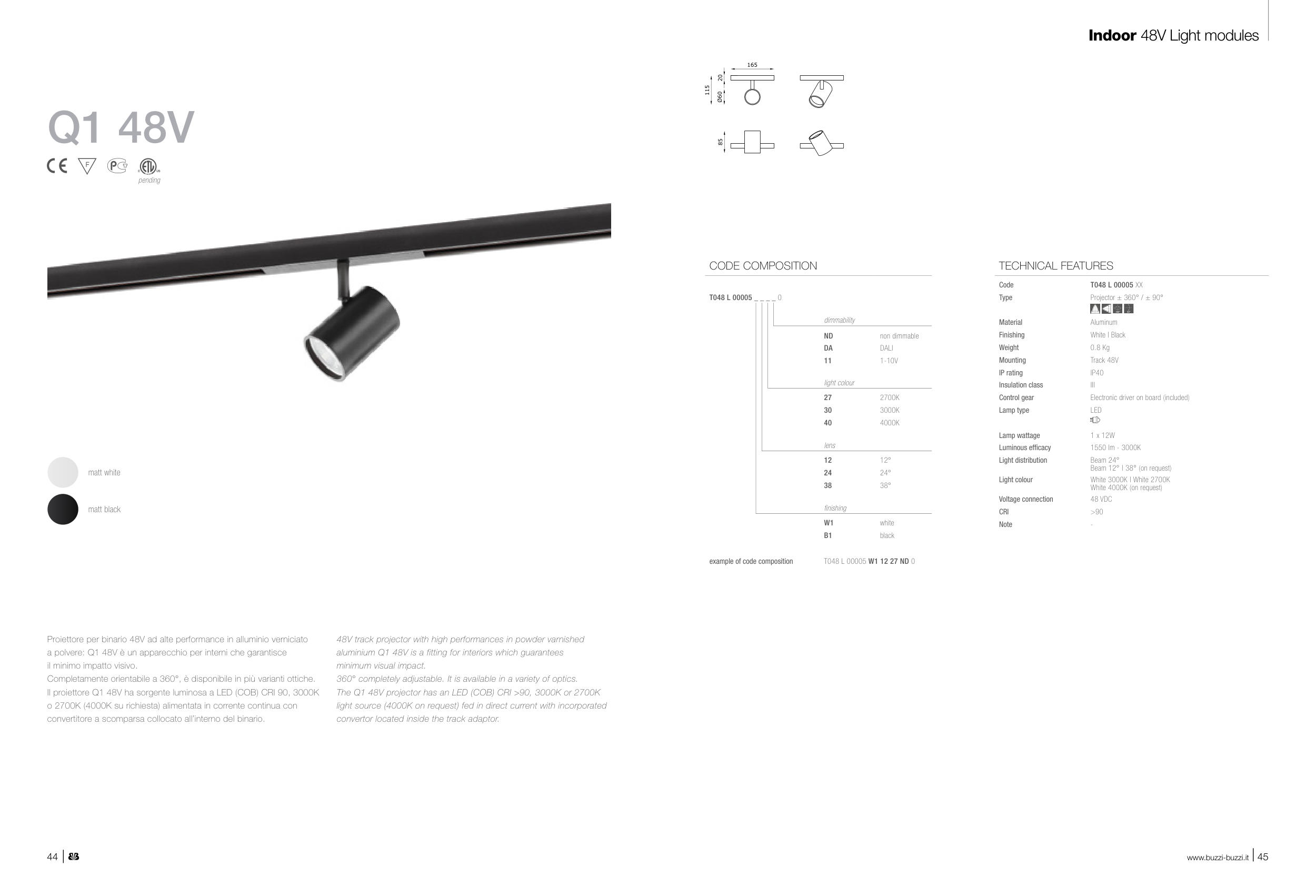

Q1 48V
Proiettore per binario 48V ad alte performance in alluminio verniciato
a polvere: Q1 48V è un apparecchio per interni che garantisce
il minimo impatto visivo.
Completamente orientabile a 360°, è disponibile in più varianti ottiche.
Il proiettore Q1 48V ha sorgente luminosa a LED (COB) CRI 90, 3000K
o 2700K (4000K su richiesta) alimentata in corrente continua con
convertitore a scomparsa collocato all’interno del binario.
48V track projector with high performances in powder varnished
aluminium Q1 48V is a fitting for interiors which guarantees
minimum visual impact.
360° completely adjustable. It is available in a variety of optics.
The Q1 48V projector has an LED (COB) CRI >90, 3000K or 2700K
light source (4000K on request) fed in direct current with incorporated
convertor located inside the track adaptor.
TECHNICAL FEATURES
Code
T048 L 00005 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black
Weight
0.8 Kg
Mounting
Track 48V
IP rating
IP40
Insulation class
III
Control gear
Electronic driver on board (included)
Lamp type
LED
Lamp wattage
1 x 12W
Luminous efficacy
1550 lm - 3000K
Light distribution
Beam 24°
Beam 12° | 38° (on request)
Light colour
White 3000K | White 2700K
White 4000K (on request)
Voltage connection
48 VDC
CRI
>90
Note
-
CODE COMPOSITION
T048 L 00005 _ _ _ _ 0
dimmability
ND
non dimmable
DA
DALI
11
1-10V
light colour
27
2700K
30
3000K
40
4000K
lens
12
12°
24
24°
38
38°
finishing
W1
white
B1
black
example of code composition
T048 L 00005 W1 12 27 ND 0
matt white
matt black
pending
