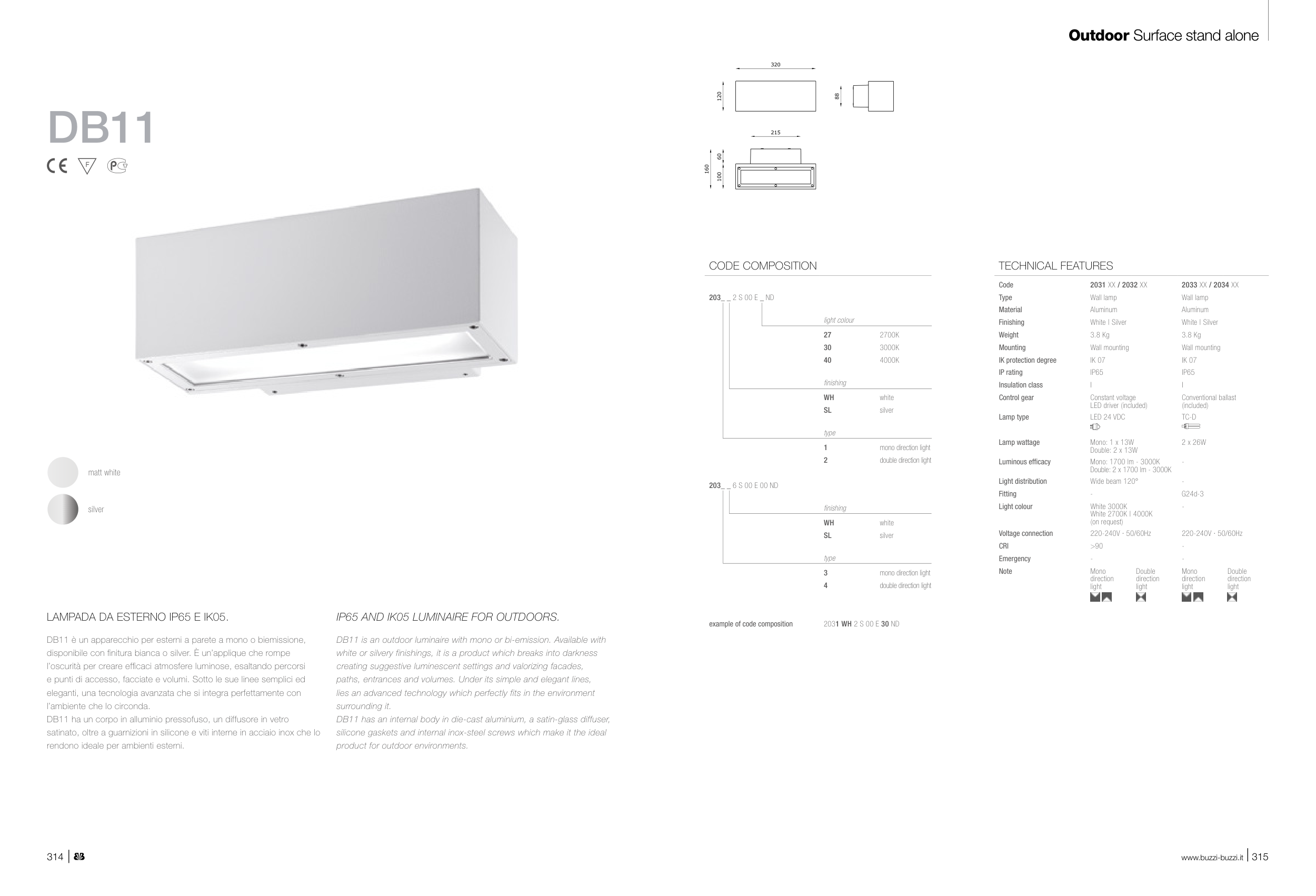

DB11
DB11 è un apparecchio per esterni a parete a mono o biemissione,
disponibile con finitura bianca o silver. È un’applique che rompe
l’oscurità per creare efficaci atmosfere luminose, esaltando percorsi
e punti di accesso, facciate e volumi. Sotto le sue linee semplici ed
eleganti, una tecnologia avanzata che si integra perfettamente con
l’ambiente che lo circonda.
DB11 ha un corpo in alluminio pressofuso, un diffusore in vetro
satinato, oltre a guarnizioni in silicone e viti interne in acciaio inox che lo
rendono ideale per ambienti esterni.
DB11 is an outdoor luminaire with mono or bi-emission. Available with
white or silvery finishings, it is a product which breaks into darkness
creating suggestive luminescent settings and valorizing facades,
paths, entrances and volumes. Under its simple and elegant lines,
lies an advanced technology which perfectly fits in the environment
surrounding it.
DB11 has an internal body in die-cast aluminium, a satin-glass diffuser,
silicone gaskets and internal inox-steel screws which make it the ideal
product for outdoor environments.
CODE COMPOSITION
203_ _ 2 S 00 E _ ND
light colour
27
2700K
30
3000K
40
4000K
finishing
WH
white
SL
silver
type
1
mono direction light
2
double direction light
203_ _ 6 S 00 E 00 ND
finishing
WH
white
SL
silver
type
3
mono direction light
4
double direction light
example of code composition
2031 WH 2 S 00 E 30 ND
TECHNICAL FEATURES
Code
2031 XX / 2032 XX
2033 XX / 2034 XX
Type
Wall lamp
Wall lamp
Material
Aluminum
Aluminum
Finishing
White | Silver
White | Silver
Weight
3.8 Kg
3.8 Kg
Mounting
Wall mounting
Wall mounting
IK protection degree
IK 07
IK 07
IP rating
IP65
IP65
Insulation class
I
I
Control gear
Constant voltage
LED driver (included)
Conventional ballast
(included)
Lamp type
LED 24 VDC
TC-D
Lamp wattage
Mono: 1 x 13W
Double: 2 x 13W
2 x 26W
Luminous efficacy
Mono: 1700 lm - 3000K
Double: 2 x 1700 lm - 3000K
-
Light distribution
Wide beam 120°
-
Fitting
-
G24d-3
Light colour
White 3000K
White 2700K | 4000K
(on request)
-
Voltage connection
220-240V · 50/60Hz
220-240V · 50/60Hz
CRI
>90
-
Emergency
-
-
Note
Mono
direction
light
Double
direction
light
Mono
direction
light
Double
direction
light
matt white
silver
LAMPADA DA ESTERNO IP65 E IK05.
IP65 AND IK05 LUMINAIRE FOR OUTDOORS.
314 |
www.buzzi-buzzi.it | 315
Outdoor Surface stand alone
